E 331523KVE (7800660) - Snapper 33" Rear-Engine Riding Mower, 15hp Wheels, Front & Rear Group Parts Diagram

33" Rear-Engine Riding Mower, 15hp

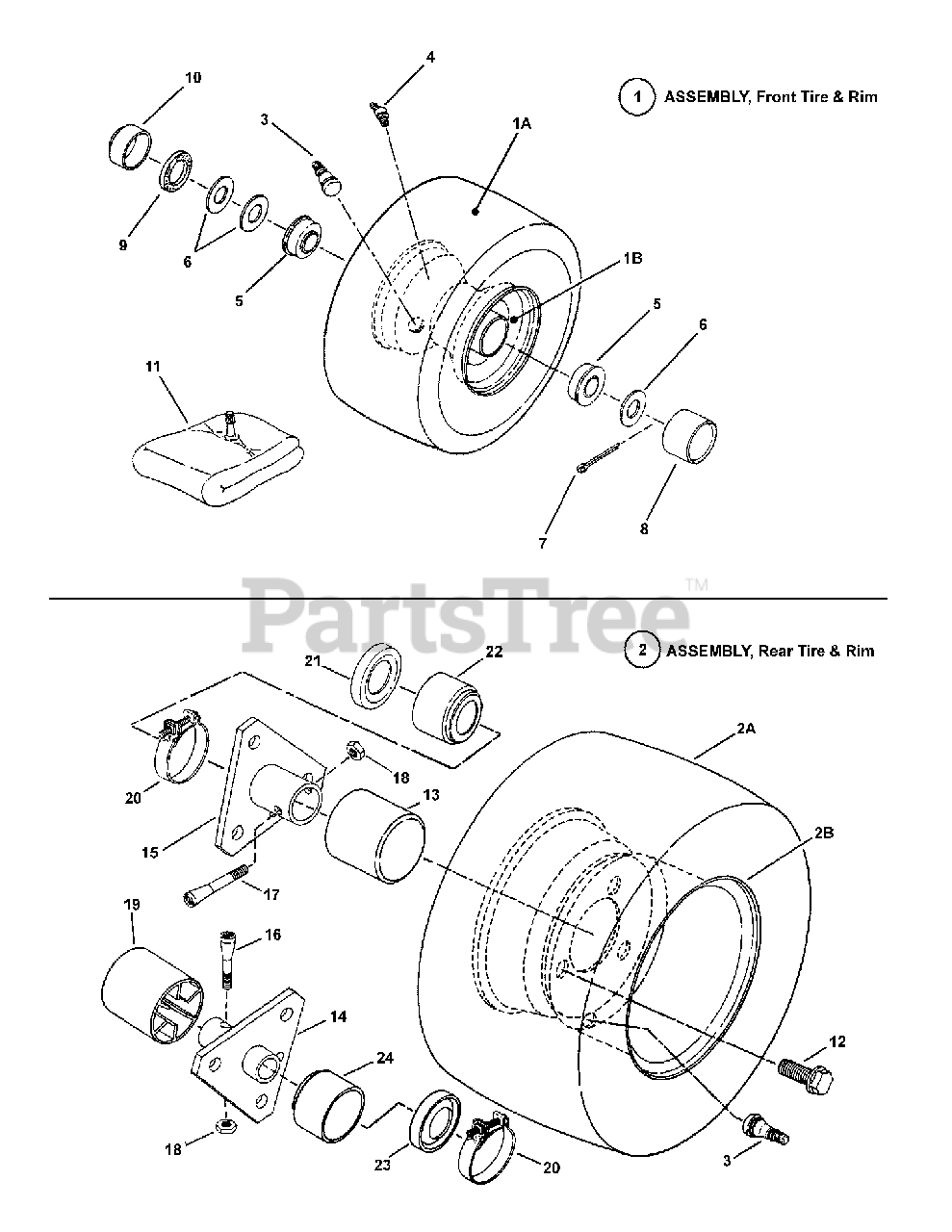

Wheels, Front & Rear Group Parts Diagram

  • Title

1

Snapper 7058943

ASSEMBLY, Front Tire & Rim (Complete)
(Superseded to 7058943YP)

Note: (Includes Items 1A, 1B, 3, 4, & 5)

$105.99

$

In Stock, only 2 left!

0

1A

Snapper 7073563

TIRE, 11 x 4.00-4 (Kenda)
(Superseded to 7073563YP)

$70.99

$

Usually ships in 2-12 days

0

1B

Snapper 7017146

RIM, (For 4.10/3.50 x 4 Tire)
(Superseded to 7058943YP)

$105.99

$

In Stock, only 2 left!

0

2

Snapper 7058951

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058951YP)

Note: (Includes Items 2A, 2B & 3)

$190.99

$

Usually ships in 2-12 days

0

2A

Snapper 7073584

TIRE, 16-6.50 x 8 (28" & 33" Models)
(Superseded to 7073584YP)

$175.99

$

Usually ships in 2-12 days

0

2B

Snapper 7017147

RIM, Extra Wide (For 16/7.50 x 8 Tire)
(Superseded to 7012163YP)

$125.99

$

In Stock, only 2 left!

0

3

Snapper 7012234

VALVE STEM, Snap In
(Superseded to 7012234SM)

$6.99

$

In Stock, Qty 8

0

4

Snapper 7014669

* LUBE Fitting, Straight (for 3/16" hole)
(Superseded to 7014669YP)

$4.49

$

In Stock, Qty 14

0

4

Snapper 7076998

* LUBE Fitting, Straight (for 1/4" hole)
(Superseded to 703153)

$3.99

$

In Stock, Qty 8

0

4

Snapper 7010909

* LUBE Fitting, 90 Degree, Ball Check (for 1/4" hole)
(Superseded to 7010909YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7104428

* LUBE Fitting, 90 Degree, Ball Check (for 5/16" hole)
(Superseded to 7104428YP)

$5.99

$

In Stock, Qty 7

0

5

Snapper 7011807

BALL BEARING, Flange (3/4" I.D.)
(Superseded to 7011807YP)

$7.99

$

In Stock, only 2 left!

0

6

Snapper 7010935

WASHER, .77 x 1.13 x .06 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7091516

COTTER PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7011022

HUB CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, only 3 left!

0

9

Snapper 7011032

FELT SEAL
(Superseded to 7011032YP)

$4.99

$

In Stock, Qty 11

0

10

Snapper 7031038

CAP, Dust
(Superseded to 7031038YP)

$4.99

$

In Stock, Qty 20+

0

11

Snapper 7010821

TUBE, Inner (For 4.10/3.50 x 4 Tire)
(Superseded to 7010821YP)

$19.99

$

In Stock, only 4 left!

0

12

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug, GR 5
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 7023895

HUB CAP, R.H. (1.35" ID x 2.25") (Short Axle)
(Superseded to 7023895YP)

$6.99

$

In Stock, only 3 left!

0

14

Snapper 7040434

HUB, Wheel LH, 3 Hole 3/4" ID
(Superseded to 7040434YP)

Note: (per left rear tire ass'y)

$

$

Not available

15

Snapper 7040433

HUB, Wheel RH, 3 Hole 1" ID
(Superseded to 7040433YP)

Note: (per right rear tire ass'y)

$38.99

$

In Stock, Qty 7

0

16

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered (Left Hand)
(Superseded to 7011035YP)

Note: (per left rear tire ass'y)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered (Right Hand)
(Superseded to 7011013YP)

Note: (per right rear tire ass'y)

$6.49

$

In Stock, Qty 20+

0

18

Snapper 7092062

NUT, Hex Lock 5/16F GR.C YZ
(Superseded to 703459)

Note: (was 7011201 (per rear tire ass'y))

$3.49

$

In Stock, Qty 20+

0

19

Snapper 7023522

HUB CAP, L. H. (.975" ID x 2.25") (Long Axle)
(Superseded to 7023522YP)

Note: (per left rear tire ass'y)

$6.49

$

In Stock, Qty 12

0

20

Snapper 7012332

CLAMP, Boot, 2"
(Superseded to 7012332YP)

Note: (used on older models)

$6.99

$

In Stock, Qty 20+

0

21

Snapper 7011817

SEAL, 1.22" ID x 1.875" OD
(Superseded to 7011817YP)

Note: (used on older models)

$5.49

$

In Stock, Qty 20+

0

22

Snapper 7031732

CAP, Seal 1.0" ID x 1.67" OD
(Superseded to 7031732YP)

Note: (used on older models)

$6.49

$

In Stock, Qty 20+

0

23

Snapper 7014662

SEAL, OIL .750" ID x 1.832" OD
(Superseded to 7014662YP)

Note: (used on older models)

$

$

Not available

24

Snapper 7014658

CAP, Seal 3/4" ID x 1.875" OD
(Superseded to 7014658YP)

Note: (used on older models)

$8.49

$

In Stock, Qty 20+

0
