E 898E (123E898E100) - Cub Cadet Walk-Behind Mower Engine (1993) B&S 5 HP Air Cleaner, Brake Ass'y, and Starter Switch Parts Diagram

Walk-Behind Mower Engine

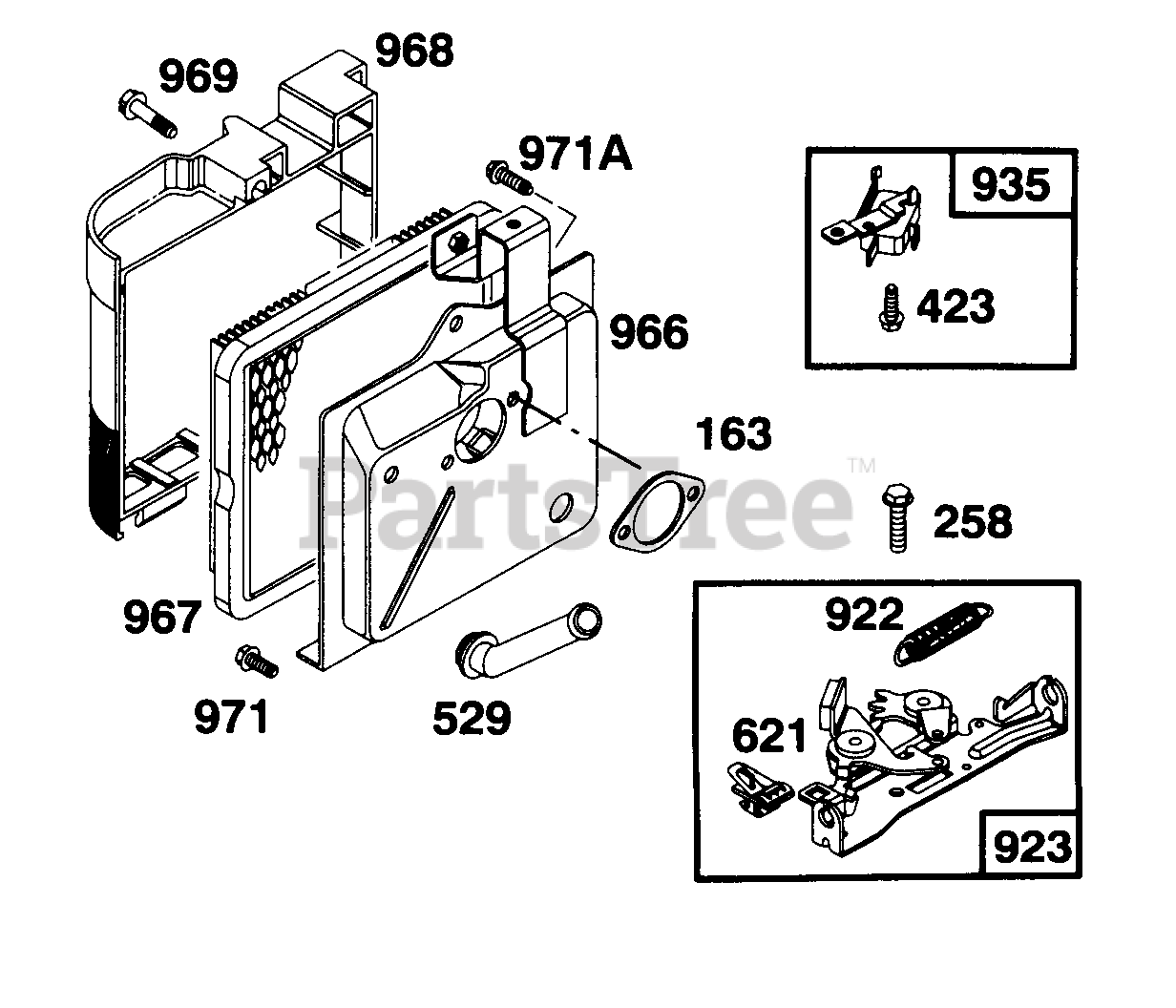

B&S 5 HP Air Cleaner, Brake Ass'y, and Starter Switch Parts Diagram

  • Title

163

Cub Cadet BS-272296

Gasket--Air Cleaner

$4.99

$

In Stock, only 3 left!

0

258

Cub Cadet BS-94512

Screw--Hex Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

423

Cub Cadet BS-93758

Screw--Hex Head

$

$

Not available

529

Cub Cadet BS-280943

Grommet--Breather

$8.49

$

In Stock, only 1 left!

0

621

Cub Cadet BS-396847

Switch--Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

922

Cub Cadet BS-262640

Spring--Brake
(Superseded to BS-691831)

$10.99

$

In Stock, only 2 left!

0

923

Cub Cadet BS-494216

Brake Assembly

$73.99

$

Usually ships in 2-12 days

0

935

Cub Cadet BS-398758

Switch--Starter

$

$

Not available

966

Cub Cadet BS-494735

Base--Air Cleaner

$

$

Not available

967

Cub Cadet BS-491588

Filter--Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-281288

Cover--Air Cleaner
(Superseded to BS-692298)

$27.99

$

Usually ships in 2-12 days

0

969

Cub Cadet BS-94173

Screw--Cover Mtg.
(Superseded to BS-690670)

$5.99

$

Usually ships in 2-12 days

0

971

Cub Cadet BS-94269

Screw--Air Cleaner

$

$

Not available

971A

Cub Cadet BS-94121

Screw--Base to Carb.
(Superseded to BS-692523)

$7.49

$

In Stock, Qty 10

0

Cub Cadet BS-493263

Gasket Set

$

$

Not available
