E 898O (124E898O100) - Cub Cadet Walk-Behind Mower Engine (1994) B&S 5 HP Engine Sump, Crankshaft, Governor Lever, Piston Ass'y Parts Diagram

Walk-Behind Mower Engine

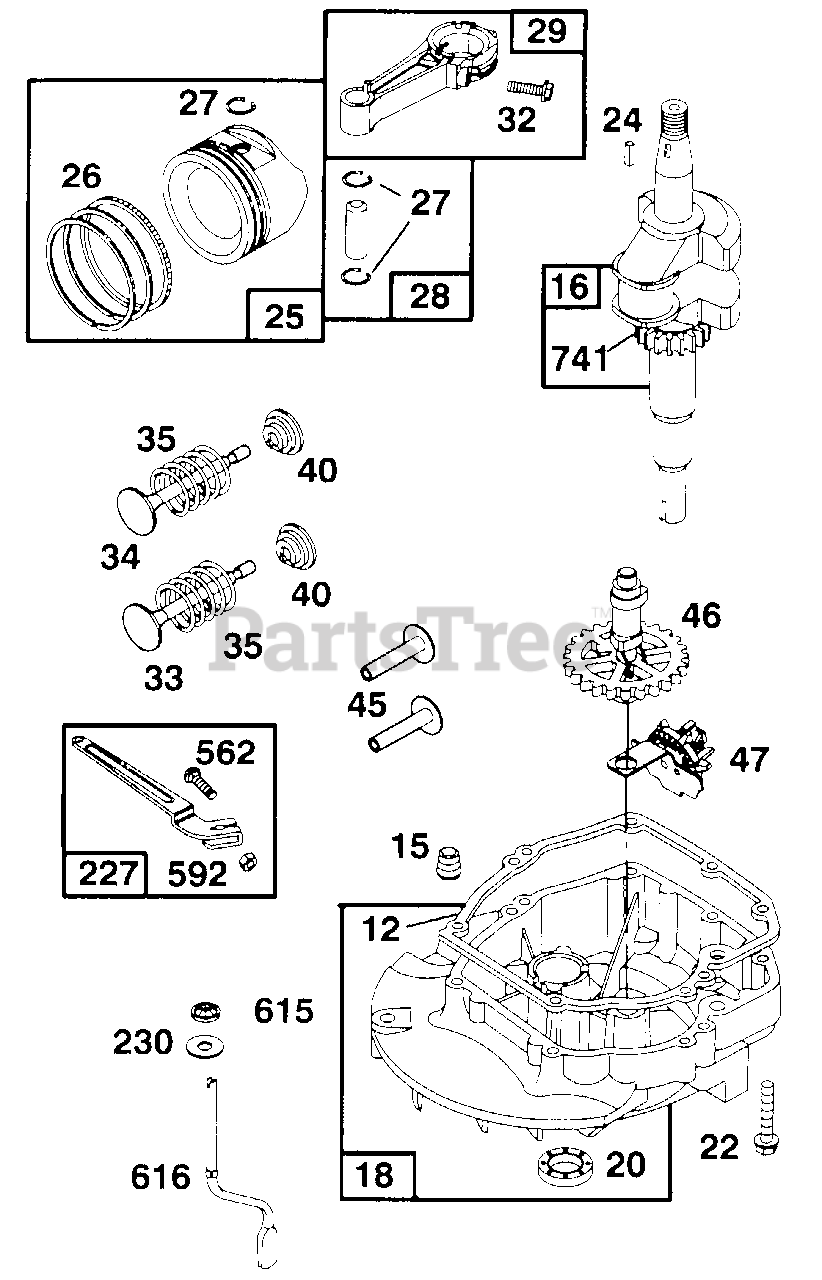

B&S 5 HP Engine Sump, Crankshaft, Governor Lever, Piston Ass'y Parts Diagram

  • Title

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

Note: Included in Gasket Set--Part No. BS-496117.

$6.49

$

In Stock, Qty 17

0

15

Cub Cadet BS-94720

Plug-Oil Drain
(Superseded to BS-691680)

$6.49

$

In Stock, only 3 left!

0

16

Cub Cadet BS-493433

Crankshaft

Note: For Timing Gear Key Order Part No. BS-94388.

$

$

Not available

18

Cub Cadet BS-493279

Sump-Engine

$120.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

Note: Included in Gasket Set--Part No. BS-496117.

$8.49

$

In Stock, Qty 13

0

22

Cub Cadet BS-94220

Screw-Hex. Head
(Superseded to BS-691092)

$4.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-94612

Screw-Hex. Hd.

Note: One Used in Hole Nearest Breather.

$

$

Currently unavailable

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-493262

Piston Assy. (Standard)

$

$

Not available

Cub Cadet BS-493385

Piston Assy. (.010" O.S.)

$

$

Not available

Cub Cadet BS-493386

Piston Assy. (.020" O.S.)

$

$

Not available

Cub Cadet BS-493387

Piston Assy. (.030" O.S.)

$

$

Not available

26

Cub Cadet BS-493261

Ring Set (Standard)

$

$

Not available

Cub Cadet BS-493388

Ring Set (.010" O.S.)

$

$

Not available

Cub Cadet BS-493389

Ring Set (.020" O.S.)

$

$

Not available

Cub Cadet BS-493390

Ring Set (.030" O.S.)

$

$

Not available

27

Cub Cadet BS-26026

Lock-Piston Pin

$

$

Not available

28

Cub Cadet BS-298909

Pin-Piston (Standard)

$9.99

$

In Stock, only 1 left!

0

Cub Cadet BS-298908

Pin-Piston (.005" O.S.)

$

$

Not available

29

Cub Cadet BS-490566

Rod-Connecting

$42.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-490743

Rod-Connecting (.020" Undersize).

$

$

Currently unavailable

32

Cub Cadet BS-94699

Screw-Connecting Rod

$

$

Not available

33

Cub Cadet BS-262651

Valve-Exhaust

$

$

Not available

34

Cub Cadet BS-262652

Valve-Intake

$

$

Not available

35

Cub Cadet BS-262224

Spring-Valve
(Superseded to BS-691270)

$5.99

$

In Stock, Qty 7

0

40

Cub Cadet BS-93312

Retainer-Valve Spring
(Superseded to BS-692194)

$6.49

$

In Stock, only 2 left!

0

45

Cub Cadet BS-262204

Tappet-Valve
(Superseded to BS-690548)

$10.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-492830

Gear-Cam

$80.99

$

In Stock, only 3 left!

0

47

Cub Cadet BS-493737

Slinger-Oil
(Superseded to BS-691997)

$28.99

$

In Stock, only 2 left!

0

227

Cub Cadet BS-492349

Lever-Governor
(Superseded to BS-690783)

$17.99

$

In Stock, only 3 left!

0

230

Cub Cadet BS-67072

Washer-Thrust
(Superseded to BS-690272)

$4.49

$

In Stock, only 3 left!

0

562

Cub Cadet BS-92613

Bolt-Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut-Hex.

$

$

Not available

615

Cub Cadet BS-94474

Fastener
(Superseded to BS-690340)

$4.99

$

In Stock, Qty 10

0

616

Cub Cadet BS-262578

Crank-Governor

$

$

Not available

741

Cub Cadet BS-262598

Gear-Timing
(Superseded to BS-691830)

$19.99

$

Usually ships in 2-12 days

0
