E 898O (125E898O100) - Cub Cadet Walk-Behind Mower Engine (1995) Rewind Starter, Flywheel And Housing Parts Diagram

Walk-Behind Mower Engine

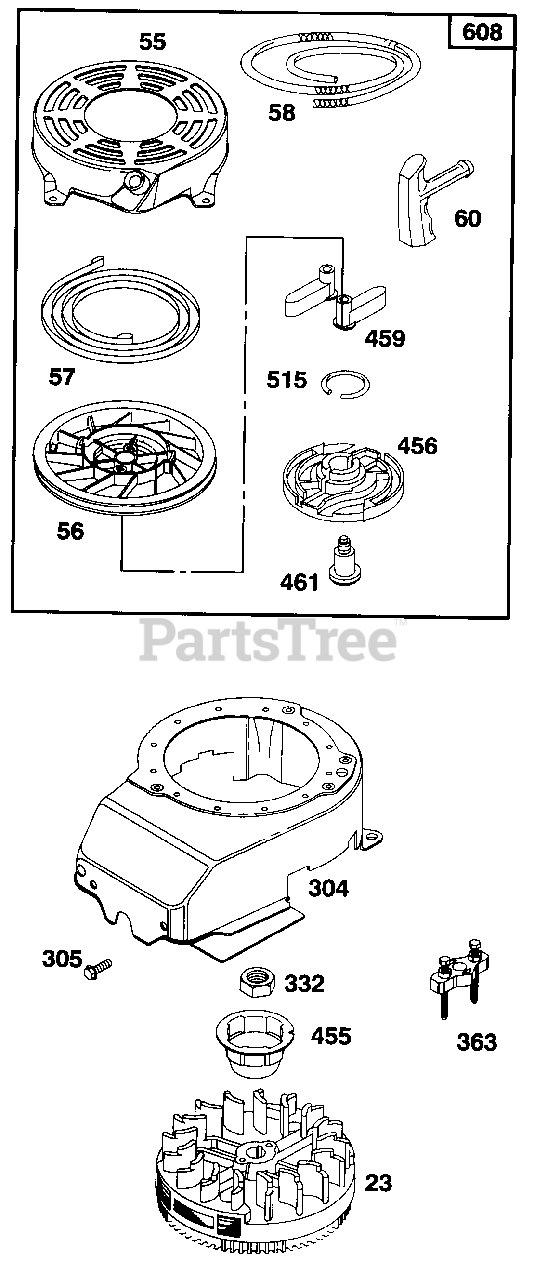

Rewind Starter, Flywheel And Housing Parts Diagram

  • Title

55

Cub Cadet BS-497440

Housing-Rewind Starter
(Superseded to BS-691421)

$64.99

$

In Stock, only 1 left!

0

56

Cub Cadet BS-281504

Pulley-Rewind Starter
(Superseded to BS-498144)

$19.99

$

In Stock, only 2 left!

0

57

Cub Cadet BS-263074

Spring-Rewind Starter
(Superseded to BS-498144)

$19.99

$

In Stock, only 2 left!

0

58

Cub Cadet BS-280399

Rope-Rewind Starter Cut to Required Length.
(Superseded to BS-280399S)

$5.99

$

In Stock, Qty 19

0

60

Cub Cadet BS-281434

Grip-Rewind Starter
(Superseded to BS-281434S)

$3.99

$

In Stock, Qty 10

0

456

Cub Cadet BS-281503

Retainer
(Superseded to BS-692299)

$4.99

$

In Stock, Qty 20+

0

459

Cub Cadet BS-281505

Pawl-Starter
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 20+

0

461

Cub Cadet BS-94943

Screw-Shoulder
(Superseded to BS-691696)

$11.99

$

In Stock, only 4 left!

0

515

Cub Cadet BS-263073

Spring-Retainer
(Superseded to BS-691855)

$4.49

$

In Stock, Qty 7

0

608

Cub Cadet BS-497680

Starter Assy.-Rewind

$49.99

$

In Stock, only 3 left!

0

23

Cub Cadet BS-492175

Flywheel

$

$

Not available

304

Cub Cadet BS-493293

Housing-Blower
(Superseded to BS-795071)

$102.99

$

In Stock, only 4 left!

0

305

Cub Cadet BS-94786

Screw-Sem
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

332

Cub Cadet BS-92284

Nut-Flywheel
(Superseded to 712-3056)

$4.99

$

In Stock, Qty 7

0

363

Cub Cadet BS-19069

Puller-Flywheel

$23.99

$

In Stock, only 2 left!

0

455

Cub Cadet BS-225121

Cup-Starter
(Superseded to BS-695161)

$37.99

$

Usually ships in 2-12 days

0
