E1500 A (E1500) - Honda Generator, Made in Japan (SN: E1500-0123001 - E1500-1171000) E1500 CONTROL BOX Parts Diagram

Generator, Made in Japan

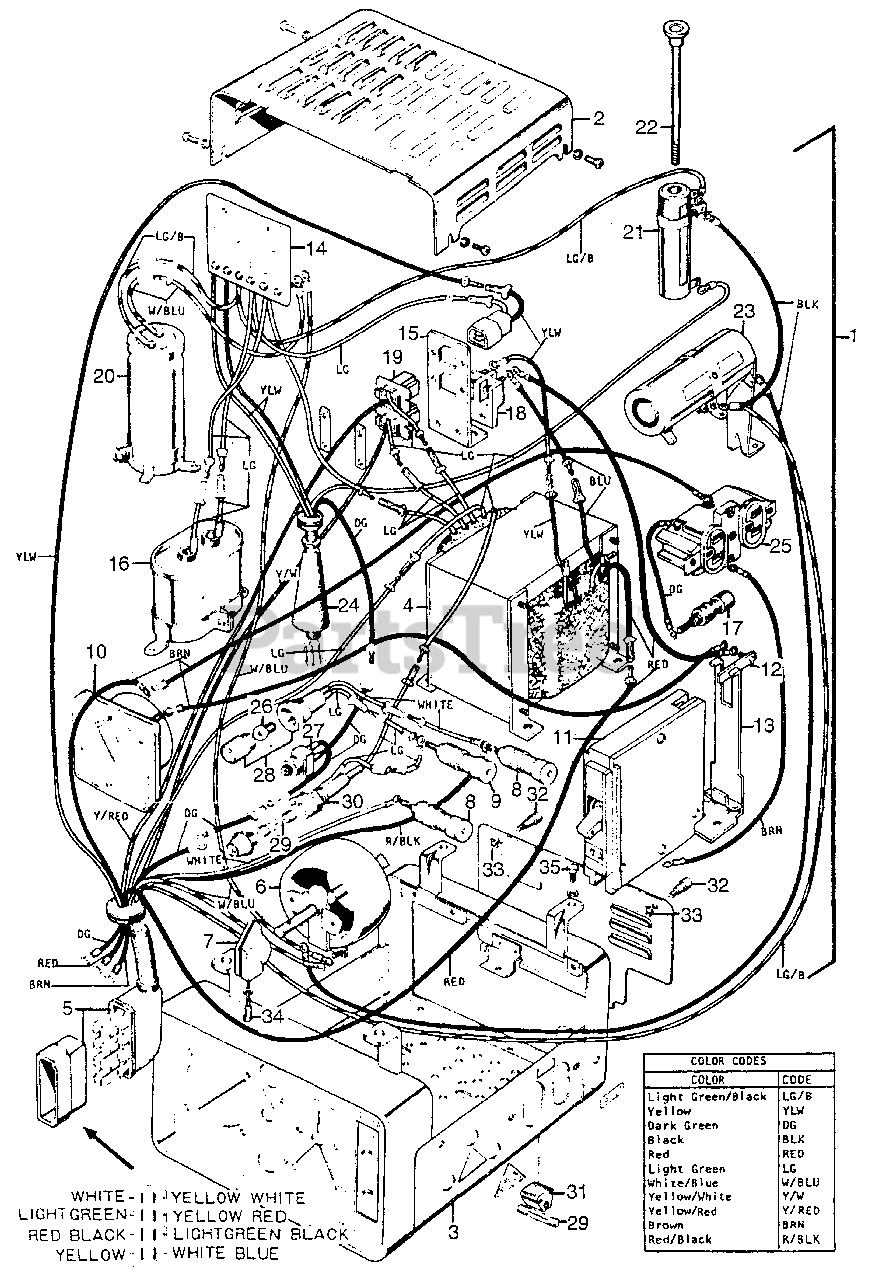

E1500 CONTROL BOX Parts Diagram

  • Title

1

Honda 31400-839-672C

BOX ASSY., CONTROL *R2L* (SCARLET)

$

$

Not available

2

Honda 31401-839-158C

COVER, CONTROL BOX (UPPER) *R2L* (SCARLET)

$

$

Not available

3

Honda 31402-839-159C

COVER, CONTROL BOX (LOWER) *R2L* (SCARLET)

$

$

Not available

4

Honda 31403-839-671

TRANSFORMER ASSY., CURRENT

$

$

Not available

5

Honda 31404-839-168

WIRE HARNESS ASSY. (8P)

$

$

Not available

6

Honda 31406-839-158

RESISTOR, VARIABLE

$

$

Not available

7

Honda 31407-815-158

KNOB, ADJUSTING

$

$

Not available

8

Honda 31408-880-000

TERMINAL, D.C. OUTPUT (+)

$43.99

$

Usually ships in 3-6 days

0

9

Honda 31409-880-000

TERMINAL, D.C. OUTPUT (-)

$43.99

$

Usually ships in 3-6 days

0

10

Honda 31411-840-158

VOLTMETER ASSY. (150V SCALE)
(Superseded to 37450-898-000)

$217.99

$

Usually ships in 3-6 days

0

10

Honda 37450-898-000

VOLTMETER ASSY.

$217.99

$

Usually ships in 3-6 days

0

11

Honda 31430-899-630

BREAKER, CIRCUIT (12.5A) (NOT AVAILABLE)

$

$

Not available

12

Honda 31414-815-168

TERMINAL, BREAKER

$

$

Not available

13

Honda 31415-815-168

SUPPORT, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 31417-839-159

STACK ASSY., DIODE (NOT AVAILABLE)

$

$

Not available

15

Honda 31425-839-168

PLATE, CONNECTOR

$

$

Not available

16

Honda 31426-839-168

CONDENSER ASSY., B

$

$

Not available

17

Honda 31428-880-000

TERMINAL ASSY., GROUND (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 31430-839-159

TERMINAL ASSY., FREQUENCY

$

$

Not available

19

Honda 31431-839-158

CONNECTOR, FREQUENCY CHANGE (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 31446-839-158

CONDENSER ASSY., A

$

$

Not available

21

Honda 31452-839-158

RESISTOR, ADJUST (NOT AVAILABLE)

$

$

Not available

22

Honda 31453-840-158

BOLT, RESISTOR SET

$

$

Not available

23

Honda 31455-839-158

RESISTOR SET

$

$

Not available

24

Honda 32121-839-158

WIRE HARNESS ASSY. (4P)

$

$

Not available

25

Honda 32333-880-680

RECEPTACLE (15A/125V)

$72.99

$

Usually ships in 3-6 days

0

26

Honda 34909-880-000

BULB, DASH (24V-2W)

$7.99

$

Usually ships in 3-6 days

0

27

Honda 36100-839-158

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 37561-839-158

SOCKET ASSY., PILOT LAMP

$

$

Not available

29

Honda 38201-815-605

FUSE (8A)

$4.99

$

Usually ships in 3-6 days

0

30

Honda 38211-815-168

HOLDER, FUSE (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 38221-815-168

SUPPORTER, SPARE FUSE

$

$

Not available

32

Honda 63581-801-000

LATCH, SIDE PLATE (NOT AVAILABLE)

$

$

Currently unavailable

33

Honda 63588-801-000

STOPPER, LATCH (NOT AVAILABLE)

$

$

Currently unavailable

34

Honda 90191-815-158

BOLT, KNOB

$

$

Not available

35

Honda 92101-05008-0A

BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0
