E1500 A (E1500) - Honda Generator, Made in Japan (SN: E1500-0123001 - E1500-1171000) E1500 FRAME Parts Diagram

Generator, Made in Japan

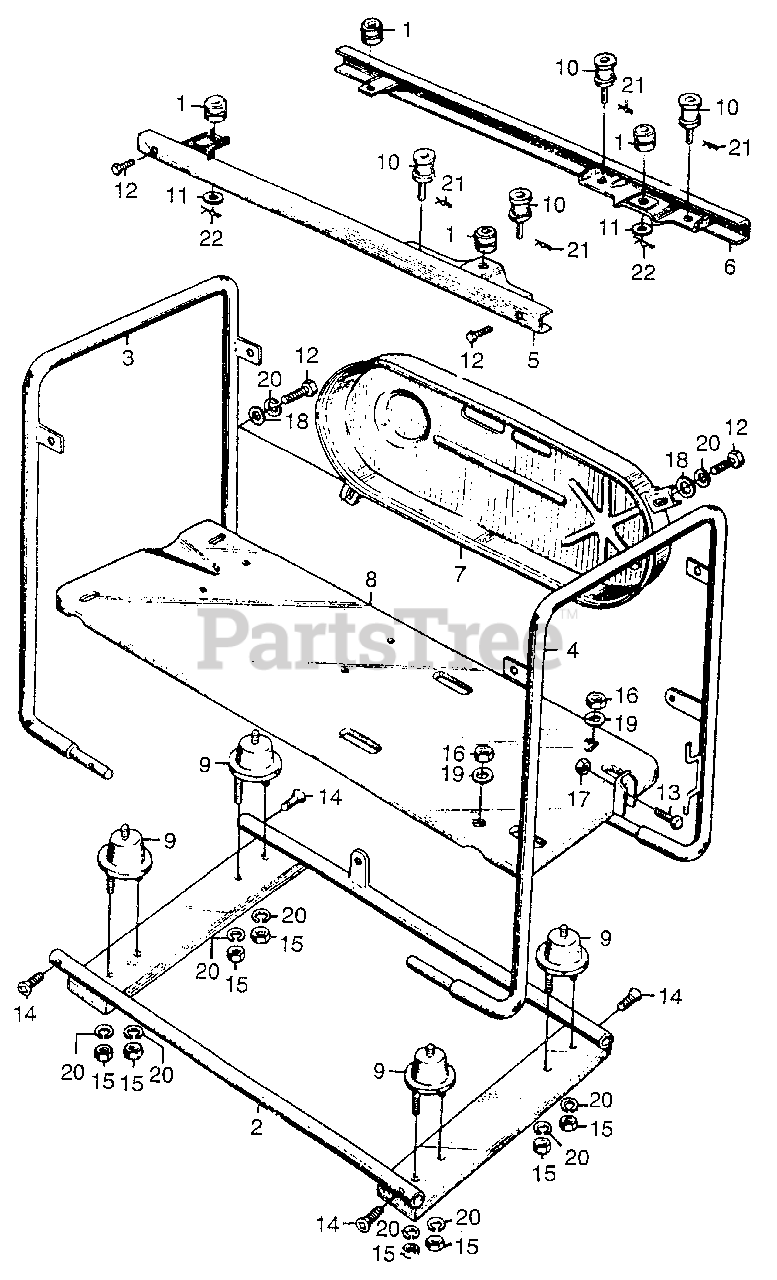

E1500 FRAME Parts Diagram

  • Title

1

Honda 17682-817-020

RUBBER, TANK CUSHION

$

$

Not available

2

Honda 50311-815-030

BED, FRAME

$

$

Not available

3

Honda 50312-815-020

FRAME, L.

$

$

Not available

4

Honda 50314-815-030

FRAME, R.

$

$

Not available

5

Honda 50315-839-000

FRAME, FR.

$

$

Not available

6

Honda 50316-839-000

FRAME, RR.

$

$

Not available

7

Honda 63610-815-020C

COVER, BELT *R2* (SCARLET)

$

$

Not available

8

Honda 68300-815-040

BED, ENGINE

$

$

Not available

9

Honda 68325-893-000

RUBBER, ENGINE SETTING

$

$

Not available

10

Honda 68330-815-010

RUBBER, CONTROL BOX SETTING (NOT AVAILABLE)

$

$

Not available

11

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

12

Honda 92101-06012

BOLT, HEX. (6X12)
(Superseded to 92101-06012-0A)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 92101-06012-0A

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 92032-08035

BOLT, HEX. (8X35)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 93700-08014-02

SCREW, OVAL (8X14) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

15

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

16

Honda 94030-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94031-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

19

Honda 94101-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94251-05000

PIN, LOCK (5MM)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0
