E1500 K2 A (E1500) - Honda Generator, Made in Japan (SN: E1500-1200001 - E1500-1221282) FAN COVER K1-K3 Parts Diagram

Generator, Made in Japan

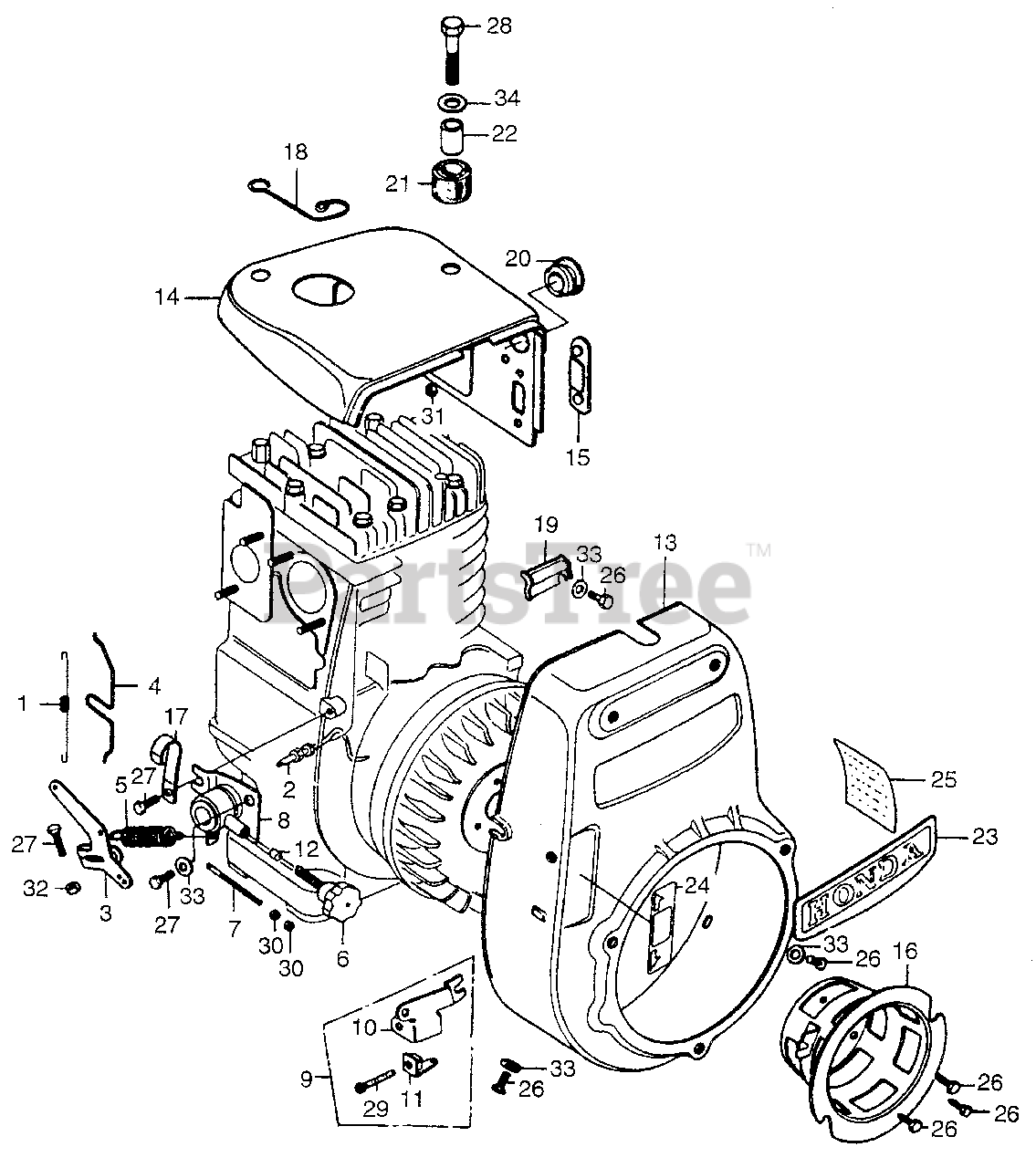

FAN COVER K1-K3 Parts Diagram

  • Title

1

Honda 16501-865-750

SPRING, THROTTLE RETURN (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16535-822-010

SHAFT, GOVERNOR ARM (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16541-822-000

ARM, GOVERNOR

$

$

Not available

4

Honda 16545-822-000

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Not available

5

Honda 16551-865-000

SPRING, GOVERNOR (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16561-865-000

SCREW, GOVERNOR ADJUST (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16564-822-020

BOLT, SPRING ADJUSTING (NOT AVAILABLE)

Note: Use from Engine SN 1007001.

$

$

Currently unavailable

8

Honda 16570-865-000

LEVER, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 16574-822-000

BUSHING, CONTROL

$

$

Not available

13

Honda 19600-865-010H

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 19611-865-632H

COVER SIDE *R8* (BRIGHT RED)

$

$

Not available

15

Honda 19901-807-000

DEFENDER, SIDE COVER

$

$

Not available

16

Honda 28430-865-660

PULLEY, STARTER (NOT AVAILABLE)

$

$

Not available

17

Honda 30564-848-000

CLAMP, WIRE

$

$

Not available

18

Honda 30564-865-630

CLAMP, IGNITION WIRE (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 50318-839-000

RUBBER, STOPPER (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 50319-839-000

COLLAR, DISTANCE

$3.99

$

Usually ships in 3-6 days

0

23

Honda 87101-865-000

EMBLEM (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 87531-865-660

PLATE, THROTTLE (NOT AVAILABLE)

$

$

Not available

25

Honda 87542-844-660

MARK, OIL CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 92101-06012

BOLT, HEX. (6X12)
(Superseded to 92101-06012-0A)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 92101-06012-0A

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 92101-06016-0A

BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

28

Honda 92101-08032-0B

BOLT, HEX. (8X32)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 94001-04000-0S

NUT, HEX. (4MM)

Note: Use from Engine SN 1000001.

$1.49

$

In Stock, only 1 left!

0

31

Honda 94001-05000-0S

NUT, HEX. (5MM)

Note: Use from Engine SN 1000001 to 1007000.

$2.49

$

Usually ships in 3-6 days

0

31

Honda 94001-05000-0S

NUT, HEX. (5MM)

Note: Use from Engine SN 1000001.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

32

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

33

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

34

Honda 94101-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0
