E1500 K2 A (E1500) - Honda Generator, Made in Japan (SN: E1500-1200001 - E1500-1221282) FUEL TANK Parts Diagram

Generator, Made in Japan

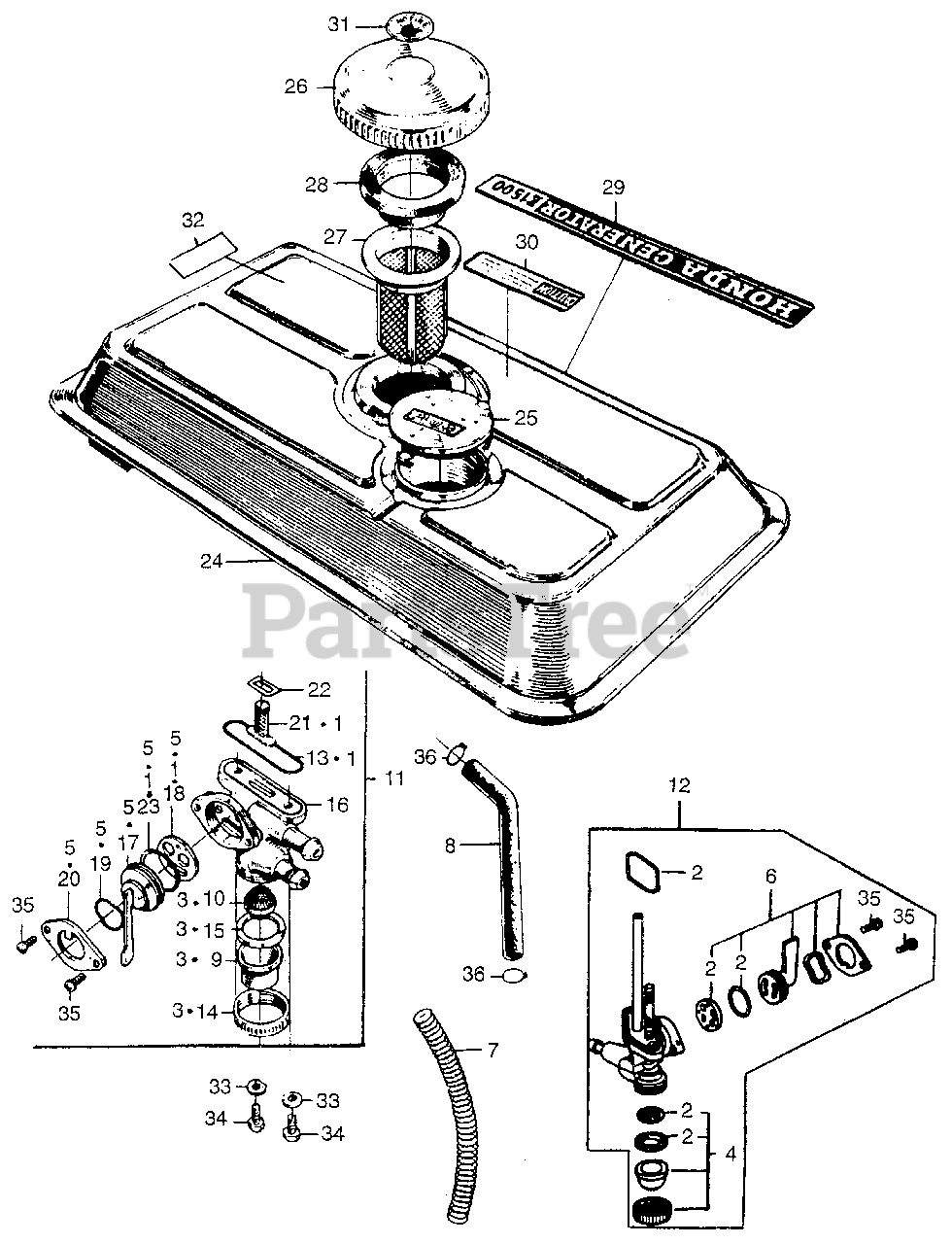

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-822-005

GASKET SET, VALVE

Note: Use from Frame SN 1076268.

$

$

Not available

3

Honda 16081-822-005

SEE PART DETAILS - SUP; CAP SET, STRAINER (ITEM #14 NOT INCLUDED. IT'S NO LONGER AVAILABLE.)

Note: Use from Frame SN 1076268.

$21.99

$

Usually ships in 3-6 days

0

5

Honda 16082-822-650

LEVER SET, VALVE (NOT AVAILABLE)

Note: Use from Frame SN 1076268.

$

$

Currently unavailable

7

Honda 16236-865-020

SPRING, FUEL TUBE (NOT AVAILABLE)

Note: Use from Frame SN 1076268.

$

$

Currently unavailable

8

Honda 17685-865-630

TUBE, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16921-815-004

BOWL, FUEL

$6.49

$

In Stock, only 1 left!

0

10

Honda 16931-822-004

ELEMENT (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 16950-822-005

PETCOCK ASSY. (NOT AVAILABLE)

$

$

Not available

13

Honda 16955-815-004

O-RING (NOT AVAILABLE)

$

$

Not available

14

Honda 16957-703-004

NUT, RING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 16958-703-007

GASKET, FUEL STRAINER CUP

$5.99

$

In Stock, Qty 8

0

16

Honda 16961-815-014

BODY, PETCOCK (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 16972-822-014

LEVER, PETCOCK (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

18

Honda 16973-815-014

GASKET, VALVE (NOT AVAILABLE)

$

$

Not available

19

Honda 16975-815-004

SPRING, LEVER (NOT AVAILABLE)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16978-815-004

PLATE, LEVER STOP (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

21

Honda 16981-822-305

FILTER, CHECK (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 16982-815-000

GASKET, FILTER (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

23

Honda 16983-815-000

O-RING (21MM)

$

$

Not available

24

Honda 17500-839-680XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 17617-843-780

COVER, PLUG *Y3L* (IVORY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 17650-805-750

CAP, FUEL TANK

$

$

Not available

27

Honda 17672-865-731

FILTER, FUEL

$

$

Not available

28

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

$

$

Not available

30

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

31

Honda 87523-812-680

MARK, TANK CAP CAUTION

$

$

Not available

33

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.49

$

In Stock, only 2 left!

0

34

Honda 92101-06016-0A

BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

35

Honda 93500-03006-0A

SCREW, PAN (3X6)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 90604-921-000

CLIP, TUBE (C11) (NOT AVAILABLE)

$1.49

$

Usually ships in 3-6 days

0
