E1500 K4 A (E1500) - Honda Generator, Made in Japan (SN: E1500-3000008 - E1500-9999999) CONTROL BOX ASSY. + ALTERNATOR ASSY. + BELT COVER Parts Diagram

Generator, Made in Japan

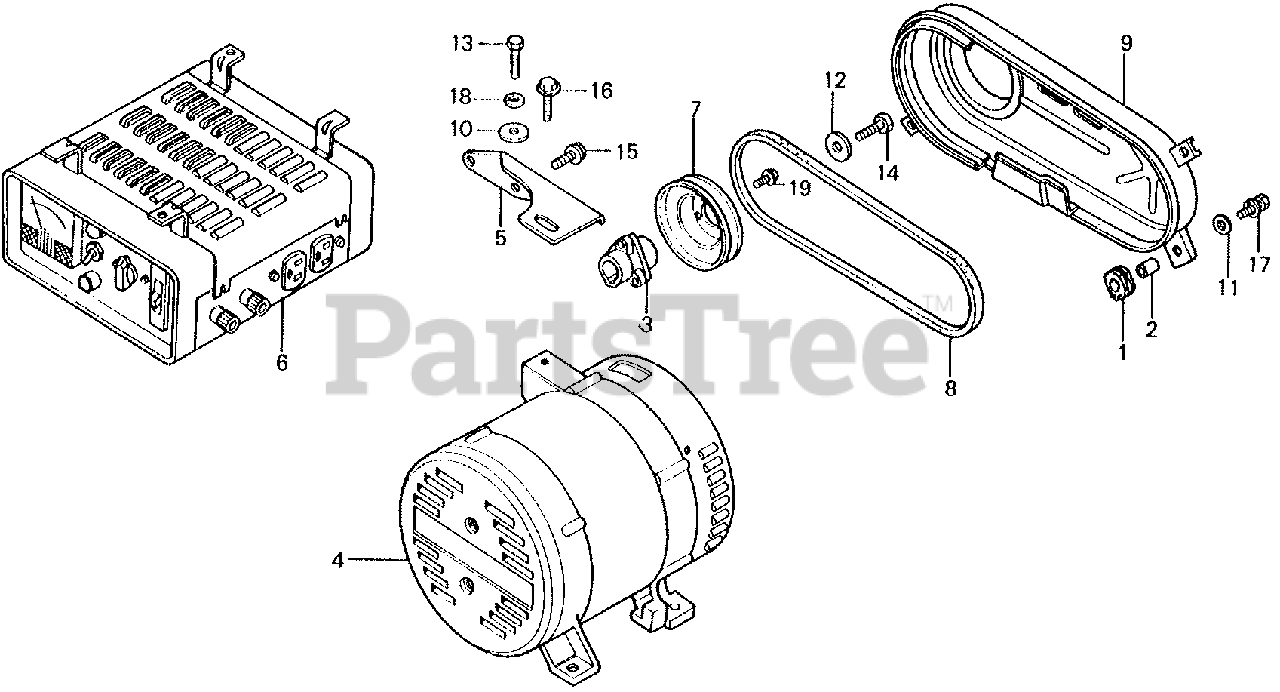

CONTROL BOX ASSY. + ALTERNATOR ASSY. + BELT COVER Parts Diagram

  • Title

1

Honda 17631-700-000

RUBBER, TANK CUSHION (NOT AVAILABLE)

$

$

Not available

2

Honda 17642-839-000

COLLAR, DISTANCE

$

$

Currently unavailable

3

Honda 22426-876-000

BOSS, DRIVE PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 31100-876-674ZA

ALTERNATOR ASSY. *R8/NH31/NH1* (BRIGHT RED/MC KINLEY WHITE/ BLACK)

$

$

Not available

5

Honda 31181-876-000

STAY, ALTERNATOR (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31400-876-673H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

7

Honda 49114-876-000

PULLEY, DRIVE (50HZ) (NOT AVAILABLE)

$38.99

$

Usually ships in 3-6 days

0

8

Honda 22433-762-003

SEE PART DETAILS - PRI; V-BELT (SB-30)

$

$

Not available

9

Honda 63610-876-010H

COVER, BELT *R8* (BRIGHT RED)

$

$

Not available

10

Honda 90430-657-000

WASHER (8MM)

Note: Use from Frame SN 3023208.

$10.99

$

In Stock, only 2 left!

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

12

Honda 90534-706-010

WASHER, LOCK (8MM)

$7.99

$

Usually ships in 3-6 days

0

13

Honda 92101-08022-0A

BOLT, HEX. (8X22)

Note: Use from Frame SN 3023208.

$

$

Currently unavailable

14

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, only 2 left!

0

15

Honda 93412-08016-08

BOLT-WASHER (8X16)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 93413-08020-00

BOLT-WASHER (8X20)
(Superseded to 93403-08020-00)

Note: Use up to Frame SN 3023207.

$

$

Not available

17

Honda 93402-06020-08

BOLT-WASHER (6X20)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 94111-08000

WASHER, SPRING (8MM)

Note: Use from Frame SN 3023208.

$1.49

$

Usually ships in 3-6 days

0

19

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 7

0
