E1500 K4 A (E1500) - Honda Generator, Made in Japan (SN: E1500-3000008 - E1500-9999999) FRAME + ENGINE BED Parts Diagram

Generator, Made in Japan

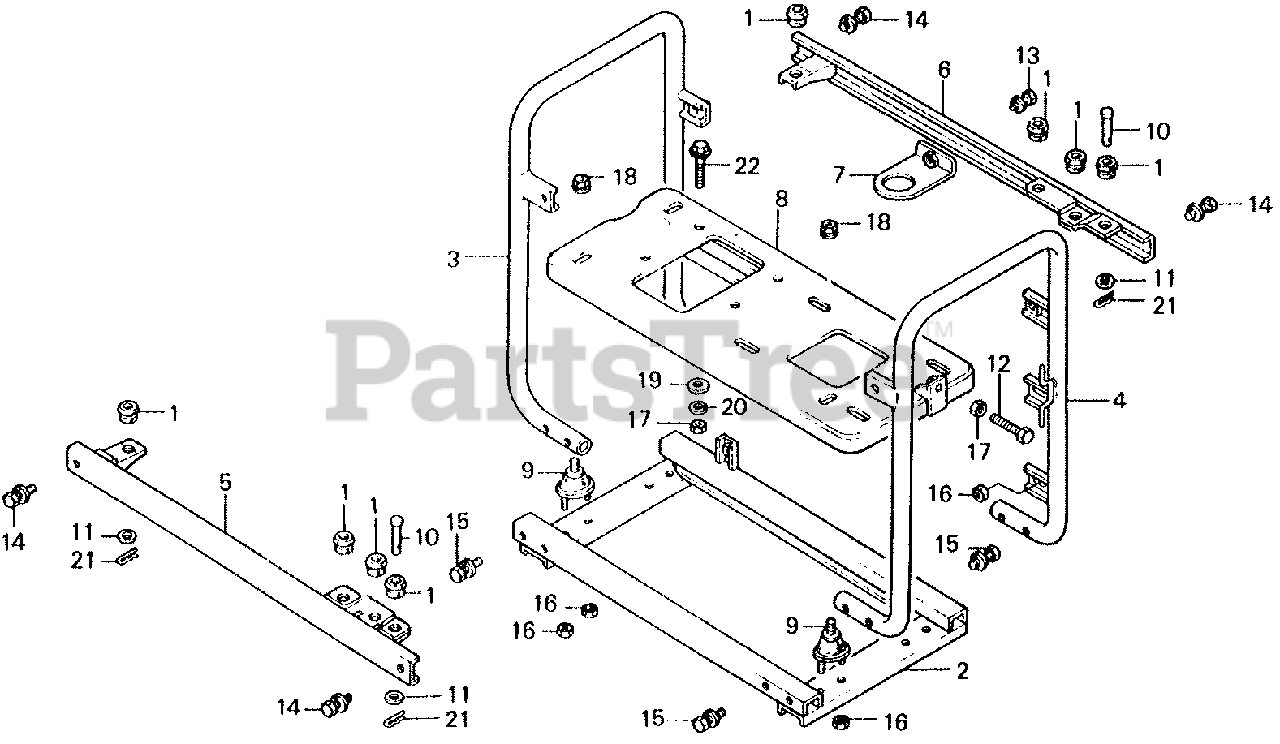

FRAME + ENGINE BED Parts Diagram

  • Title

1

Honda 17682-817-020

RUBBER, TANK CUSHION

$4.49

$

Usually ships in 3-6 days

0

2

Honda 50311-839-010

BED, FRAME

$

$

Not available

3

Honda 50312-876-000

FRAME, L. SIDE

$

$

Not available

4

Honda 50314-876-000

FRAME, R. SIDE

$

$

Not available

5

Honda 50315-876-000

FRAME, FR. (UPPER)

$

$

Not available

6

Honda 50316-876-010

FRAME, RR. (UPPER)

$

$

Not available

7

Honda 50317-876-010

STOPPER, ENGINE

$

$

Not available

8

Honda 68310-876-000

BED, ENGINE

$

$

Not available

9

Honda 68325-876-003

RUBBER (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 68331-876-000

PIN, CONTROL BOX SETTING

$5.99

$

In Stock, only 2 left!

0

11

Honda 91412-538-000

WASHER, FLAT (20MM)

$

$

Not available

12

Honda 92032-08040-0A

BOLT, HEX. (8X40)

$

$

Currently unavailable

13

Honda 93412-06012-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X12)
(Superseded to 93402-06012-08)

Note: Use up to Frame SN 3031967.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)
(Superseded to 95701-06012-08)

Note: Use from Frame SN 3031968.

$2.49

$

In Stock, Qty 20+

0

13

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Frame SN 3031968.

$2.49

$

In Stock, Qty 20+

0

14

Honda 93412-08016-08

BOLT-WASHER (8X16)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 93402-08020-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 93412-08020-00

SEE PART DETAILS - SUP; BOLT-WASHER (8X20)
(Superseded to 93402-08020-00)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 7

0

16

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 7

0

17

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 12

0

20

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0

22

Honda 95801-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$3.49

$

Usually ships in 3-6 days

0
