E1500 K4 A (E1500) - Honda Generator, Made in Japan (SN: E1500-3000008 - E1500-9999999) FUEL TANK + FUEL VALVE Parts Diagram

Generator, Made in Japan

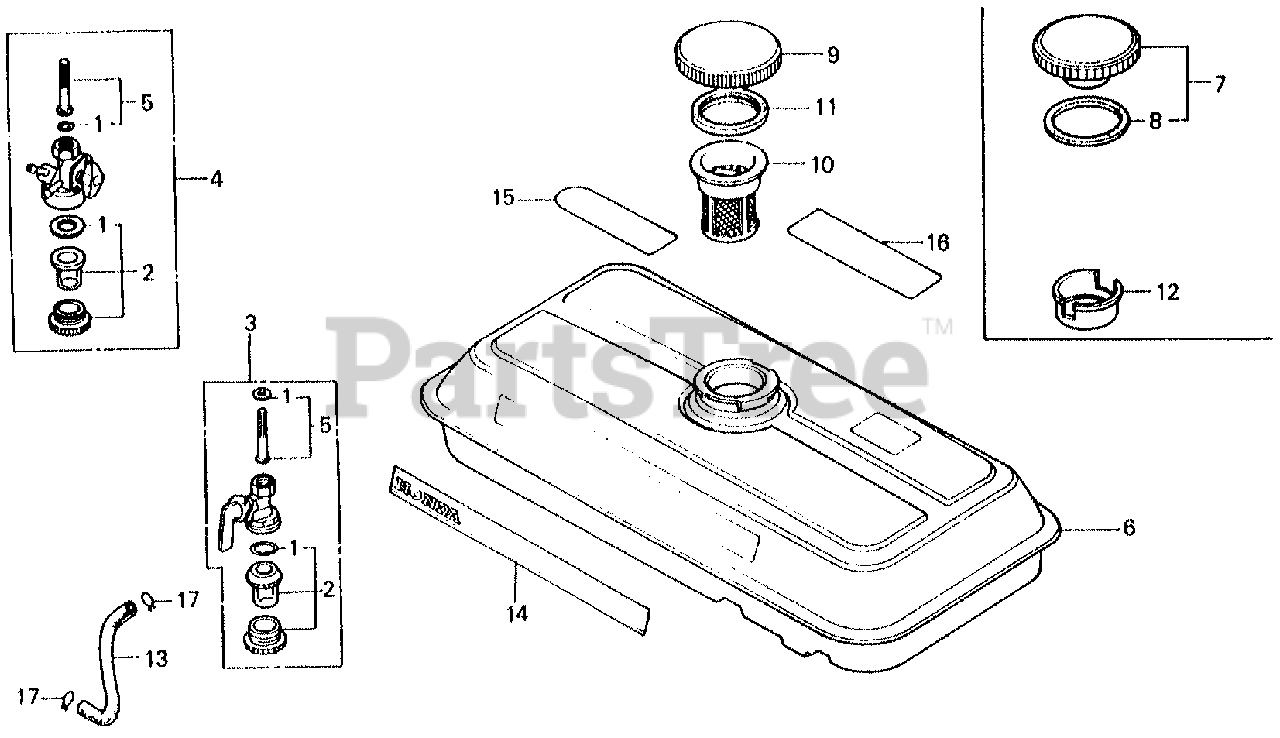

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, VALVE

$14.99

$

In Stock, only 2 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$33.99

$

In Stock, only 2 left!

0

3

Honda 16950-883-045

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

$64.99

$

In Stock, only 3 left!

0

4

Honda 16950-898-005

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

4

Honda 16950-898-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Currently unavailable

5

Honda 16952-883-005

SCREEN SET

$21.99

$

Usually ships in 3-6 days

0

6

Honda 17500-876-010XC

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use up to Frame SN 3031797.

$

$

Currently unavailable

6

Honda 17500-876-020XC

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Frame SN 3031798.

$

$

Currently unavailable

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Frame SN 3061628.

$

$

Not available

7

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use from Frame SN 3031798 to 3061627.

$22.99

$

Usually ships in 3-6 days

0

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

Note: Use from Frame SN 3031798.

$

$

Not available

9

Honda 17650-805-750

CAP, FUEL TANK (NOT AVAILABLE)

Note: Use up to Frame SN 3031797.

$

$

Not available

10

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

Note: Use up to Frame SN 3031797.

$

$

Not available

11

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

Note: Use up to Frame SN 3031797.

$

$

Not available

12

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use from Frame SN 3031798.

$16.99

$

In Stock, only 2 left!

0

13

Honda 17685-876-010

TUBE, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 87101-839-000

MARK, TOP

$

$

Not available

15

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

16

Honda 87561-880-600

MARK, CAUTION (CO)(ENGLISH/FRENCH)(SPANISH)

$6.49

$

In Stock, Qty 6

0

17

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0
