E1500 K4 A (E1500) - Honda Generator, Made in Japan (SN: E1500-3000008 - E1500-9999999) WIRE HARNESS + AUTOMATIC VOLT. REGULATOR Parts Diagram

Generator, Made in Japan

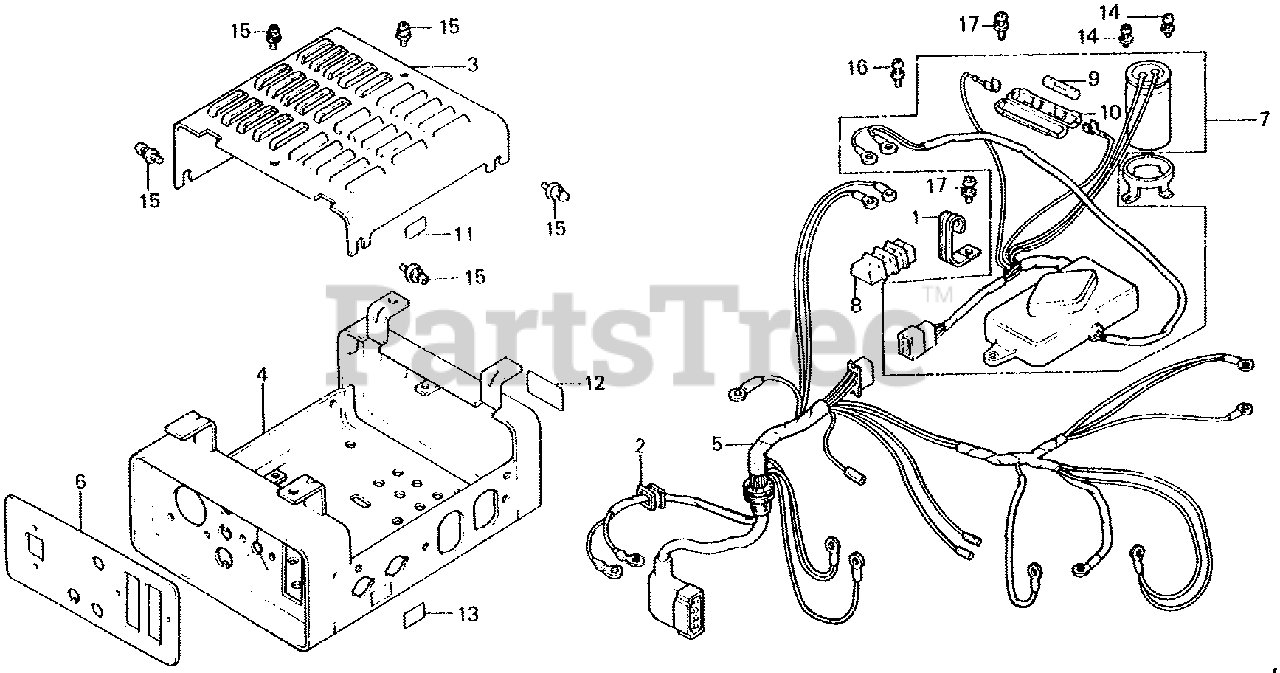

WIRE HARNESS + AUTOMATIC VOLT. REGULATOR Parts Diagram

  • Title

1

Honda 30564-876-003

CLAMP A, WIRE

$

$

Not available

2

Honda 31131-876-158

BUSH, RUBBER

$

$

Not available

3

Honda 31401-876-158H

COVER, CONTROL BOX (UPPER) *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31402-876-158H

COVER, CONTROL BOX (LOWER) *R8* (BRIGHT RED)

$

$

Not available

5

Honda 31404-876-158

WIRE HARNESS ASSY.

$

$

Not available

6

Honda 31405-876-601

PANEL, FR.

Note: Use from Frame SN 3057658.

$

$

Not available

7

Honda 31410-871-003

REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use from Frame SN 3010088 to 3031107.

$

$

Currently unavailable

7

Honda 31410-871-013

REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use from Frame SN 3031108.

$

$

Currently unavailable

7

Honda 31410-871-158

REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use up to Frame SN 3010087.

$

$

Currently unavailable

7

Honda 31410-871-305

REGULATOR ASSY., AUTOMATIC VOLTAGE

Note: Use up to Frame SN 3010087.

$

$

Currently unavailable

7

Honda 31410-871-315

REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)

Note: Use up to Frame SN 3031107.

$

$

Not available

8

Honda 31419-876-158

TERMINAL (2 POLE)

$

$

Not available

9

Honda 32342-871-000

FUSE (2.5A)

Note: Use from Frame SN 3031108.

$

$

Currently unavailable

10

Honda 38211-842-159

HOLDER, FUSE

Note: Use from Frame SN 3031108.

$

$

Not available

11

Honda 87524-839-670

MARK C, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 87534-880-000

SEE PART DETAILS - SUP; MARK, GROUND

$

$

Currently unavailable

13

Honda 87536-840-000

MARK B, D.C. OUTPUT

$

$

Currently unavailable

14

Honda 93892-04006-08

SCREW-WASHER (4X6)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 93893-04006-08

SCREW-WASHER (4X6)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93893-04016-08

SCREW-WASHER (4X16)

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93892-05010-08

SCREW-WASHER (5X10)

Note: Use up to Frame SN 3010087.

$1.49

$

Usually ships in 3-6 days

0

17

Honda 93893-05016-08

SCREW-WASHER (5X16)

Note: Use from Frame SN 3010088.

$1.49

$

Usually ships in 3-6 days

0
