E2-12KE01 (212-H) - Toro Garden Tractor (1989) SEAT AND SUSPENSION Parts Diagram

Garden Tractor

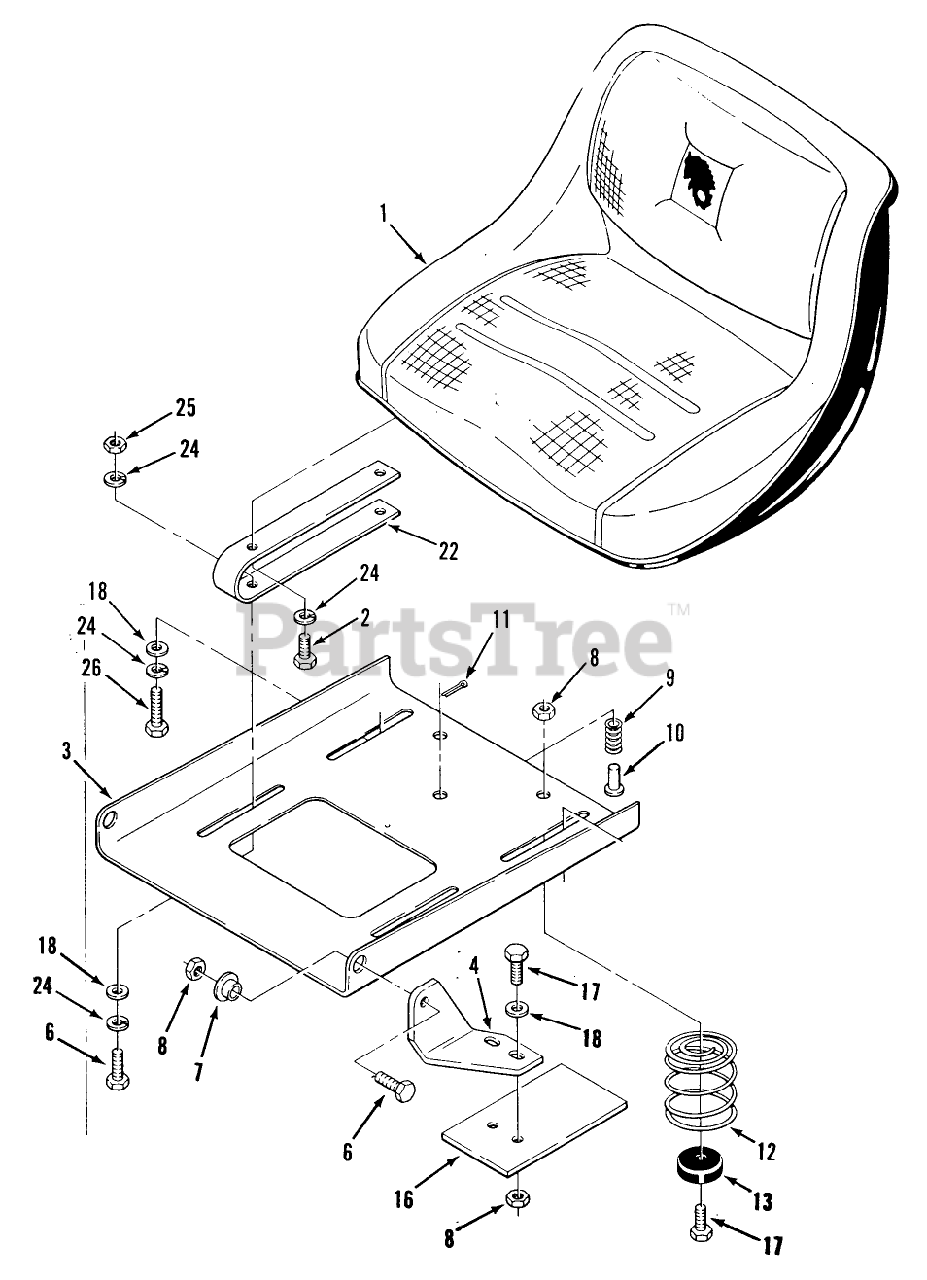

SEAT AND SUSPENSION Parts Diagram

  • Title

1

Toro 113986

Seat

$

$

Currently unavailable

Toro 114894

DISCONTINUED
(Superseded to 78-9160)

$

$

Not available

2

Toro 908017

See Supercession: 322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

3

Toro 113852

DISCONTINUED

$

$

Not available

4

Toro 112744

BRACKET-PIVOT R.H *B (NS)

$

$

Not available

Toro 112745

BRACKET-PIVOT L.H *B

$

$

Not available

6

Toro 908018

See Supercession: 322-4
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

7

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

8

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 114267

SPRING-SEAT SWITCH

$

$

Not available

10

Toro 106449

PIN

$8.49

$

Usually ships in 3-6 days

0

11

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

12

Toro 114268

DISCONTINUED

$

$

Not available

Toro 114269

See Supercession: 114497
(Superseded to 114497)

$68.99

$

Usually ships in 3-6 days

0

13

Toro 108889

BUMPER

$27.99

$

Usually ships in 3-6 days

0

16

Toro 112961

DISCONTINUED

$

$

Not available

17

Toro 908019

See Supercession: 322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

22

Toro 112837

DISCONTINUED

$

$

Not available

24

Toro 920082

See Supercession: 3253-4
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

25

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

26

Toro 908020

See Supercession: 322-6
(Superseded to 322-6)

$4.49

$

In Stock, Qty 17

0

Toro 114496

DISCONTINUED

$

$

Not available

Toro 144497

Nylon Spring 212-5 SB-Not illustrated

$

$

Currently unavailable

Toro 900214

See Supercession: 3230-23
(Superseded to 3230-23)

$1.49

$

In Stock, Qty 20+

0

Toro 920155

DISCONTINUED
(Superseded to 3254-23)

$

$

Not available
