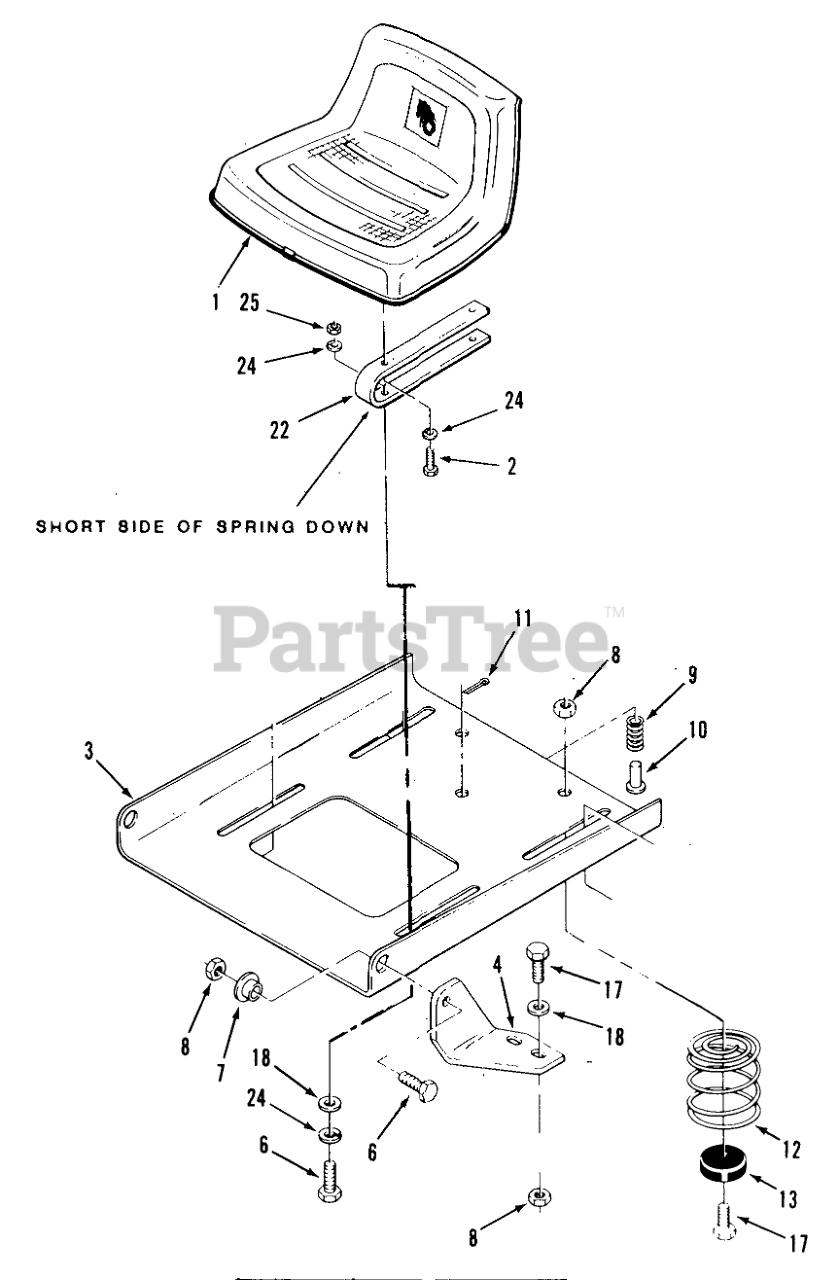

E2-17K502 (227-5) - Toro Garden Tractor (1989) SEAT AND SUSPENSION Parts Diagram

Garden Tractor

SEAT AND SUSPENSION Parts Diagram

  • Title

1

Toro 113986

Seat

$

$

Currently unavailable

2

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

3

Toro 112478

PLATE-SEAT PIVOT B

$

$

Not available

4

Toro 112745

BRACKET-PIVOT L.H B

$

$

Not available

Toro 112744

Bracket-Pivot RH

$

$

Not available

6

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

7

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

8

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

9

Toro 114267

SPRING-SEAT SWITCH

$

$

Not available

10

Toro 106449

PIN

$8.49

$

Usually ships in 3-6 days

0

11

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

12

Toro 114496

SPRING

$

$

Not available

Toro 114497

SPRING-SEAT NYLON

$65.99

$

Usually ships in 3-6 days

0

13

Toro 108889

BUMPER

$25.99

$

Usually ships in 3-6 days

0

17

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

22

Toro 110920

Seat Spring
(Superseded to 110920-03)

$206.99

$

Usually ships in 3-6 days

0

24

Toro 920082

Lockwasher
(Superseded to 325-34)

$4.49

$

In Stock, only 2 left!

0

25

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, only 2 left!

0
