E2500 K2 A (E2500) - Honda Generator, Made in Japan (SN: E2500-1100006 - E2500-9999999) CARBURETOR Parts Diagram

Generator, Made in Japan

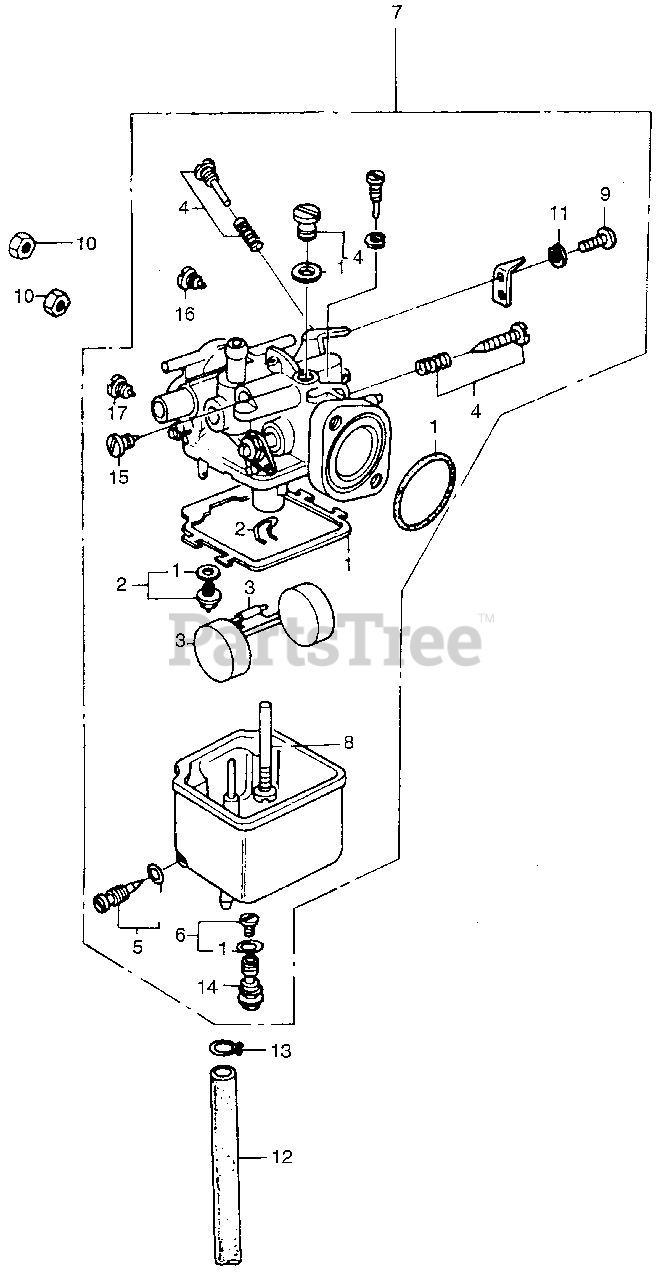

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-823-004

GASKET SET, CARBURETOR (NOT AVAILABLE)

$

$

Not available

2

Honda 16011-866-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$20.99

$

In Stock, only 1 left!

0

3

Honda 16013-862-004

FLOAT SET

$

$

Not available

4

Honda 16016-823-014

SCREW SET A (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16024-124-004

SCREW SET, DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16028-862-004

SCREW SET B (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16100-823-681

CARBURETOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16134-823-014

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 93500-03007-0A

SCREW, PAN (3X7) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

10

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

11

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, only 1 left!

0

12

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X240)

$29.99

$

In Stock, only 1 left!

0

13

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 6

0

14

Honda 99101-862-0950

JET, MAIN (#95) (STD) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 99104-862-0480

JET, PILOT (#48)

$

$

Currently unavailable

16

Honda 99105-862-1700

JET, MAIN AIR

$

$

Currently unavailable

17

Honda 99134-548-1250

JET, PILOT AIR

$

$

Currently unavailable
