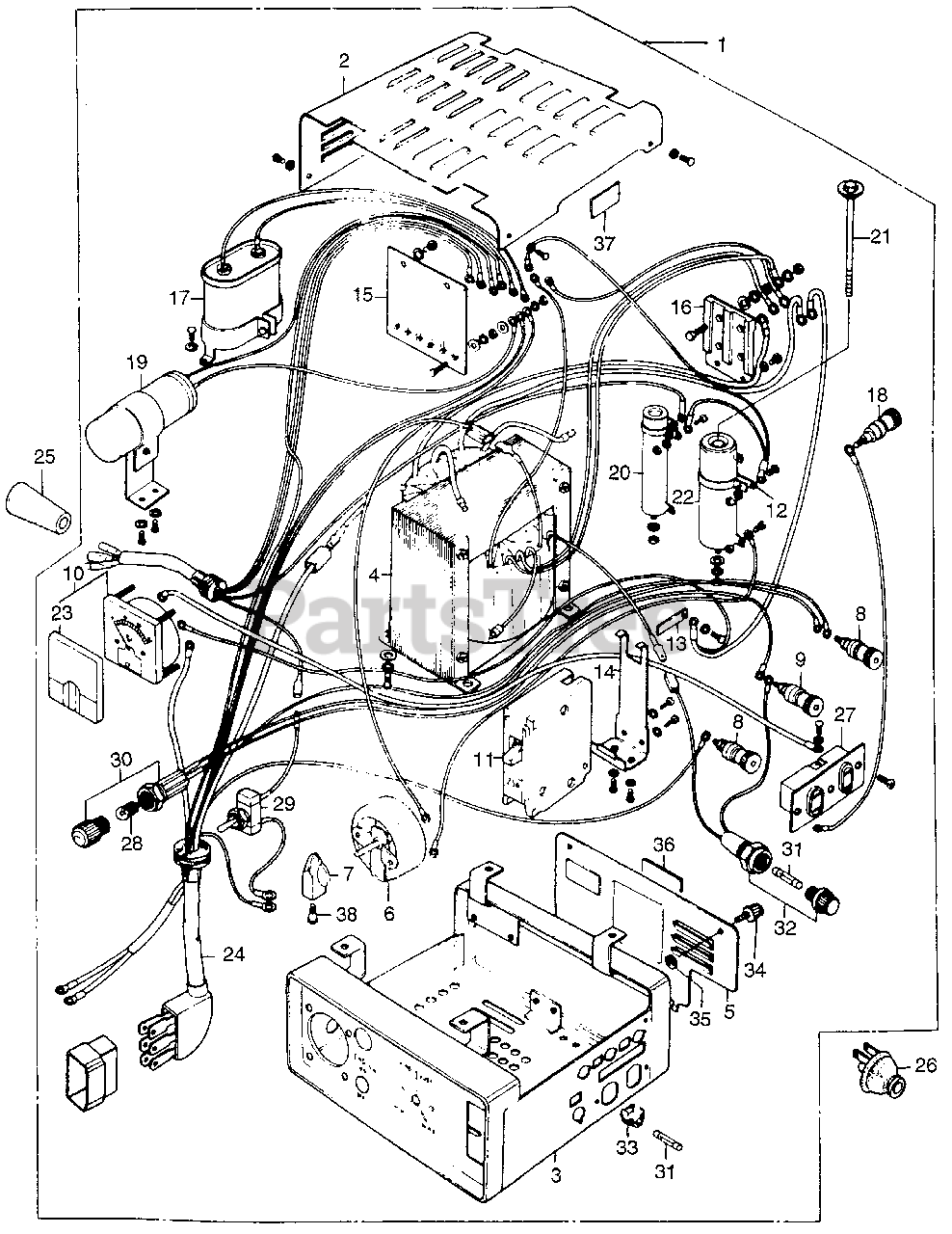

E2500 K2 A (E2500) - Honda Generator, Made in Japan (SN: E2500-1100006 - E2500-9999999) CONTROL BOX K2 Parts Diagram

Generator, Made in Japan

CONTROL BOX K2 Parts Diagram

  • Title

1

Honda 31400-840-674H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

2

Honda 31401-840-158C

COVER, CONTROL BOX (UPPER) *R2* (SCARLET)

$

$

Not available

3

Honda 31402-840-673

COVER, CONTROL BOX (LOWER)

$

$

Not available

4

Honda 31403-840-672

TRANSFORMER ASSY., CURRENT

$

$

Not available

5

Honda 31405-839-158

PANEL, RR. CONTROL BOX

$

$

Not available

6

Honda 31406-829-168

RESISTOR ASSY., VARIABLE (NOT AVAILABLE)

$201.99

$

Usually ships in 3-6 days

0

7

Honda 31407-815-158

KNOB, ADJUSTING

$

$

Not available

8

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$53.99

$

Usually ships in 3-6 days

0

9

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$53.99

$

Usually ships in 3-6 days

0

10

Honda 31411-840-158

SEE PART DETAILS - SUP; VOLTMETER ASSY. (150V SCALE)
(Superseded to 37450-898-000)

$270.99

$

Usually ships in 3-6 days

0

10

Honda 37450-898-000

SEE PART DETAILS - PRI; VOLTMETER ASSY.

$270.99

$

Usually ships in 3-6 days

0

11

Honda 31430-898-000

BREAKER, CIRCUIT (21A)

$

$

Currently unavailable

12

Honda 31413-839-158

PLATE, RESISTOR

$

$

Not available

13

Honda 31414-815-168

TERMINAL, BREAKER

$

$

Not available

14

Honda 31415-815-168

SUPPORT, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 31417-840-159

STACK ASSY., DIODE

$

$

Not available

16

Honda 31425-840-159

STACK ASSY., FREQUENCY CHANGE

$

$

Not available

17

Honda 31426-840-158

CONDENSER ASSY.

$

$

Not available

18

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 31446-840-158

CONDENSER ASSY.

$

$

Not available

20

Honda 31452-840-158

RESISTOR, ADJUSTABLE

$

$

Not available

21

Honda 31453-840-168

BOLT, RESISTOR SET

$

$

Not available

22

Honda 31455-840-158

RESISTOR SET

$

$

Not available

23

Honda 31499-839-158

LENS, METER (NOT AVAILABLE)

$

$

Currently unavailable

24

Honda 32110-840-168

WIRE HARNESS (6P)

$

$

Not available

25

Honda 32121-840-168

CONNECTOR ASSY. (OUTER) (4P)

$

$

Not available

26

Honda 32310-812-640

PLUG ASSY., RECEPTACLE

$8.99

$

Usually ships in 3-6 days

0

27

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$93.99

$

Usually ships in 3-6 days

0

28

Honda 34909-880-000

BULB (24V2W)

$9.99

$

Usually ships in 3-6 days

0

29

Honda 36100-840-158

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 37561-840-168

SOCKET ASSY., PILOT LAMP

$

$

Currently unavailable

31

Honda 38201-815-605

FUSE (8A)

$5.99

$

Usually ships in 3-6 days

0

32

Honda 38211-840-158

HOLDER ASSY., FUSE

$

$

Currently unavailable

33

Honda 38221-815-168

SUPPORTER, SPARE FUSE

$

$

Not available

34

Honda 63581-801-000

LATCH, SIDE PLATE

$

$

Currently unavailable

35

Honda 63588-801-000

STOPPER, LATCH (NOT AVAILABLE)

$

$

Currently unavailable

36

Honda 87521-839-680

PLATE, DESCRIPTION

$

$

Not available

37

Honda 87524-839-680

MARK C, CAUTION

$

$

Not available

38

Honda 31451-840-168

BOLT, ADJUSTABLE RESISTOR (NOT AVAILABLE)

$

$

Currently unavailable

38

Honda 90191-815-168

BOLT, KNOB (NOT AVAILABLE)

$

$

Currently unavailable
