E2500 K3 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2000093 - E2500-2043277) ALTERNATOR K3 Parts Diagram

Generator, Made in Japan

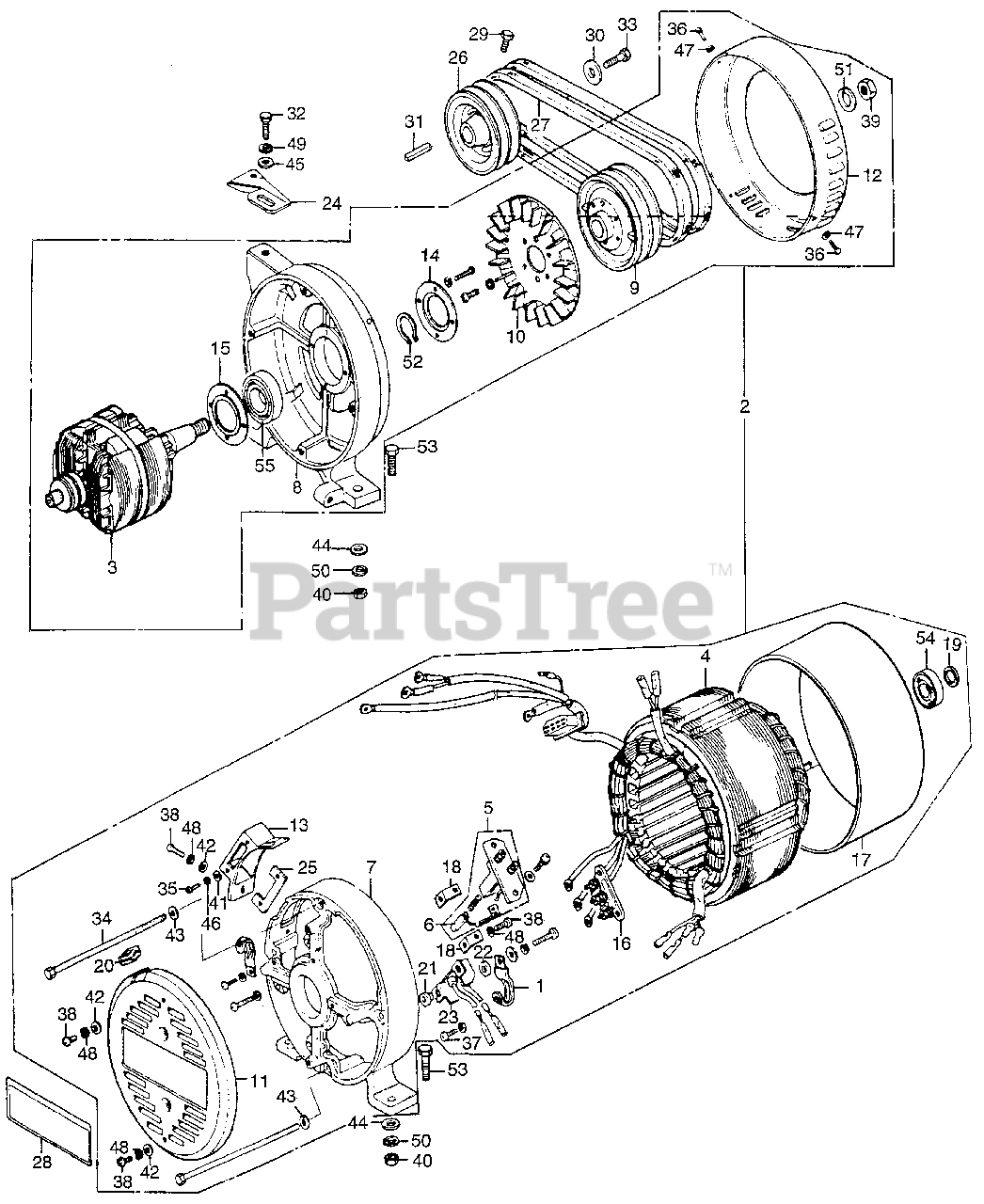

ALTERNATOR K3 Parts Diagram

  • Title

1

Honda 30564-871-601

CLAMP B, WIRE

$6.99

$

Usually ships in 3-6 days

0

2

Honda 31100-877-671SF

ALTERNATOR ASSY.

$

$

Not available

3

Honda 31104-877-003

ROTOR

$

$

Not available

4

Honda 31105-877-168

STATOR ASSY.

$

$

Not available

5

Honda 31106-815-169

HOLDER, BRUSH

$

$

Not available

6

Honda 31107-815-168

BRUSH, CARBON

$

$

Not available

7

Honda 31108-877-305XC

HOUSING, RR. *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$245.99

$

Usually ships in 3-6 days

0

8

Honda 31109-829-168XC

HOUSING, FR. *NH31* (MCKINLEY WHITE)

$

$

Not available

9

Honda 31111-815-178XC

PULLEY *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31112-839-158

FAN

$

$

Not available

11

Honda 31113-877-158H

COVER, GENERATOR *R8* (BRIGHT RED)

$

$

Currently unavailable

12

Honda 31114-829-158XC

COVER, FAN *NH31* (MCKINLEY WHITE)

$

$

Not available

13

Honda 31115-819-158XC

COVER, CONNECTOR *NH31* (MCKINLEY WHITE)

$

$

Not available

14

Honda 31116-815-168

COVER A, BEARING (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 31117-839-168

COVER B, BEARING

$

$

Not available

16

Honda 31119-876-158

TERMINAL, VOLT CHANGE

$

$

Not available

17

Honda 31127-877-158XC

COVER, STATOR *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 31129-815-168

STAY, BRUSH HOLDER

$

$

Not available

19

Honda 31131-815-158

WASHER, BEARING

$

$

Not available

20

Honda 31131-877-158

BUSH, RUBBER

$

$

Not available

21

Honda 31133-815-158

BUSH, INSULATING

$

$

Not available

22

Honda 31134-815-158

WASHER, INSULATING

$

$

Not available

23

Honda 31135-876-158

DIODE ASSY., D.C. (NOT AVAILABLE)

$

$

Not available

24

Honda 31181-829-010

STAY, ALTERNATOR (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 32101-839-168

PLATE, CONNECTOR SETTING

$

$

Not available

26

Honda 49114-815-613

V-PULLEY (60HZ) (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 49212-815-611

SEE PART DETAILS - PRI; V-BELT (A-31) (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 87551-877-670

PLATE, CAUTION

$

$

Not available

29

Honda 90029-805-810

BOLT B, KEY LOCK (7MM) (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.49

$

Usually ships in 3-6 days

0

31

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$8.99

$

Usually ships in 3-6 days

0

32

Honda 92101-08020-0A

BOLT, HEX. (8X20)

$1.99

$

Usually ships in 3-6 days

0

33

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 7

0

34

Honda 92020-06130-0H

BOLT, HEX. (6X130) (NOT AVAILABLE)

$

$

Currently unavailable

34

Honda 92020-06130-08

BOLT, HEX. (6X130)

$

$

Currently unavailable

35

Honda 93500-03010-0H

SCREW, PAN (3X10)

$0.99

$

Usually ships in 3-6 days

0

36

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 10

0

37

Honda 93500-04006-3J

SCREW, PAN (4X6)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93500-05010-0H

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

39

Honda 94001-18000-0S

NUT, HEX. (18MM) (NOT AVAILABLE)

$

$

Currently unavailable

40

Honda 94030-10000

NUT, HEX. (10MM)

$1.99

$

Usually ships in 3-6 days

0

41

Honda 94101-03800

WASHER, PLAIN (3MM)

$1.49

$

In Stock, only 4 left!

0

42

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

43

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

44

Honda 94101-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM)

$1.49

$

Usually ships in 3-6 days

0

45

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

46

Honda 94111-03800

WASHER, SPRING (3MM)

$0.99

$

Usually ships in 3-6 days

0

47

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

48

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0

49

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

50

Honda 94111-10000

WASHER, SPRING (8MM)

$1.99

$

Usually ships in 3-6 days

0

51

Honda 94111-18000

WASHER, SPRING (18MM) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

52

Honda 94514-25000

CIRCLIP (OUTER) (25MM)

$

$

Not available

53

Honda 95125-10032

BOLT, HEX. (10X32) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

54

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$21.99

$

In Stock, only 2 left!

0

55

Honda 96150-62050-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205UU)

$41.99

$

Usually ships in 3-6 days

0
