E2500 K3 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2000093 - E2500-2043277) CONTROL BOX K3 Parts Diagram

Generator, Made in Japan

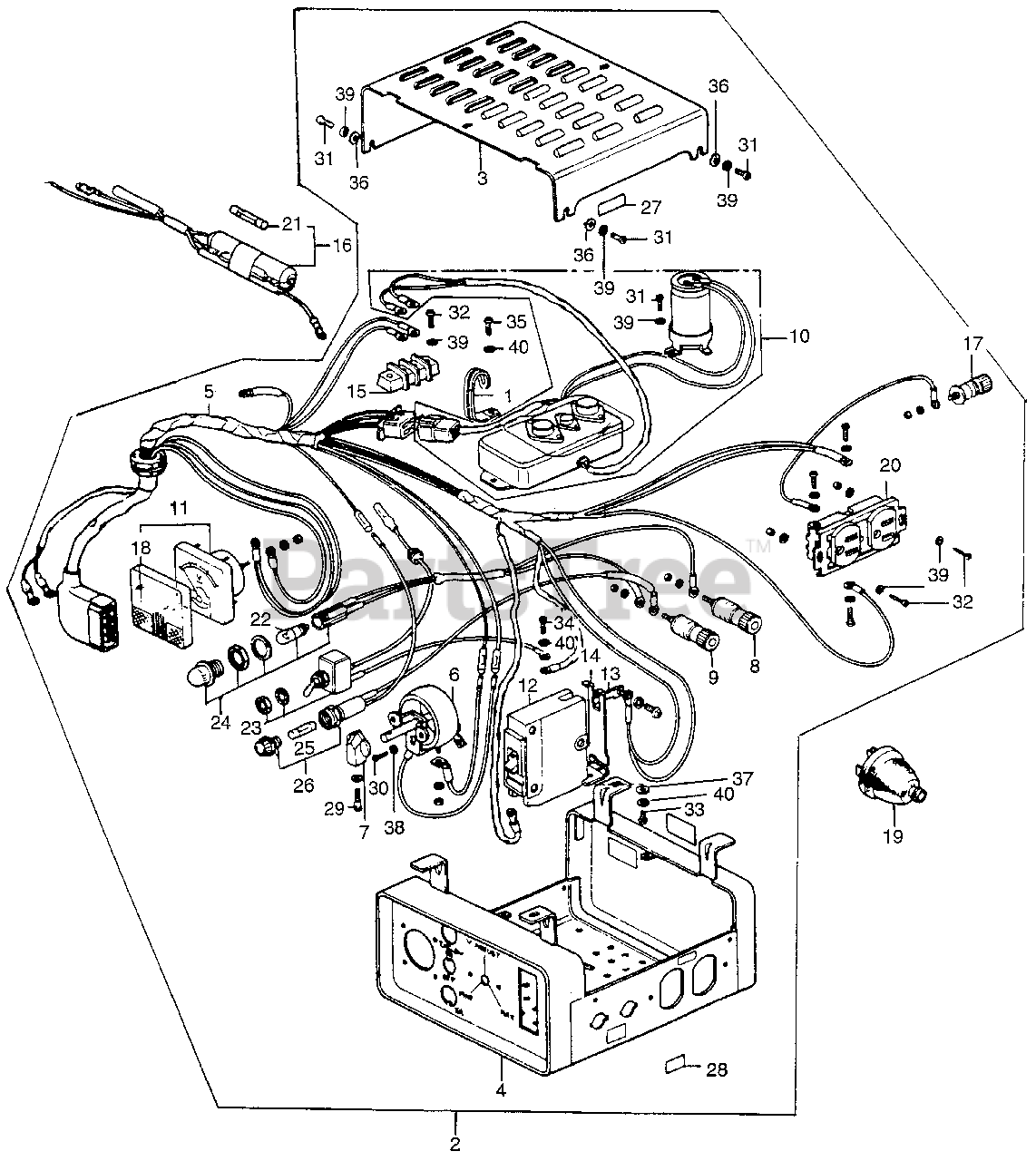

CONTROL BOX K3 Parts Diagram

  • Title

1

Honda 30564-871-601

CLAMP B, WIRE

$6.99

$

Usually ships in 3-6 days

0

2

Honda 31400-877-671H

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

3

Honda 31401-876-158H

COVER, CONTROL BOX (UPPER) *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31402-876-158H

COVER, CONTROL BOX (LOWER) *R8* (BRIGHT RED)

$

$

Not available

5

Honda 31404-877-158

WIRE HARNESS ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31406-876-003

RESISTOR, VARIABLE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31407-815-158

KNOB, ADJUSTING

$

$

Not available

8

Honda 31408-880-000

TERMINAL, D.C. OUT (+)

$43.99

$

Usually ships in 3-6 days

0

9

Honda 31409-880-000

SEE PART DETAILS - PRI; TERMINAL, D.C. OUT (-)

$43.99

$

Usually ships in 3-6 days

0

10

Honda 31410-871-315

REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)

$

$

Not available

11

Honda 37450-898-000

SEE PART DETAILS - PRI; VOLTMETER ASSY.

$217.99

$

Usually ships in 3-6 days

0

12

Honda 31431-899-630

SEE PART DETAILS - PRI; BREAKER, CIRCUIT (25A) (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 31414-876-158

TERMINAL, BREAKER

$

$

Not available

14

Honda 31415-815-168

SUPPORT, BREAKER (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 31419-876-158

TERMINAL (2 POLE)

$

$

Not available

16

Honda 31420-871-305

FUSE DIODE

$

$

Not available

17

Honda 31428-880-000

SEE PART DETAILS - PRI; TERMINAL ASSY., GROUND (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 31499-839-158

LENS, METER (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 32310-812-640

PLUG ASSY., RECEPTACLE

$8.99

$

Usually ships in 3-6 days

0

20

Honda 32333-880-680

SEE PART DETAILS - PRI; RECEPTACLE (15A-125V)

$72.99

$

Usually ships in 3-6 days

0

21

Honda 32342-871-000

FUSE (2.5A)

$

$

Currently unavailable

22

Honda 34909-880-000

BULB (24V2W)

$7.99

$

Usually ships in 3-6 days

0

23

Honda 36100-876-158

SWITCH ASSY., ENGINE (NOT AVAILABLE)

$

$

Not available

24

Honda 37561-868-158

SOCKET ASSY., PILOT LAMP (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 38201-868-158

SEE PART DETAILS - SUP; FUSE (15A)
(Superseded to 38201-880-000)

$3.49

$

Usually ships in 3-6 days

0

26

Honda 38211-868-158

HOLDER ASSY., FUSE

$

$

Currently unavailable

27

Honda 87524-839-670

MARK C, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 87536-840-000

MARK B, D.C. OUTPUT

$

$

Currently unavailable

29

Honda 90191-815-168

BOLT, KNOB (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 93500-03006-0H

SCREW, PAN (3X6)

$0.99

$

In Stock, only 4 left!

0

31

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 10

0

32

Honda 93500-04012-0H

SCREW, PAN (4X12)

$1.49

$

In Stock, Qty 10

0

33

Honda 93500-05008-0H

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 93500-05010-0H

SCREW, PAN (5X10)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

37

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0

38

Honda 94111-03800

WASHER, SPRING (3MM)

$0.99

$

Usually ships in 3-6 days

0

39

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
