E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) FRAME + ENGINE BED Parts Diagram

Generator, Made in Japan

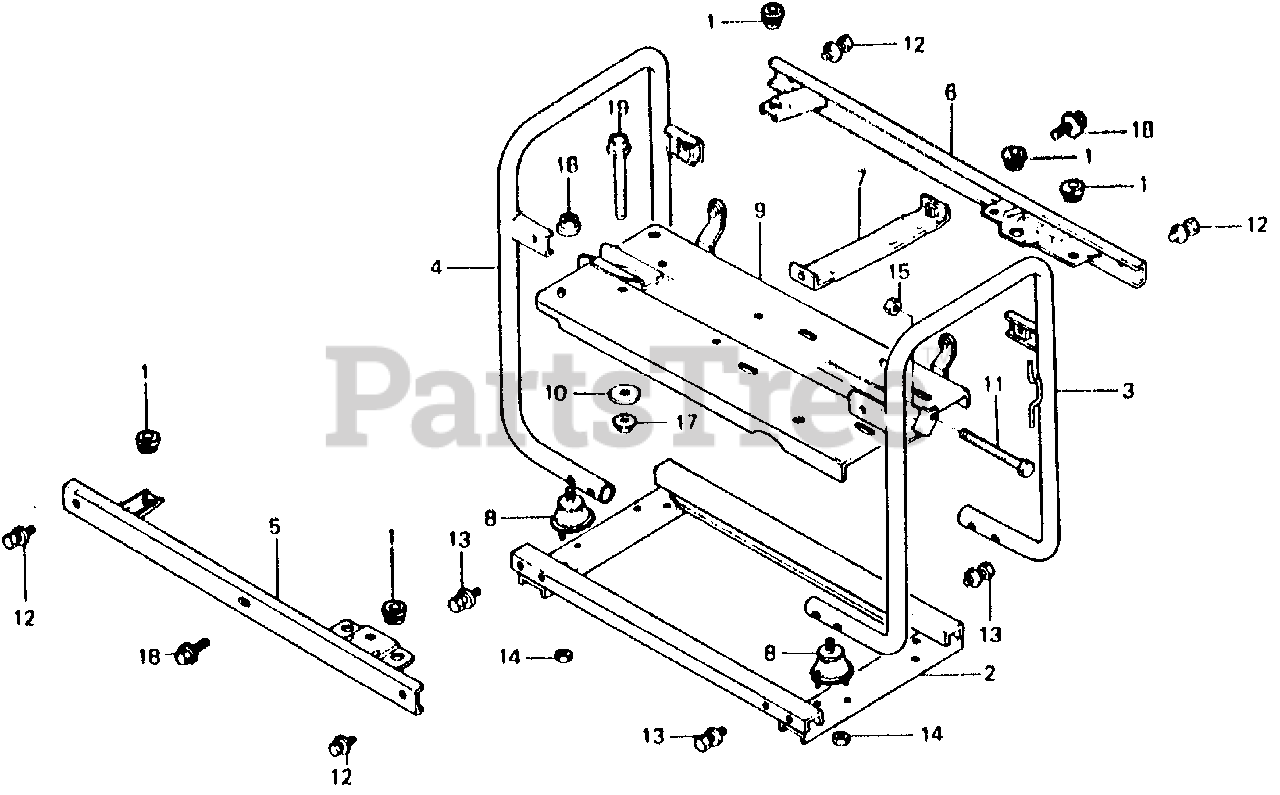

FRAME + ENGINE BED Parts Diagram

  • Title

1

Honda 17682-817-020

RUBBER, TANK CUSHION

$

$

Not available

2

Honda 50310-877-000

BED, FRAME

$

$

Not available

3

Honda 50312-877-010

FRAME, R. SIDE

$

$

Not available

4

Honda 50313-877-010

FRAME, L. SIDE

$

$

Not available

5

Honda 50314-877-000

FRAME, FR. (UPPER)

$

$

Not available

6

Honda 50315-877-010

FRAME, RR. (UPPER)

$

$

Not available

7

Honda 50317-877-010

STOPPER, ENGINE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 68325-893-000

RUBBER, ENGINE SETTING

$

$

Not available

9

Honda 68310-877-000

BED, ENGINE

$

$

Not available

10

Honda 90501-579-020

WASHER, EX. MANIFOLD

$6.99

$

Usually ships in 3-6 days

0

11

Honda 92050-08065-0A

BOLT, HEX. (8X65) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 93412-08016-08

BOLT-WASHER (8X16)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 93402-08020-00

SEE PART DETAILS - PRI; BOLT-WASHER (8X20)

$2.49

$

Usually ships in 3-6 days

0

13

Honda 93412-08020-00

SEE PART DETAILS - SUP; BOLT-WASHER (8X20)

$

$

Currently unavailable

14

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

14

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

15

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

18

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

18

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95700-10050-00

SEE PART DETAILS - SUP; BOLT, FLANGE (10X50)

$

$

Currently unavailable

19

Honda 95701-10050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X50)

$3.49

$

Usually ships in 3-6 days

0
