E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) PISTON + CONNECTING ROD Parts Diagram

Generator, Made in Japan

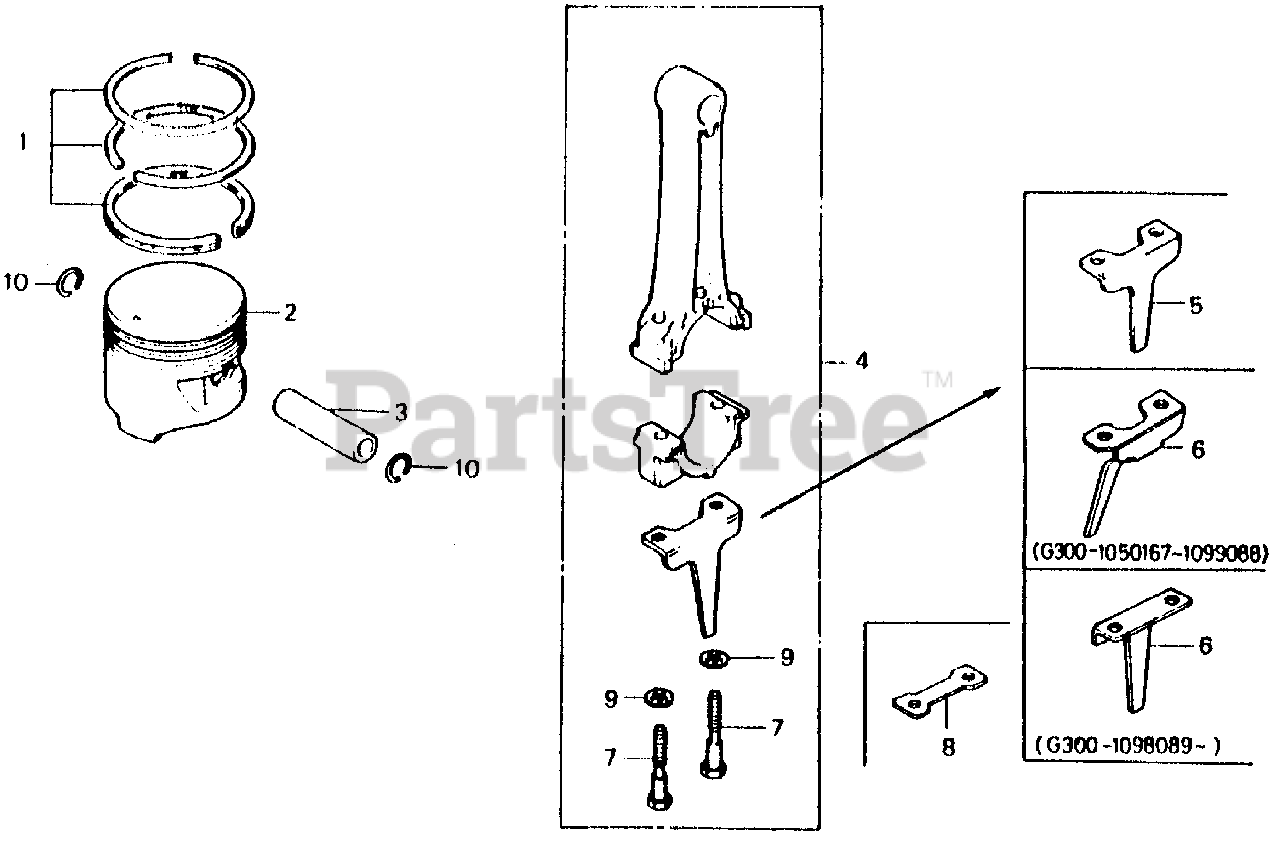

PISTON + CONNECTING ROD Parts Diagram

  • Title

1

Honda 13010-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON

$56.99

$

Usually ships in 3-6 days

0

1

Honda 13011-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$44.99

$

Usually ships in 3-6 days

0

1

Honda 13011-889-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 1061637.
(Superseded to 13011-YA1-003)

$44.99

$

Usually ships in 3-6 days

0

1

Honda 13011-889-013

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)
(Superseded to 13011-YA1-003)

$44.99

$

Usually ships in 3-6 days

0

1

Honda 13012-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$58.99

$

Usually ships in 3-6 days

0

1

Honda 13012-889-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 1061637.
(Superseded to 13012-YA1-003)

$58.99

$

Usually ships in 3-6 days

0

1

Honda 13013-YA1-003

SEE PART DETAILS - PRI; RING SET, PISTON (0.75)

$58.99

$

Usually ships in 3-6 days

0

1

Honda 13013-889-003

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) Use up to Engine SN 1061637.

$

$

Not available

2

Honda 13101-889-010

PISTON (STD)

$107.99

$

Usually ships in 3-6 days

0

2

Honda 13102-889-010

PISTON (OS 0.25)

$86.99

$

Usually ships in 3-6 days

0

2

Honda 13103-889-010

PISTON (OS 0.50)

$86.99

$

Usually ships in 3-6 days

0

2

Honda 13104-889-010

PISTON (0.75)

$86.99

$

Usually ships in 3-6 days

0

3

Honda 13111-369-000

PIN, PISTON

$

$

Not available

4

Honda 13200-889-030

ROD ASSY., CONNECTING

Note: Use from Engine SN 1050167.

$170.99

$

Usually ships in 3-6 days

0

4

Honda 13200-889-428

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (US) Use up to Engine SN 1050166.

$

$

Currently unavailable

4

Honda 13200-889-505

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

Note: Use up to Engine SN 1050166.

$128.99

$

Usually ships in 3-6 days

0

4

Honda 13200-889-506

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (US) Use from Engine SN 1050167.

$

$

Currently unavailable

5

Honda 13281-889-000

DIPPER, CONNECTING ROD

Note: Use up to Engine SN 1050166.

$

$

Currently unavailable

6

Honda 13281-889-010

DIPPER, CONNECTING ROD

Note: Use from Engine SN 1050167.

$14.99

$

Usually ships in 3-6 days

0

7

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM)

Note: Use from Engine SN 1024468.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90001-889-000

BOLT, CONNECTING ROD (8MM) (NOT AVAILABLE)

Note: Use up to Engine SN 1024467.

$

$

Currently unavailable

8

Honda 90432-889-003

WASHER, LOCK (7MM)

Note: Use up to Engine SN 1024467.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 90432-889-003

WASHER, LOCK (7MM)

Note: Use from Engine SN 1024468.

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94601-16000

CLIP, PISTON PIN (16MM)

$0.99

$

Usually ships in 3-6 days

0
