E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) STATOR + BRUSH HOLDER + D.C. DIODE Parts Diagram

Generator, Made in Japan

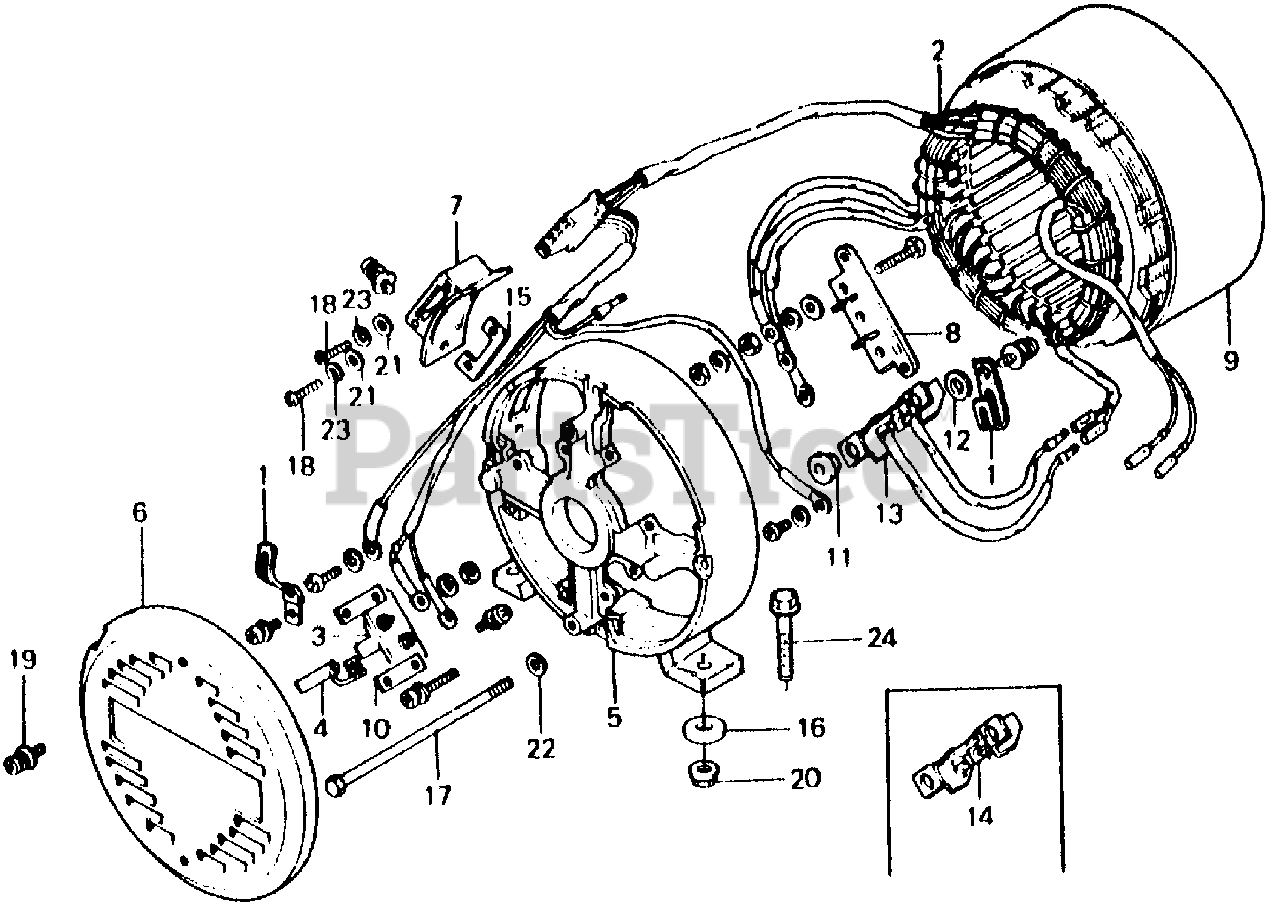

STATOR + BRUSH HOLDER + D.C. DIODE Parts Diagram

  • Title

1

Honda 30564-871-601

CLAMP B, WIRE

$6.99

$

Usually ships in 3-6 days

0

2

Honda 31105-877-168

STATOR ASSY.

$

$

Not available

3

Honda 31106-815-169

HOLDER, BRUSH

$

$

Not available

4

Honda 31107-815-168

BRUSH, CARBON

$

$

Not available

5

Honda 31108-877-003XC

HOUSING, RR. *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

6

Honda 31113-877-158H

COVER, GENERATOR *R8* (BRIGHT RED)

Note: Use up to Frame SN 2113594.

$

$

Currently unavailable

6

Honda 31113-893-000H

COVER, ALTERNATOR END *R8* (BRIGHT RED) (NOT AVAILABLE)

Note: Use from Frame SN 2113595.

$

$

Not available

7

Honda 31115-819-158XC

COVER, CONNECTOR *NH31* (MCKINLEY WHITE)

$

$

Not available

8

Honda 31119-876-158

TERMINAL, VOLT CHANGE

$

$

Not available

9

Honda 31127-877-158XC

COVER, STATOR *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31129-877-003

STAY, BRUSH HOLDER

$

$

Not available

11

Honda 31133-815-158

BUSH, INSULATING

Note: Use up to Frame SN 2116136.

$

$

Not available

11

Honda 31706-880-000

BUSH, INSULATING

Note: Use from Frame SN 2116137.

$7.49

$

Usually ships in 3-6 days

0

12

Honda 31134-815-158

WASHER, INSULATING

Note: Use up to Frame SN 2116136.

$

$

Not available

12

Honda 31707-880-000

WASHER, INSULATING

Note: Use from Frame SN 2116137.

$

$

Not available

13

Honda 31135-876-158

DIODE ASSY., D.C. (NOT AVAILABLE)

Note: Use up to Frame SN 2116136.

$

$

Not available

14

Honda 31705-876-003

DIODE, D.C.

Note: Use from Frame SN 2116137.

$

$

Currently unavailable

15

Honda 32101-839-168

PLATE, CONNECTOR SETTING

$

$

Not available

16

Honda 90501-579-020

WASHER, EX. MANIFOLD

$6.99

$

Usually ships in 3-6 days

0

17

Honda 92020-06130-08

BOLT, HEX. (6X130)

$

$

Currently unavailable

18

Honda 93500-03010-0H

SCREW, PAN (3X10)

$0.99

$

Usually ships in 3-6 days

0

19

Honda 93893-05010-08

SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

20

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

21

Honda 94101-03000

WASHER, PLAIN (3MM)

$0.99

$

Usually ships in 3-6 days

0

22

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, only 1 left!

0

24

Honda 95701-10032-00

BOLT, FLANGE (10X32)

$1.99

$

Usually ships in 3-6 days

0
