E2500 K4 A (E2500) - Honda Generator, Made in Japan (SN: E2500-2100006 - E2500-9999999) WIRE HARNESS + AUTOMATIC VOLTAGE REGULATOR Parts Diagram

Generator, Made in Japan

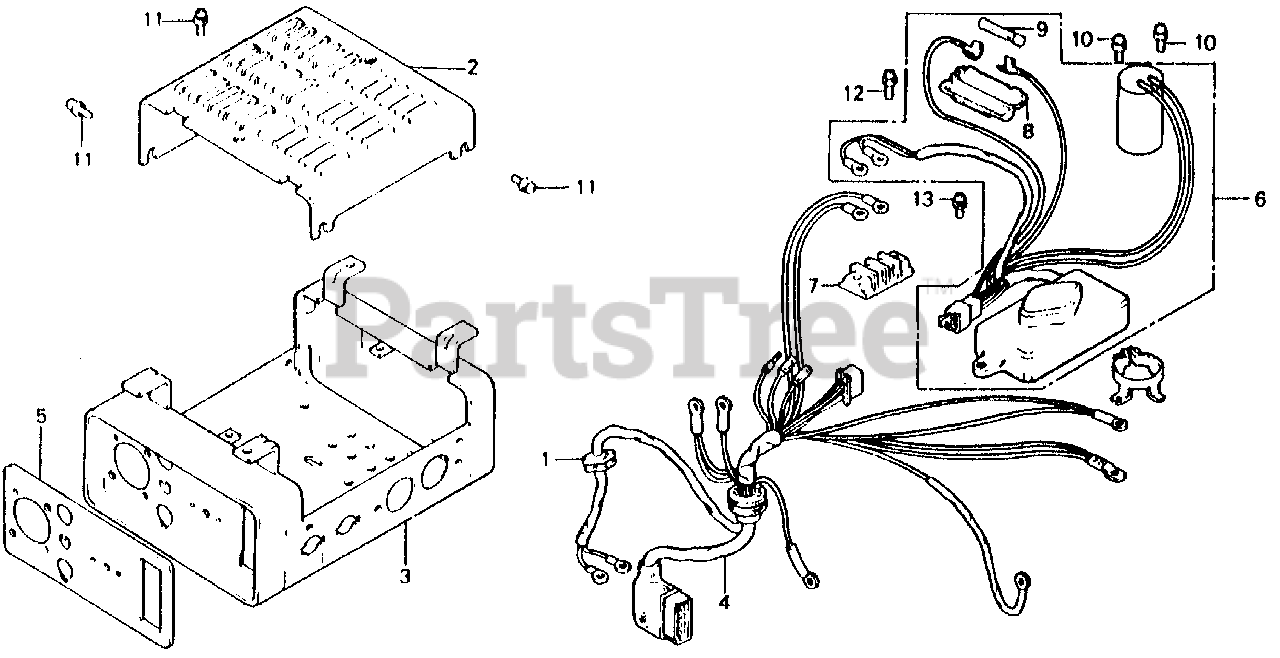

WIRE HARNESS + AUTOMATIC VOLTAGE REGULATOR Parts Diagram

  • Title

1

Honda 31131-877-158

BUSH, RUBBER

$

$

Not available

2

Honda 31401-876-158H

COVER, CONTROL BOX (UPPER) *R8* (BRIGHT RED)

$

$

Not available

3

Honda 31402-876-158H

COVER, CONTROL BOX (LOWER) *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31404-877-158

WIRE HARNESS ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31405-876-601

PANEL, FR.

$

$

Not available

6

Honda 31410-871-013

REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Currently unavailable

7

Honda 31419-876-158

TERMINAL (2 POLE)

$

$

Not available

8

Honda 32111-230-000

CASE, FUSE CONNECTOR

$5.49

$

Usually ships in 3-6 days

0

9

Honda 32342-871-000

FUSE (2.5A)

$

$

Currently unavailable

10

Honda 93892-04006-08

SCREW-WASHER (4X6)

Note: Use up to Frame SN 2134253.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

Note: Use from Frame SN 2134254.

$1.99

$

In Stock, Qty 6

0

11

Honda 93893-04006-08

SCREW-WASHER (4X6)

Note: Use up to Frame SN 2134253.

$1.49

$

Usually ships in 3-6 days

0

11

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

Note: Use from Frame SN 2134254.

$1.99

$

In Stock, Qty 6

0

12

Honda 93893-04016-08

SCREW-WASHER (4X16)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 93893-05016-08

SCREW-WASHER (5X16)

$1.49

$

Usually ships in 3-6 days

0
