E300 A (GE300) - Honda Generator, Made in Japan (SN: GE300-100001 - GE300-1106000) COVER + AIR CLEANER Parts Diagram

Generator, Made in Japan

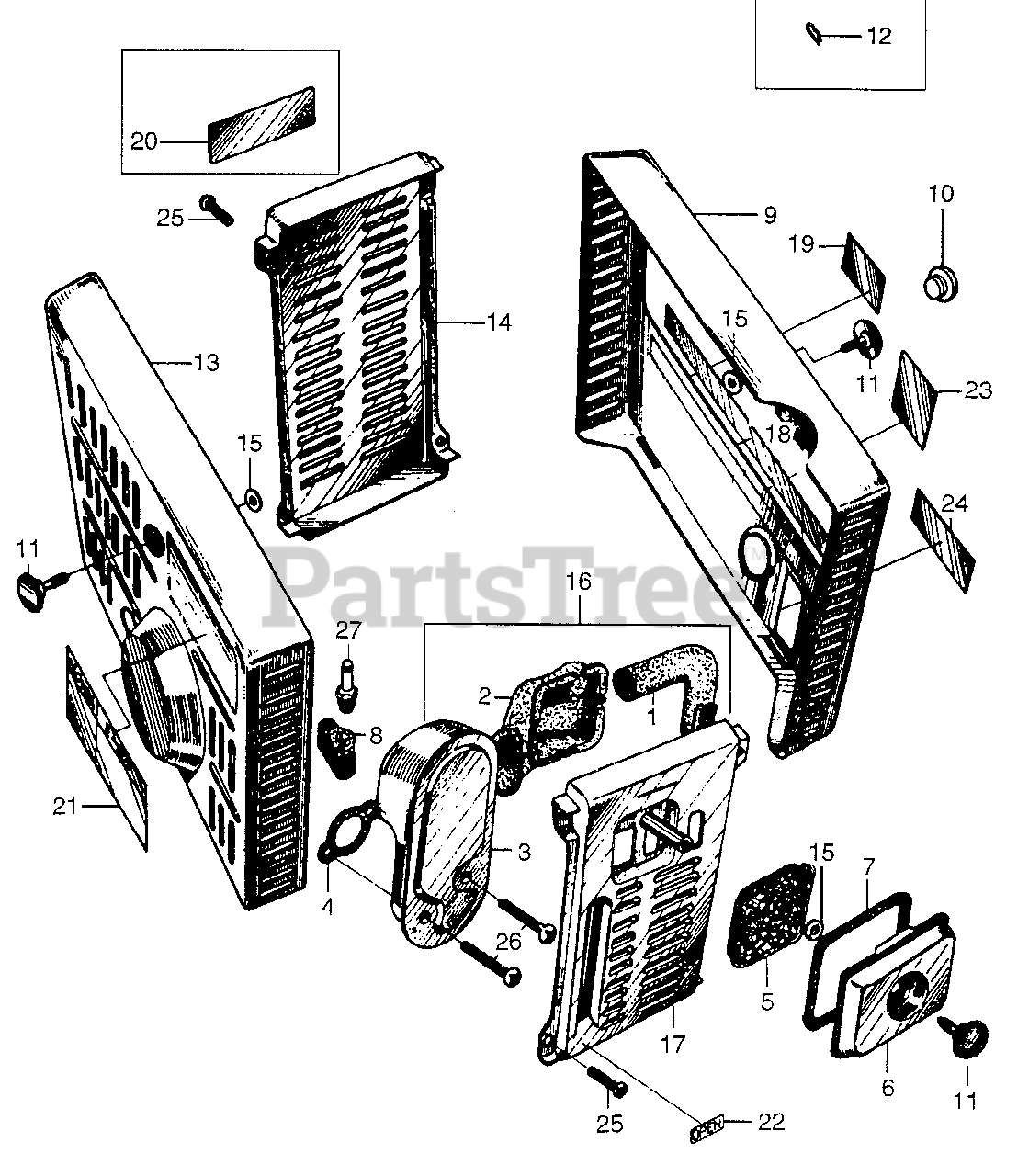

COVER + AIR CLEANER Parts Diagram

  • Title

1

Honda 17111-836-000

TUBE, AIR CLEANER

$

$

Currently unavailable

1

Honda 17111-866-000

TUBE, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 17121-836-000

TUBE, IN. MUFFLER CONNECTING

$

$

Currently unavailable

3

Honda 17131-836-000

MUFFLER, IN. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 17132-836-000

GASKET, IN. MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17211-836-000

ELEMENT, AIR CLEANER

$

$

Not available

8

Honda 38211-812-010

HOLDER, SPARE PLUG

$

$

Currently unavailable

9

Honda 63310-812-030J

COVER, FR. *R15L* (WINE RED)

$

$

Not available

11

Honda 63381-812-010

LATCH, COVER

$

$

Not available

12

Honda 63387-812-000

PIN, LATCH SNAP

Note: Use from Frame SN 0100001 to 1106000.

$

$

Currently unavailable

13

Honda 63410-812-010J

COVER, RR. *R15L* (WINE RED)

Note: Use from Frame SN 0100001 to 1088364.

$

$

Not available

13

Honda 63410-812-020J

COVER, RR. *R15L* (WINE RED)

Note: Use from Frame SN 1088365.

$

$

Not available

14

Honda 63510-812-010

COVER, R. SIDE

Note: Use from Frame SN 0100001 to 1106000.

$

$

Not available

15

Honda 63588-801-000

STOPPER, LATCH (NOT AVAILABLE)

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

17

Honda 63610-812-010

COVER, L. SIDE

Note: Use from Frame SN 0100001 to 1106000.

$

$

Not available

18

Honda 87101-812-630

MARK, TOP

$

$

Not available

19

Honda 87111-812-630

MARK, FR. (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 87151-812-630

PLATE, NAME (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1088449.

$

$

Currently unavailable

20

Honda 87151-812-810

PLATE, NAME

Note: Use from Frame SN 1088450 to 1106000.

$

$

Currently unavailable

21

Honda 87521-812-630

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 87541-836-681

MARK A, OIL CHECK

Note: Use from Frame SN 1034590 to 1106000.

$

$

Currently unavailable

24

Honda 87542-812-630

MARK B, OIL CHECK

Note: Use from Frame SN 1034590.

$

$

Currently unavailable

25

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

26

Honda 93500-05020-0A

SCREW, PAN (5X20)

Note: Use from Frame SN 1000001 to 3110772.

$0.99

$

Usually ships in 3-6 days

0

27

Honda 98052-56471

SPARK PLUG (CM6) (NGK)

$7.49

$

Usually ships in 3-6 days

0
