E300 A (GE300) - Honda Generator, Made in Japan (SN: GE300-100001 - GE300-1106000) EK1 K2 ALTERNATOR + POINTS Parts Diagram

Generator, Made in Japan

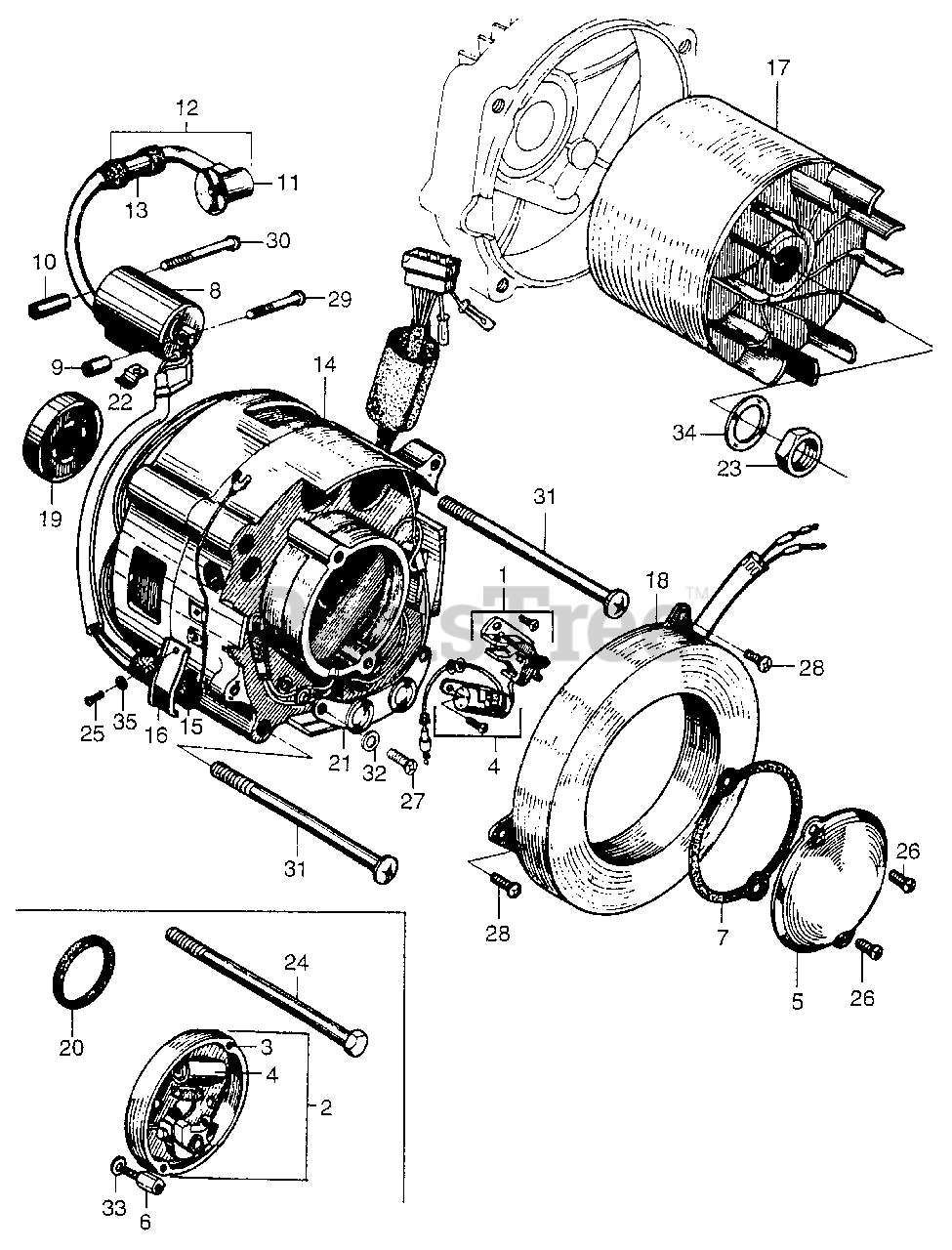

EK1 K2 ALTERNATOR + POINTS Parts Diagram

  • Title

1

Honda 30200-812-000

POINTS ASSY., CONTACT (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1007410.

$

$

Not available

1

Honda 30200-812-010

POINTS ASSY., CONTACT (NOT AVAILABLE)

Note: Use from Frame SN 1007411 to 1106000.

$

$

Not available

2

Honda 30200-812-000

POINTS ASSY., CONTACT (NOT AVAILABLE)

$

$

Not available

2

Honda 30200-812-010

POINTS ASSY., CONTACT (NOT AVAILABLE)

Note: Use from Frame SN 0100741 to 1106000.

$

$

Not available

3

Honda 30201-812-003

BASE

Note: Use from Frame SN 1067411 to 1106000.

$

$

Not available

3

Honda 30201-812-305

BASE

Note: Use from Frame SN 0100001 to 1067410.

$

$

Not available

4

Honda 30203-812-003

SEE PART DETAILS - PRI; CONDENSER ASSY. (NOT AVAILABLE)

$

$

Not available

5

Honda 30211-812-305

COVER, POINTS (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 0106770.

$

$

Currently unavailable

5

Honda 30211-812-010

COVER, POINTS

Note: Use from Frame SN 0106771.

$

$

Not available

6

Honda 30213-812-010

BOLT, POINTS SET

$

$

Not available

6

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

Note: Use from Frame SN 1067701 to 1106000.

$1.49

$

In Stock, Qty 8

0

8

Honda 30500-812-013

SEE PART DETAILS - PRI; COIL ASSY., A.C. IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30531-812-000

COLLAR A, IGNITION DISTANCE (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 30532-812-000

COLLAR B, IGNITION DISTANCE

Note: Use from Frame SN 0100001.

$

$

Not available

11

Honda 30611-812-000

COVER, IGNITION TERMINAL (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1022091.

$

$

Currently unavailable

12

Honda 30615-812-010

TERMINAL ASSY., IGNITION (NOT AVAILABLE)

Note: Use from Frame SN 1022092.

$

$

Currently unavailable

12

Honda 30616-812-000

TERMINAL ASSY., IGNITION

Note: Use from Frame SN 0100001.

$

$

Currently unavailable

13

Honda 30700-812-000

SUPPRESSOR, NOISE (NOT AVAILABLE)

Note: Use from Frame SN 0100001 to 1022091.

$

$

Currently unavailable

13

Honda 30700-812-010

SUPPRESSOR, NOISE (NOT AVAILABLE)

Note: Use from Frame SN 1022092.

$

$

Currently unavailable

14

Honda 31150-812-033

STATOR ASSY., ALTERNATOR

Note: Use from Frame SN 0100001 to 1007891.

$

$

Not available

14

Honda 31150-812-043

STATOR ASSY., ALTERNATOR

Note: Use from Frame SN 1007892 to 1011454.

$

$

Not available

14

Honda 31150-812-053

STATOR ASSY., ALTERNATOR

Note: Use from Frame SN 1011455 to 1070621.

$

$

Not available

14

Honda 31150-812-060

STATOR ASSY., ALTERNATOR

Note: Use from Frame SN 1070622 to 1099383.

$

$

Not available

14

Honda 31150-812-631

STATOR ASSY., ALTERNATOR

Note: Use from Frame SN 1099384 to 1106000.

$

$

Not available

15

Honda 31156-836-000

TUBE A, RUBBER

Note: Use from Frame SN 1022235 to 2000000.

$

$

Not available

16

Honda 31157-812-000

CLAMP, JOINT

Note: Use from Frame SN 1022235 to 2000000.

$

$

Not available

17

Honda 31160-812-003

ROTOR, ALTERNATOR

$

$

Not available

18

Honda 31170-812-023

REACTOR

Note: Use from Frame SN 0100001 to 1099383.

$

$

Not available

18

Honda 31170-812-631

REACTOR

Note: Use from Frame SN 1099384 to 1106000.

$

$

Not available

19

Honda 31191-812-000

BEARING, NEEDLE

Note: Use from Frame SN 0100001 to 1007891.

$

$

Not available

19

Honda 96150-60010-10

BEARING, RADIAL BALL (6001UU) (SOURCE: VINTAGE PARTS INC.)

Note: Use from Frame SN 1007892.

$28.99

$

Usually ships in 3-6 days

0

20

Honda 31192-812-000

OIL SEAL

Note: Use from Frame SN 0100001 to 1007891.

$

$

Not available

21

Honda 31700-812-000

RECTIFIER, SILICON

Note: Use from Frame SN 1028067 to 1106000.

$

$

Currently unavailable

22

Honda 32901-812-000

CLAMP, WIRE

Note: Use from Frame SN 0100001 to 2000000.

$

$

Not available

23

Honda 90282-812-000

NUT, SPECIAL (16MM)

$

$

Not available

24

Honda 92000-06103

BOLT, HEX. (6X103) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

24

Honda 92000-06145

BOLT, HEX. (6X145) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

25

Honda 93500-04006-0A

SCREW, PAN (4X6)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 93500-04006-0A

SCREW, PAN (4X6)

Note: Use from Frame SN 0100001 to 1106000.

$0.99

$

Usually ships in 3-6 days

0

27

Honda 93500-04020

SEE PART DETAILS - SUP; SCREW, PAN (4X20)

Note: Use from Frame SN 1028067.

$

$

Currently unavailable

27

Honda 93500-04020-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X20)

Note: Use from Frame SN 1028067.

$0.99

$

In Stock, Qty 10

0

28

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

29

Honda 93500-05030-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X30)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 93500-05042

SCREW, PAN (5X42) (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 94101-04000

WASHER, PLAIN (4MM)

Note: Use from Frame SN 1028067.

$1.49

$

In Stock, only 1 left!

0

33

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: Use from Frame SN 0100001 to 1067410.

$0.99

$

In Stock, Qty 20+

0

34

Honda 94101-16000

WASHER, FLAT (16MM)

$0.99

$

In Stock, only 1 left!

0

35

Honda 94111-04000

WASHER, SPRING (4MM)

Note: Use from Frame SN 1022235.

$1.49

$

Usually ships in 3-6 days

0
