E300 A (GE300) - Honda Generator, Made in Japan (SN: GE300-100001 - GE300-1106000) MUFFLER Parts Diagram

Generator, Made in Japan

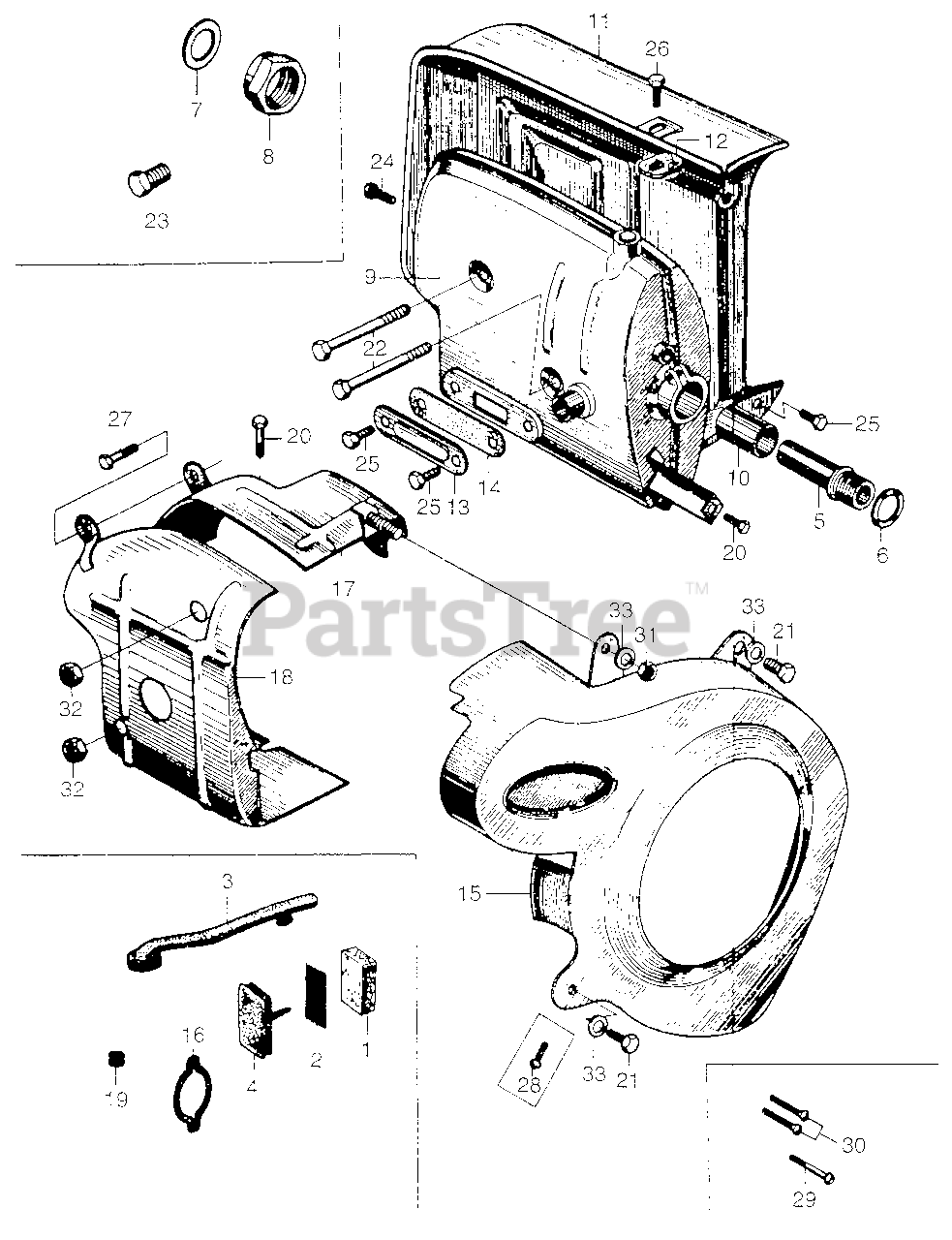

MUFFLER Parts Diagram

  • Title

1

Honda 17211-812-000

ELEMENT, AIR CLEANER (NOT AVAILABLE)

Note: Use from Engine SN 0100001 to 1040209.

$

$

Currently unavailable

1

Honda 17211-812-010

ELEMENT, AIR CLEANER

Note: Use from Engine SN 1040210 to 1106000.

$

$

Currently unavailable

2

Honda 17212-812-000

GRID, FILTER (NOT AVAILABLE)

Note: Use from Engine SN 0100001 to 1040209.

$

$

Currently unavailable

2

Honda 17212-812-010

GRID, FILTER

Note: Use from Engine SN 1040210 to 1106000.

$

$

Not available

3

Honda 17214-812-000

PIPE, AIR CLEANER

Note: Use from Engine SN 1040210 to 1106000.

$

$

Not available

4

Honda 17215-812-000

COVER, CLEANER ELEMENT

Note: Use from Engine SN 1040210 to 1106000.

$4.99

$

Usually ships in 3-6 days

0

5

Honda 18211-812-000

PIPE, EX.

Note: Use from Engine SN 0100001 to 1018081.

$

$

Not available

5

Honda 18211-812-010

PIPE, EX. (NOT AVAILABLE)

Note: Use from Engine SN 1018082 to 1079915.

$

$

Not available

5

Honda 18211-812-020

PIPE, EX.

Note: Use from Engine SN 1079916 to 1106000.

$

$

Not available

6

Honda 18232-812-000

GASKET, EX. PIPE (NOT AVAILABLE)

Note: Use from Engine SN 0100001 to 1021557.

$

$

Currently unavailable

6

Honda 18232-812-010

GASKET, EX. PIPE (NOT AVAILABLE)

Note: Use from Engine SN 1021558.

$

$

Currently unavailable

7

Honda 18241-812-000

GASKET, MUFFLER (NOT AVAILABLE)

Note: Use from Engine SN 1079916 to 1106000.

$

$

Currently unavailable

8

Honda 18251-812-000

NUT, MUFFLER SETTING

Note: Use from Engine SN 1079916 to 1106000.

$

$

Not available

9

Honda 18300-812-020

MUFFLER

Note: Use from Engine SN 1079916 to 1106000.

$

$

Not available

9

Honda 18300-812-315

MUFFLER

Note: Use from Engine SN 0100001 to 1079915.

$

$

Not available

10

Honda 18351-812-010

SEAL, EX. PIPE (NOT AVAILABLE)

Note: Use from Engine SN 0100001 to 1079915.

$

$

Currently unavailable

11

Honda 18361-812-010

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER

Note: Use from Engine SN 0100001 to 1106000.

$

$

Currently unavailable

12

Honda 18369-812-010

STOPPER, PROTECTOR

$

$

Not available

13

Honda 18371-812-000

LID, MUFFLER

Note: Use from Engine SN 0100001 to 1079915.

$

$

Currently unavailable

14

Honda 18372-812-000

GASKET, MUFFLER LID (NOT AVAILABLE)

Note: Use from Engine SN 0100001 to 1079915.

$

$

Currently unavailable

15

Honda 19600-812-020

COVER, FAN

Note: Use from Engine SN 0100001.

$

$

Not available

16

Honda 19603-812-300

GASKET, CLEANER COVER

Note: Use from Engine SN 0100001 to 1040209.

$

$

Not available

16

Honda 19616-812-310

GASKET, CLEANER (NOT AVAILABLE)

Note: Use from Engine SN 1040210 to 1106000.

$

$

Currently unavailable

17

Honda 19610-812-010

VANE A, GUIDE

Note: Use from Engine SN 0100001 to 1018081.

$

$

Not available

17

Honda 19610-812-020

VANE A, GUIDE

Note: Use from Engine SN 1018082 to 1106000.

$

$

Not available

18

Honda 19620-812-010

VANE B, GUIDE

Note: Use from Engine SN 0100001 to 1021557.

$

$

Not available

18

Honda 19620-812-020

VANE B, GUIDE

Note: Use from Engine SN 1021558 to 1085007.

$

$

Not available

18

Honda 19620-812-030

VANE B, GUIDE

Note: Use from Engine SN 1085008.

$

$

Not available

19

Honda 63371-812-010

RUBBER, GUIDE (NOT AVAILABLE)

Note: Use from Engine SN 0100001 to 1021557.

$

$

Currently unavailable

20

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

Note: Use from Engine SN 0100001 to 1106000.

$1.49

$

Usually ships in 3-6 days

0

22

Honda 92000-05055

BOLT, HEX. (5X55)

$

$

Currently unavailable

22

Honda 92000-05055-0A

BOLT, HEX. (5X55) (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 92000-08012-0A

SEE PART DETAILS - SUP; BOLT, HEX. (8X12)

Note: Use from Engine SN 1079916 to 1106000.

$

$

Currently unavailable

23

Honda 92100-08012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X12) (NOT AVAILABLE)

Note: Use from Engine SN 1079916 to 1106000.

$

$

Currently unavailable

23

Honda 92101-05018-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X18)

Note: Use from Engine SN 1106001.

$1.49

$

Usually ships in 3-6 days

0

24

Honda 92101-05010-0A

BOLT, HEX. (5X10)

Note: Use from Engine SN 0100001 to 1106000.

$1.49

$

Usually ships in 3-6 days

0

26

Honda 92101-05010-0A

BOLT, HEX. (5X10)

Note: Use from Engine SN 0100001 to 1106000.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-05008-0A

SCREW, PAN (5X8)

Note: Use from Engine SN 0100001 to 1106000.

$1.49

$

In Stock, Qty 10

0

29

Honda 93500-05018-0A

SCREW, PAN (5X18)

Note: Use from Engine SN 0100001 to 1106000.

$0.99

$

Usually ships in 3-6 days

0

30

Honda 93600-05022

SCREW, FLAT (5X22)

Note: Use from Engine SN 1040210 to 1106000.

$

$

Currently unavailable

31

Honda 94001-05000-0S

NUT, HEX. (5MM)

Note: Use from Engine SN 1106001.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

32

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0
