E300 K1 A (GE300) - Honda Generator, Made in Japan (SN: GE300-1106001 - GE300-1281362) EK1 K2 ALTERNATOR + POINTS Parts Diagram

Generator, Made in Japan

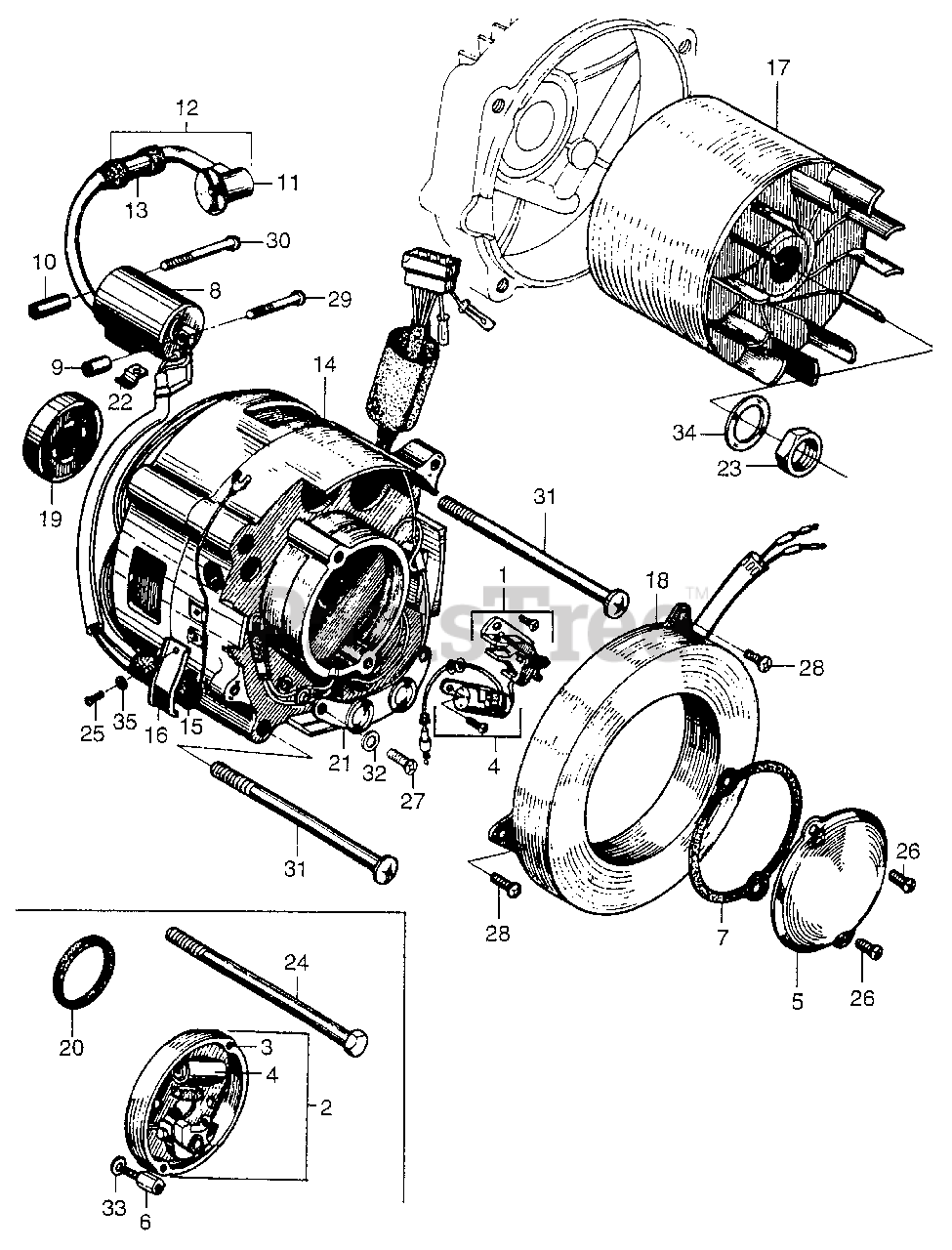

EK1 K2 ALTERNATOR + POINTS Parts Diagram

  • Title
1

Honda 30202-836-003

POINTS ASSY.

$32.47

$

Usually ships in 3-5 days

0

2

Honda 30202-836-003

POINTS ASSY.

$32.47

$

Usually ships in 3-5 days

0

4

Honda 30203-836-013

CONDENSER ASSY. (NOT AVAILABLE)

$25.45

$

Usually ships in 3-5 days

0

5

Honda 30211-812-010

COVER, POINTS

Note: Use from Frame SN 0106771.

$

$

Not available

7

Honda 30214-812-000

GASKET, POINTS COVER (NOT AVAILABLE)

Note: Use from Frame SN 1106001.

$

$

Currently unavailable

8

Honda 30500-812-013

SEE PART DETAILS - PRI; COIL ASSY., A.C. IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 30531-812-000

COLLAR A, IGNITION DISTANCE (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 30532-812-000

COLLAR B, IGNITION DISTANCE

Note: Use from Frame SN 0100001.

$

$

Not available

14

Honda 31151-836-672

STATOR, ALTERNATOR

Note: Use from Frame SN 1106001.

$

$

Not available

15

Honda 31156-836-000

TUBE A, RUBBER

Note: Use from Frame SN 1022235 to 2000000.

$

$

Not available

16

Honda 31157-812-000

CLAMP, JOINT

Note: Use from Frame SN 1022235 to 2000000.

$8.81

$

Usually ships in 3-5 days

0

17

Honda 31160-836-003

ROTOR, ALTERNATOR

$

$

Not available

18

$

$

Not available

19

Honda 96150-60010-10

BEARING, RADIAL BALL (6001UU) (SOURCE: VINTAGE PARTS INC.)

Note: Use from Frame SN 1007892.

$25.63

$

Usually ships in 3-5 days

0

21

Honda 31700-836-003

RECTIFIER, SILICON

Note: Use from Frame SN 1106001 to 2000000.

$

$

Not available

23

Honda 90201-836-000

NUT, SPECIAL (14MM)

$1.92

$

Usually ships in 3-5 days

0

25

Honda 93500-04006-0A

SCREW, PAN (4X6)

$0.87

$

Usually ships in 3-5 days

0

26

Honda 93500-04008-0B

SCREW, PAN (4X8)

Note: Use from Frame SN 1106001 to 2035556.

$

$

Not available

27

Honda 93500-04020

SEE PART DETAILS - SUP; SCREW, PAN (4X20)

Note: Use from Frame SN 1028067.

$

$

Currently unavailable

27

Honda 93500-04020-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X20)

Note: Use from Frame SN 1028067.

$0.87

$

In Stock, Qty 10

0

28

Honda 93500-05012-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X12)

$0.98

$

In Stock, Qty 8

0

29

Honda 93500-05028-0A

SCREW, PAN (5X28)

$0.98

$

In Stock, Qty 6

0

30

Honda 93500-05040-0A

SCREW, PAN (5X40)

$0.63

$

Usually ships in 3-5 days

0

31

Honda 93500-06100

SCREW, PAN (6X100) (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 94101-04000

WASHER, PLAIN (4MM)

Note: Use from Frame SN 1028067.

$1.05

$

In Stock, only 2 left!

0

34

Honda 94102-14000

WASHER, FLAT (14MM)

$0.67

$

Usually ships in 3-5 days

0

35

Honda 94111-04000

WASHER, SPRING (4MM)

Note: Use from Frame SN 1022235.

$1.16

$

Usually ships in 3-5 days

0
