E3500 K1 A (E3500) - Honda Generator, Made in Japan (SN: E3500-1100021 - E3500-1129668) MUFFLER Parts Diagram

Generator, Made in Japan

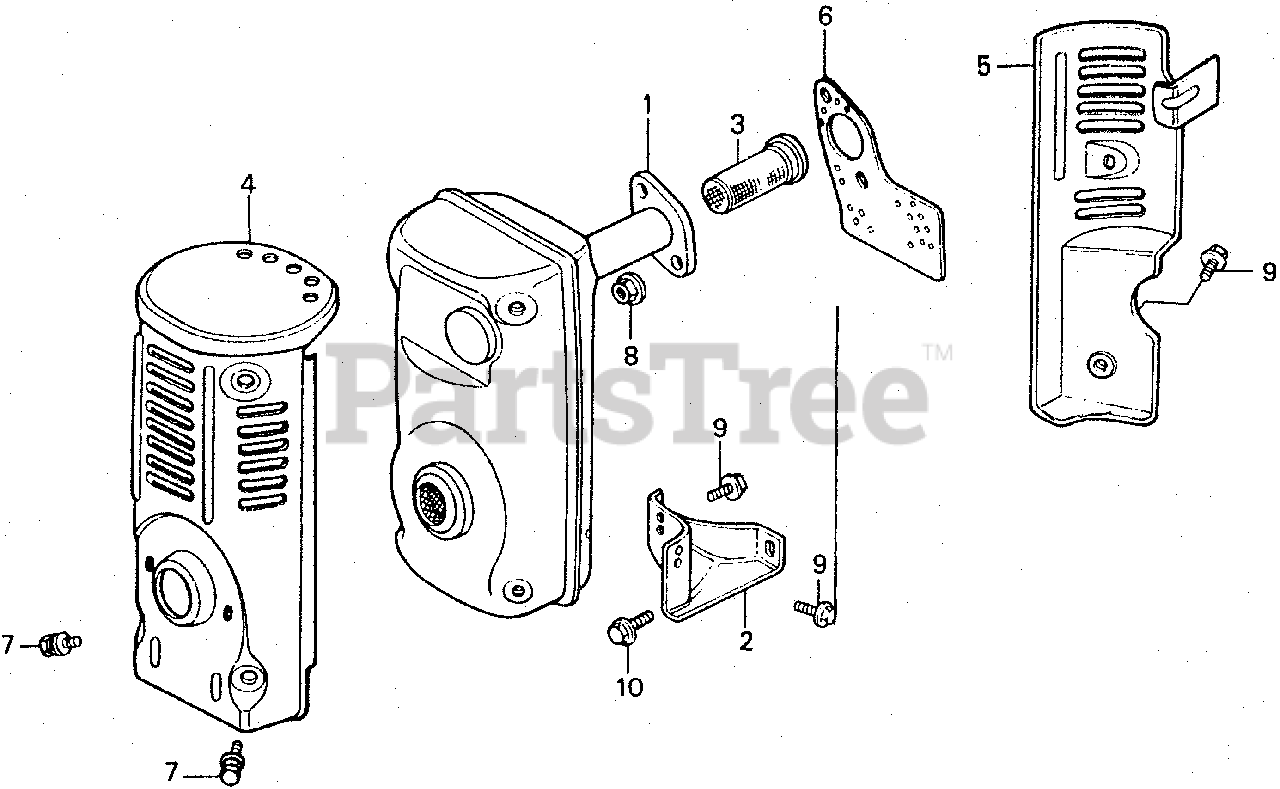

MUFFLER Parts Diagram

  • Title

1

Honda 18310-890-696

SEE PART DETAILS - PRI; MUFFLER (ARRESTER)

Note: Use from Engine SN 1006252 to 1071789.

$

$

Currently unavailable

1

Honda 18310-890-696

SEE PART DETAILS - PRI; MUFFLER (ARRESTER)

Note: Use from Engine SN 1071790.

$

$

Currently unavailable

1

Honda 18310-890-696

SEE PART DETAILS - PRI; MUFFLER (ARRESTER)

$

$

Currently unavailable

1

Honda 18310-893-691

SEE PART DETAILS - SUP; MUFFLER

Note: Use up to Engine SN 1006251.

$

$

Not available

2

Honda 18320-890-731

STAY, MUFFLER

$

$

Not available

3

Honda 18335-890-000

ARRESTER, SPARK

$

$

Not available

4

Honda 18361-890-730

PROTECTOR A, MUFFLER

$

$

Not available

5

Honda 18365-890-730

PROTECTOR B, MUFFLER

$

$

Not available

6

Honda 18381-890-306

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-890-800)

$

$

Not available

6

Honda 18381-890-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$

$

Not available

7

Honda 90003-890-000

BOLT-WASHER (6X10)

Note: Use from Engine SN 1071060.

$

$

Currently unavailable

7

Honda 92100-06008-0B

SEE PART DETAILS - SUP; BOLT, HEX. (6X8)
(Superseded to 92101-06008-0B)

Note: Use up to Engine SN 1071059.

$2.99

$

Usually ships in 3-6 days

0

7

Honda 92101-06008-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

Note: Use up to Engine SN 1071059.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

10

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

Note: Use up to Engine SN 1086381.

$2.99

$

Usually ships in 3-6 days

0

10

Honda 95701-08016-08

BOLT, FLANGE (8X16)

Note: Use from Engine SN 1086382.

$2.99

$

In Stock, only 2 left!

0
