E40 A (GE40) - Honda Generator, Made in Japan (SN: GE40-10001 - GE40-99999) FUEL TANK + IGNITION COIL Parts Diagram

Generator, Made in Japan

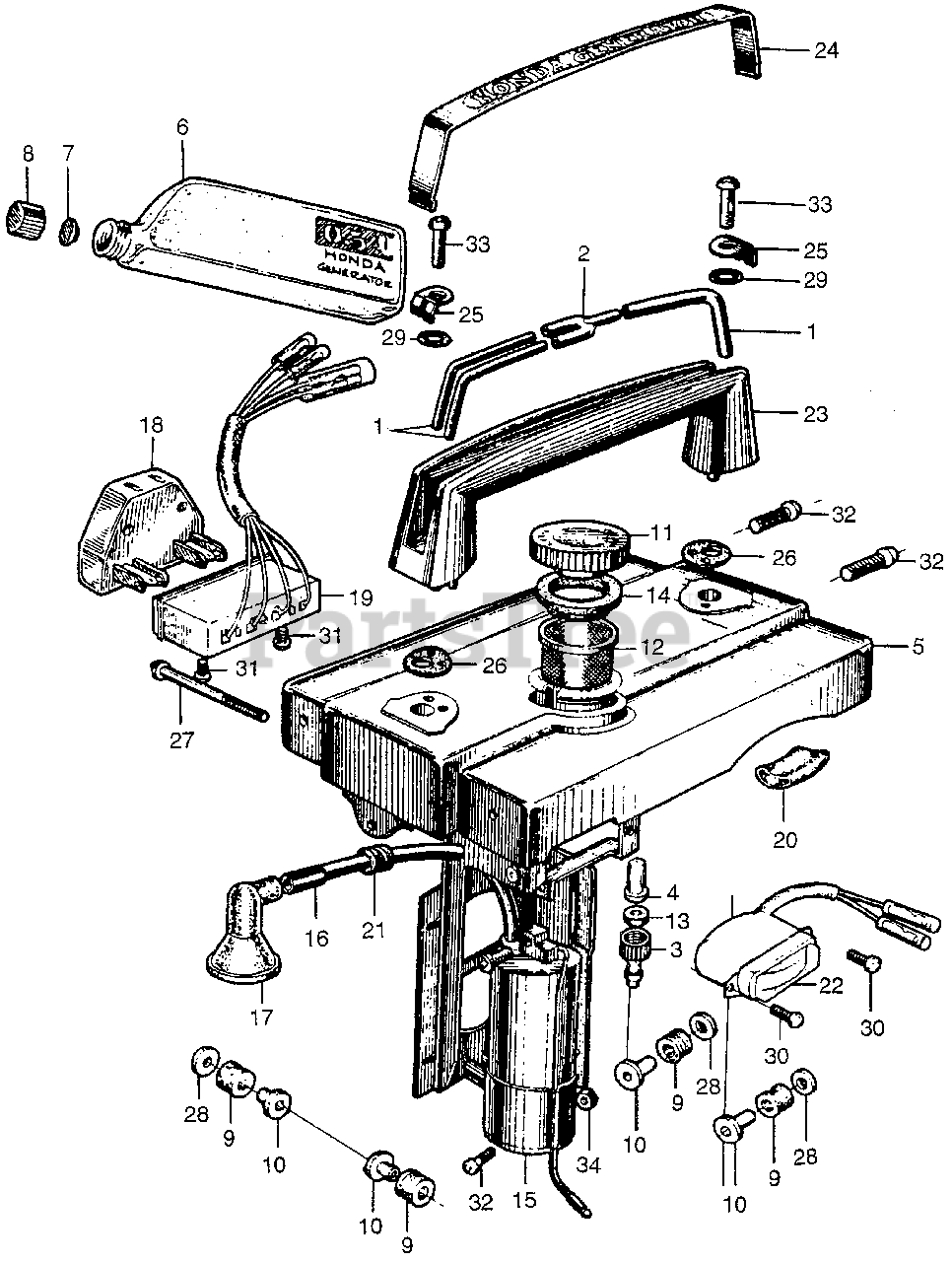

FUEL TANK + IGNITION COIL Parts Diagram

  • Title

1

Honda 15761-801-000

TUBE, BREATHER (NOT AVAILABLE)

$

$

Not available

2

Honda 15766-801-000

TUBE, BREATHER (NOT AVAILABLE)

$

$

Not available

3

Honda 16911-800-010

BODY, STRAINER (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16912-800-010

ELEMENT

$

$

Currently unavailable

4

Honda 16981-836-700

FILTER, CHECK (NOT AVAILABLE)

$

$

Not available

5

Honda 17500-801-030T

TANK, FUEL *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 17550-801-000

SUB-TANK, FUEL

$

$

Currently unavailable

7

Honda 17551-800-000

INNER CAP, FUEL TANK (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 17573-801-810

CAP, SUB-TANK (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 17621-801-000

DAMPER, TANK STAY (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 17641-801-000

COLLAR, TANK DISTANCE (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 17650-801-020

CAP, TANK (NOT AVAILABLE)

$

$

Not available

12

Honda 17672-801-010

FILTER, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 17673-800-000

GASKET, ELEMENT SEALED (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 17673-836-000

RUBBER, FILTER (NOT AVAILABLE)

$

$

Not available

15

Honda 30500-800-000

COIL, A.C. IGNITION

$

$

Currently unavailable

15

Honda 30500-814-000

COIL, A.C. IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

16

Honda 30600-800-010

TERMINAL, IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 30611-800-010

CAP, IGNITION TERMINAL (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 32320-801-810

ADAPTER (250V 10A) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 32330-801-000

RECEPTACLE ASSY., DOUBLE (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 32941-800-000

COVER, BINDER

$

$

Not available

21

Honda 32956-800-000

GROMMET, WIRE (NOT AVAILABLE)

$

$

Not available

22

Honda 37450-801-670

VOLTMETER (117V) (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 68110-801-020

GRIP (NOT AVAILABLE)

$

$

Not available

24

Honda 68121-801-000

COVER, GRIP (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 68125-801-000

HOOK, GRIP COVER

$

$

Not available

26

Honda 68142-801-000

GASKET, GRIP (NOT AVAILABLE)

$

$

Not available

27

Honda 90191-801-000

SCREW, TANK SETTING (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 90483-041-000

SEE PART DETAILS - PRI; WASHER, STOPPER

$2.49

$

Usually ships in 3-6 days

0

29

Honda 91301-801-000

O-RING (5X1.5) (NOT AVAILABLE)

$

$

Currently unavailable

30

Honda 93500-03006-0B

SCREW, PAN (3X6) (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 93500-03014

SCREW, PAN (3X14) (NOT AVAILABLE)

$

$

Currently unavailable

32

Honda 93500-05018-0A

SCREW, PAN (5X18)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 93500-06018-0A

SCREW, PAN (6X18)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94001-05000-0S

NUT, HEX. (5MM)

$2.49

$

Usually ships in 3-6 days

0
