E4500 K1 A (E4500) - Honda Generator, Made in Japan (SN: E4500-1000005 - E4500-1020560) CYLINDER HEAD + CYLINDER Parts Diagram

Generator, Made in Japan

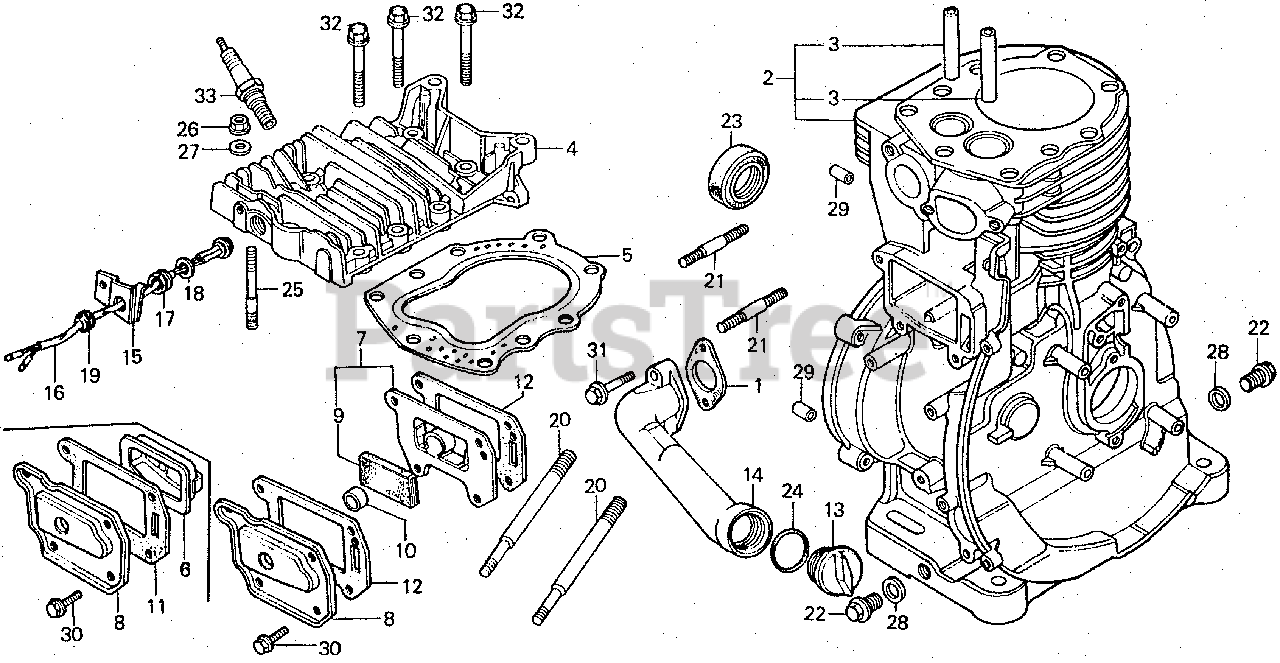

CYLINDER HEAD + CYLINDER Parts Diagram

  • Title

1

Honda 11211-822-306

GASKET, OIL PAN

$

$

Not available

2

Honda 12100-890-335

CYLINDER (CRANKSHAFT P.T.O.) (NOT AVAILABLE)

Note: Use up to Engine SN 1350779.

$

$

Currently unavailable

2

Honda 121A0-890-040

CYLINDER (CRANKSHAFT P.T.O.)

Note: Use from Engine SN 1350780.

$

$

Not available

3

Honda 12134-890-305

GUIDE, VALVE

$8.99

$

Usually ships in 3-6 days

0

4

Honda 12221-890-305

CYLINDER HEAD (NOT AVAILABLE)

$

$

Not available

5

Honda 12281-890-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD

$33.99

$

Usually ships in 3-6 days

0

5

Honda 12281-891-610

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD

$

$

Not available

6

Honda 12360-889-000

SEE PART DETAILS - SUP; CASE, BREATHER

Note: Use up to Engine SN 1213314.

$

$

Currently unavailable

6

Honda 12360-889-010

SEE PART DETAILS - PRI; CASE, BREATHER

Note: Use up to Engine SN 1213314.

$

$

Not available

7

Honda 12360-890-000

CASE, BREATHER

Note: Use from Engine SN 1213315.

$15.99

$

Usually ships in 3-6 days

0

8

Honda 12361-890-000

COVER, TAPPET

$9.49

$

Usually ships in 3-6 days

0

9

Honda 12367-890-003

FILTER, BREATHER

Note: Use from Engine SN 1213315.

$

$

Not available

10

Honda 12369-883-000

SEAL, BREATHER

Note: Use from Engine SN 1213315.

$3.99

$

Usually ships in 3-6 days

0

11

Honda 12375-ZA1-000

GASKET, TAPPET COVER

Note: Use up to Engine SN 1213314.

$2.99

$

Usually ships in 3-6 days

0

12

Honda 12375-ZA1-000

GASKET, TAPPET COVER

Note: Use from Engine SN 1213315.

$2.99

$

Usually ships in 3-6 days

0

13

Honda 15611-921-000

CAP, OIL (YELLOW)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 15632-890-010

PIPE, OIL

$

$

Not available

20

Honda 90042-890-010

BOLT, STUD (8X110)

Note: Use from Engine SN 1302193.

$7.99

$

Usually ships in 3-6 days

0

20

Honda 90042-890-680

BOLT, STUD (8X104)

Note: Use up to Engine SN 1302192.

$7.99

$

Usually ships in 3-6 days

0

21

Honda 90047-883-000

BOLT, STUD (8X35)

$4.49

$

Usually ships in 3-6 days

0

22

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

22

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$4.99

$

In Stock, Qty 9

0

23

Honda 91201-890-003

OIL SEAL (30X46X8)

$10.99

$

In Stock, Qty 7

0

24

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

In Stock, only 2 left!

0

25

Honda 90045-890-000

BOLT, STUD (10X70)

Note: Use from Engine SN 1297698.

$7.49

$

Usually ships in 3-6 days

0

25

Honda 92700-10060-0B

SEE PART DETAILS - SUP; BOLT, STUD (10X60)

Note: Use from Engine SN 1269742 to 1297697.

$

$

Currently unavailable

25

Honda 92900-10040-0B

SEE PART DETAILS - PRI; BOLT, STUD (10X40)

Note: Use from Engine SN 1269742 to 1297697.

$10.99

$

Usually ships in 3-6 days

0

26

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM)

Note: Use from Engine SN 1269742 to 1297697.

$1.99

$

In Stock, Qty 5

0

26

Honda 94050-10080

NUT, FLANGE (10MM)

Note: Use from Engine SN 1297698.

$3.99

$

In Stock, Qty 20+

0

27

Honda 90401-437-000

WASHER, PLAIN (10MM)

Note: Use from Engine SN 1297698.

$3.49

$

Usually ships in 3-6 days

0

27

Honda 94102-10000

WASHER, PLAIN (10MM)

Note: Use from Engine SN 1269742 to 1297697.

$0.99

$

In Stock, only 2 left!

0

28

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

29

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 14

0

30

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 2 left!

0

31

Honda 95700-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 95730-10055-08

BOLT, FLANGE (10X55)

Note: Use up to Engine SN 1269741.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 95730-10055-08

BOLT, FLANGE (10X55)

Note: Use from Engine SN 1269742.

$2.49

$

Usually ships in 3-6 days

0

33

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK)
(Superseded to 98076-54917)

$3.49

$

In Stock, only 2 left!

0

33

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10) (NGK)

$3.49

$

In Stock, only 2 left!

0

33

Honda 98076-54954

SPARK PLUG (W14FPR-UL10)

$3.99

$

Usually ships in 3-6 days

0
