E900 A (E900) - Honda Generator, Made in Japan (SN: E900-1006474 - E900-1028750) FAN PULLEY + V-BELT Parts Diagram

Generator, Made in Japan

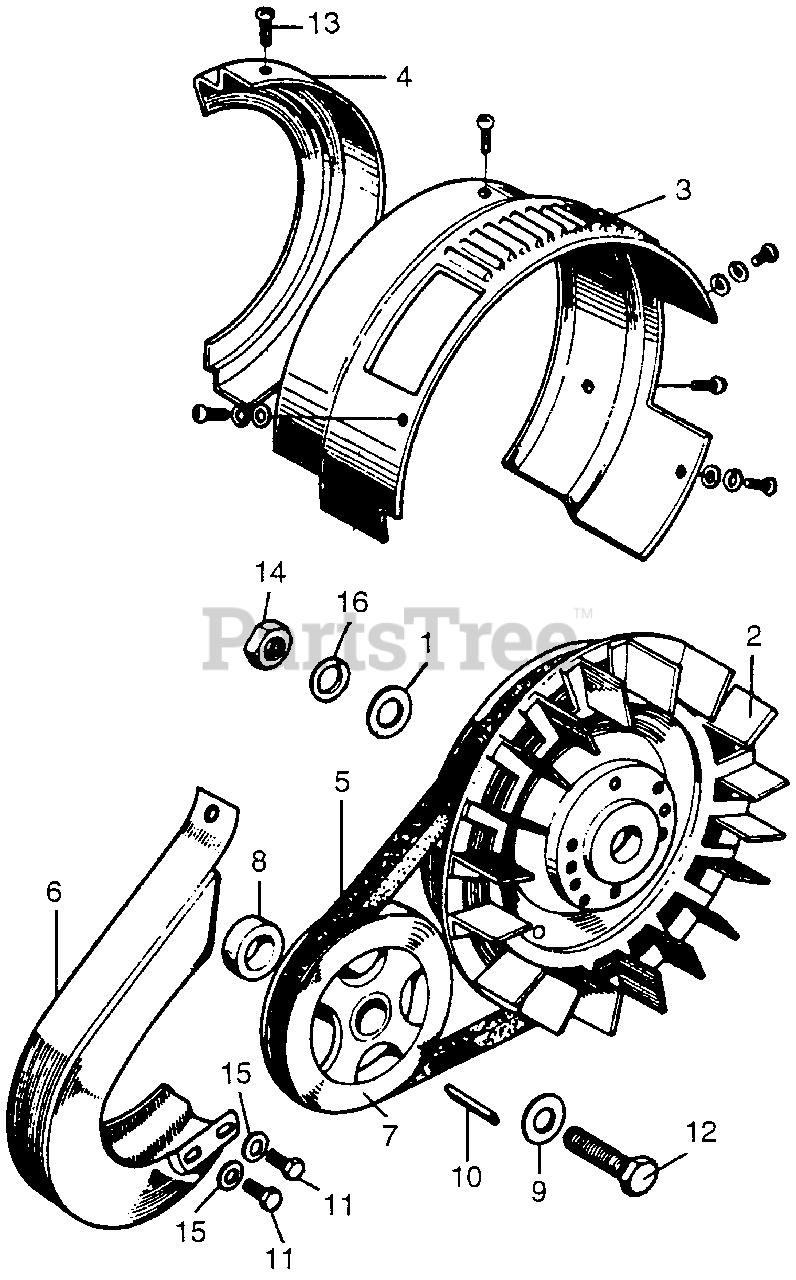

FAN PULLEY + V-BELT Parts Diagram

  • Title

1

Honda 94111-12000

WASHER, SPRING (12MM)

$1.49

$

Usually ships in 3-6 days

0

2

Honda 31111-846-158

PULLEY ASSY., FAN

$

$

Not available

3

Honda 31119-846-158F

COVER, FAN *PB6M* (CRYSTAL BLUE METALLIC)

$

$

Not available

3

Honda 31119-846-158H

COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31150-846-620F

COVER, ALTERNATOR BELT (PB6M)

$

$

Not available

4

Honda 31150-846-620H

COVER, GENERATOR BELT *R8* (BRIGHT RED)

$

$

Not available

5

Honda 49212-846-610

V-BELT (A-29) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 63610-846-000CH

COVER, BELT *NH2L* (CLOUD WHITE)

$

$

Not available

6

Honda 63610-846-000S

COVER, BELT *A03* (SILVER)

$

$

Not available

7

Honda 78252-846-610

V-PULLEY (122DIA.) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 78255-846-620

COLLAR

$

$

Not available

9

Honda 90428-844-650

WASHER (8MM)

$4.49

$

Usually ships in 3-6 days

0

10

Honda 90746-835-000

KEY (5X5X33)

$8.99

$

In Stock, only 1 left!

0

11

Honda 92101-06008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 92101-08020-0A

BOLT, HEX. (8X20)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 93500-06008

SCREW, PAN (6X8)

$1.49

$

In Stock, only 2 left!

0

13

Honda 93500-06008-0A

SCREW, PAN (6X8)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 93500-06008-0H

SEE PART DETAILS - PRI; SCREW, PAN (6X8)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94002-12000-0S

NUT, HEX. (12MM)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 94101-12000

WASHER, PLAIN (12MM)

$1.49

$

In Stock, only 1 left!

0
