E900 A (E900) - Honda Generator, Made in Japan (SN: E900-1006474 - E900-1028750) FUEL TANK + AIR CLEANER Parts Diagram

Generator, Made in Japan

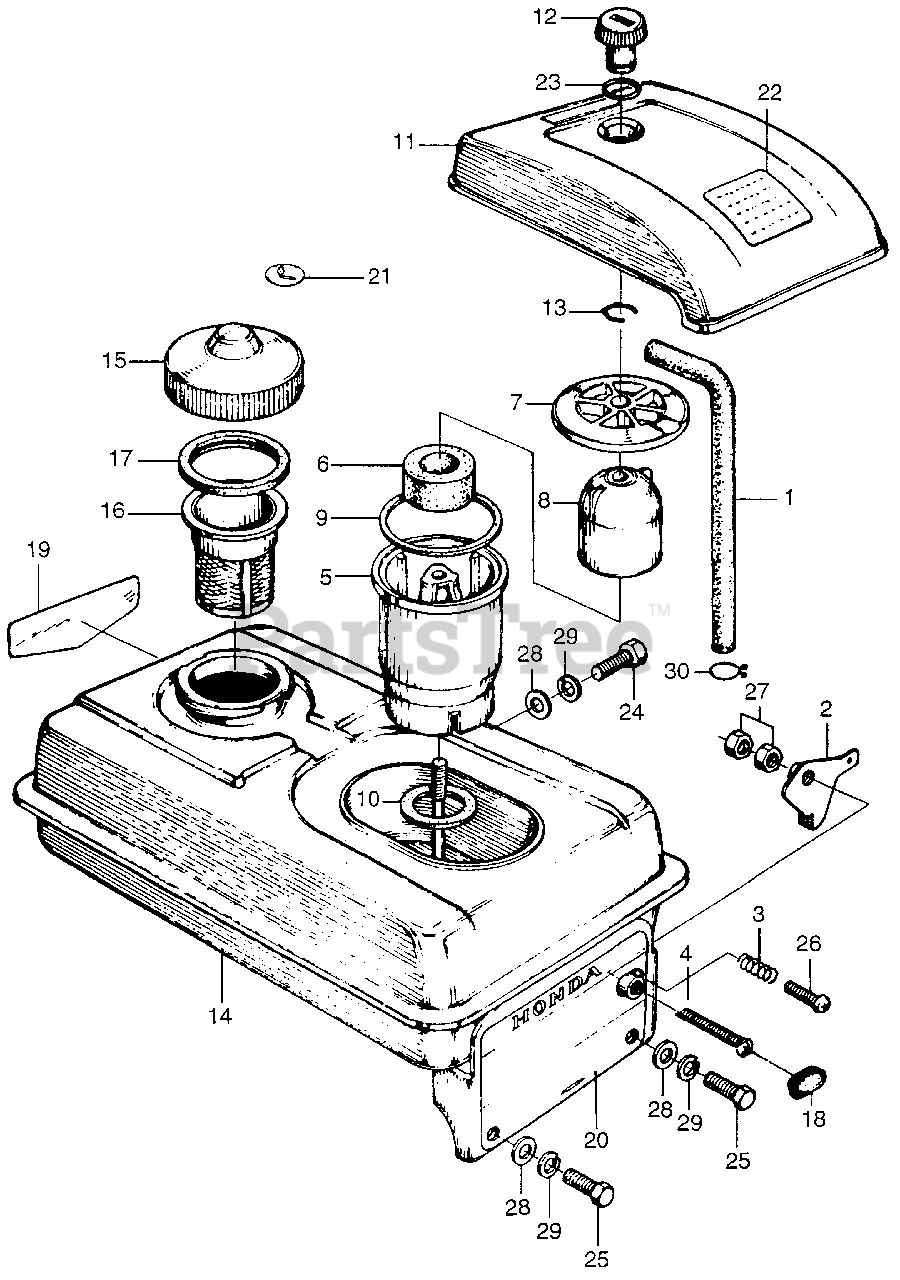

FUEL TANK + AIR CLEANER Parts Diagram

  • Title

1

Honda 11205-844-010

PIPE, BREATHER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16572-844-300

GUIDE, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16575-844-000

SPRING, STOPPER (NOT AVAILABLE)

$

$

Not available

4

Honda 93500-06065

SEE PART DETAILS - SUP; SCREW, PAN (6X65)

$

$

Currently unavailable

4

Honda 93500-06065-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X65)

$1.99

$

Usually ships in 3-6 days

0

5

Honda 17210-844-000

PAN, AIR CLEANER OIL

$

$

Not available

6

Honda 17211-844-000

ELEMENT, AIR CLEANER

$

$

Not available

7

Honda 17212-844-000

SEPARATOR A (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 17213-844-000

SEPARATOR B

$35.99

$

In Stock, only 1 left!

0

9

Honda 17215-844-000

GASKET A, CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 17216-844-000

GASKET B, CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 17230-844-000XC

SEE PART DETAILS - PRI; COVER, AIR CLEANER *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 17235-844-000

NUT, CLEANER CAP

$

$

Currently unavailable

12

Honda 17235-844-650

NUT, CLEANER CAP (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 17248-844-000

CLIP, CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 17500-844-621XC

TANK FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 17650-805-750

CAP, FUEL TANK (NOT AVAILABLE)

$

$

Not available

16

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

$

$

Not available

17

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

$

$

Not available

18

Honda 32652-844-620

GROMMET

$

$

Not available

19

Honda 87101-805-000

EMBLEM

$

$

Currently unavailable

20

Honda 87111-844-621

PLATE, CAUTION

$

$

Not available

21

Honda 87523-829-610

MARK, TANK CAP CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 87535-844-660

PLATE, CAUTION (NOT AVAILABLE)

$

$

Currently unavailable

23

Honda 91304-216-000

O-RING (11.5X2)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 92101-06020-0A

BOLT, HEX. (6X20)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

26

Honda 93500-04012-0A

SCREW, PAN (4X12)

$0.99

$

Usually ships in 3-6 days

0

27

Honda 94002-06000-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

29

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$2.49

$

In Stock, only 2 left!

0
