E900 A (E900) - Honda Generator, Made in Japan (SN: E900-1006474 - E900-1028750) MUFFLER + LOWER PLATE Parts Diagram

Generator, Made in Japan

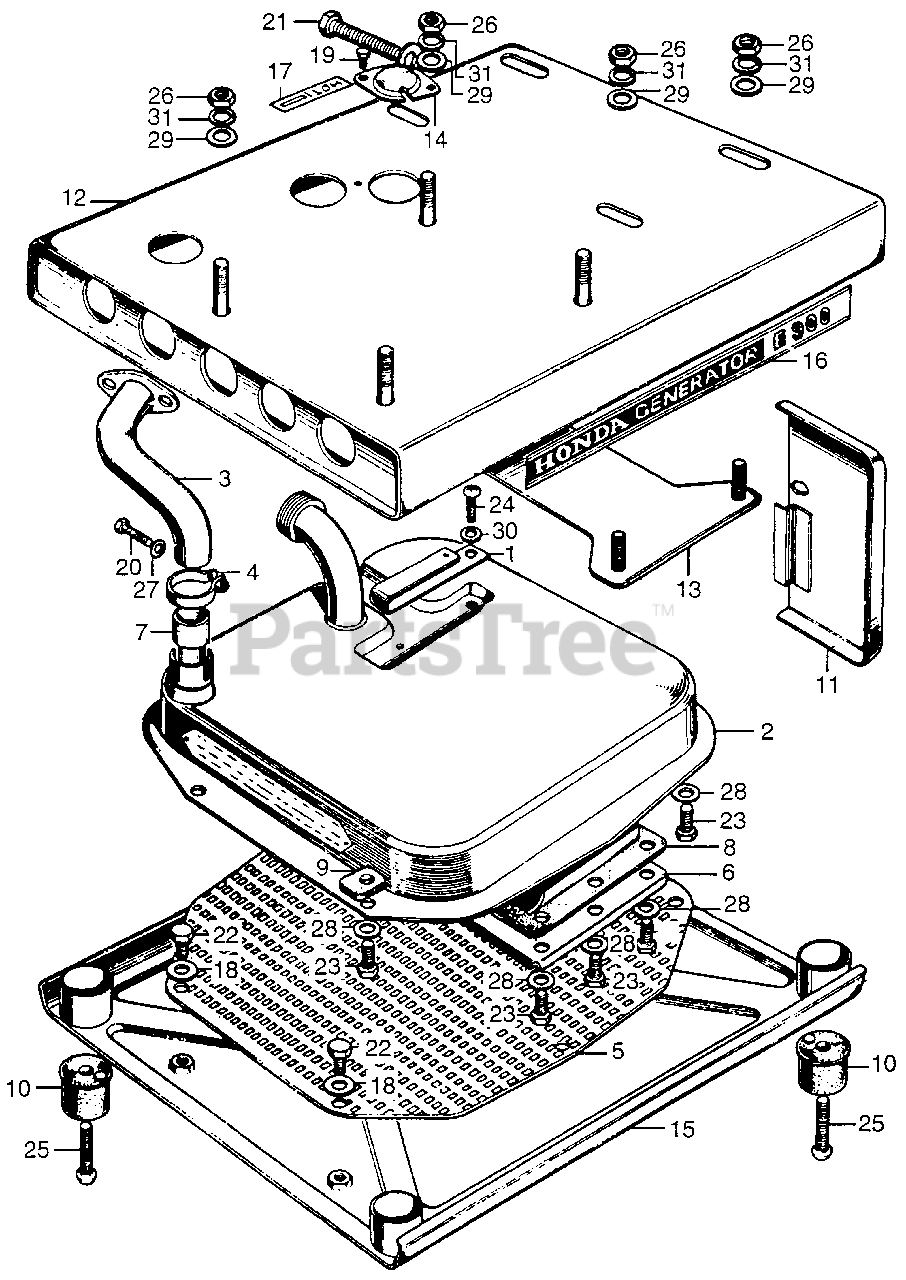

MUFFLER + LOWER PLATE Parts Diagram

  • Title

1

Honda 16650-844-621

BIMETAL, AUTO CHOKE

$

$

Currently unavailable

2

Honda 18300-844-622

MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 18311-846-622

PIPE, EX. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 18312-846-620

CONNECTOR, EX. PIPE

$

$

Not available

5

Honda 18330-846-621

PROTECTOR, MUFFLER

$

$

Not available

6

Honda 18350-844-620

COVER, SPARK ARRESTER (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 18351-846-620

SEAL, EX. PIPE

$7.99

$

Usually ships in 3-6 days

0

8

Honda 18360-844-620

GASKET, SPARK ARRESTER

$

$

Not available

9

Honda 18369-812-010

STOPPER, PROTECTOR

$

$

Not available

10

Honda 60407-812-000

RUBBER (LOWER)
(Superseded to 60407-812-001)

$20.99

$

In Stock, only 1 left!

0

11

Honda 63501-844-620F

COVER, R. SIDE *PB6M* (CRYSTAL BLUE METALLIC)

$

$

Not available

11

Honda 63501-844-620H

COVER, R. SIDE *R8* (BRIGHT RED)

$

$

Not available

12

Honda 68400-846-621CH

BED, ENGINE *Y20* (CLOUD WHITE)

$

$

Not available

12

Honda 68400-846-621S

BED, ENGINE *NH10M* (DARK SILVER METALLIC)

$

$

Not available

13

Honda 68401-846-620

SET BOLT, ALTERNATOR

$100.99

$

Usually ships in 3-6 days

0

14

Honda 68402-846-620

COVER, BIMETAL

$

$

Not available

15

Honda 68403-846-621

PLATE (LOWER)

$

$

Not available

16

Honda 87101-846-620

MARK, TOP

$

$

Not available

17

Honda 87539-836-700

PLATE, EX. CAUTION

$

$

Not available

18

Honda 90417-001-000

WASHER, SHIFT DRUM SIDE (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 92000-05028-0A

SEE PART DETAILS - SUP; BOLT, HEX. (5X28)

$

$

Currently unavailable

20

Honda 92101-05028-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X28)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 92045-08050-0A

BOLT, HEX. (8X50)

$

$

Currently unavailable

22

Honda 92101-06012-0B

BOLT, HEX. (6X12)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

24

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 10

0

25

Honda 93500-06030-0A

SCREW, PAN (6X30)

$0.99

$

Usually ships in 3-6 days

0

26

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

28

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

29

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

30

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0
