EA 100 (UT-15502) - Homelite Expand-It Attachment Edger Parts Diagram

Expand-It Attachment

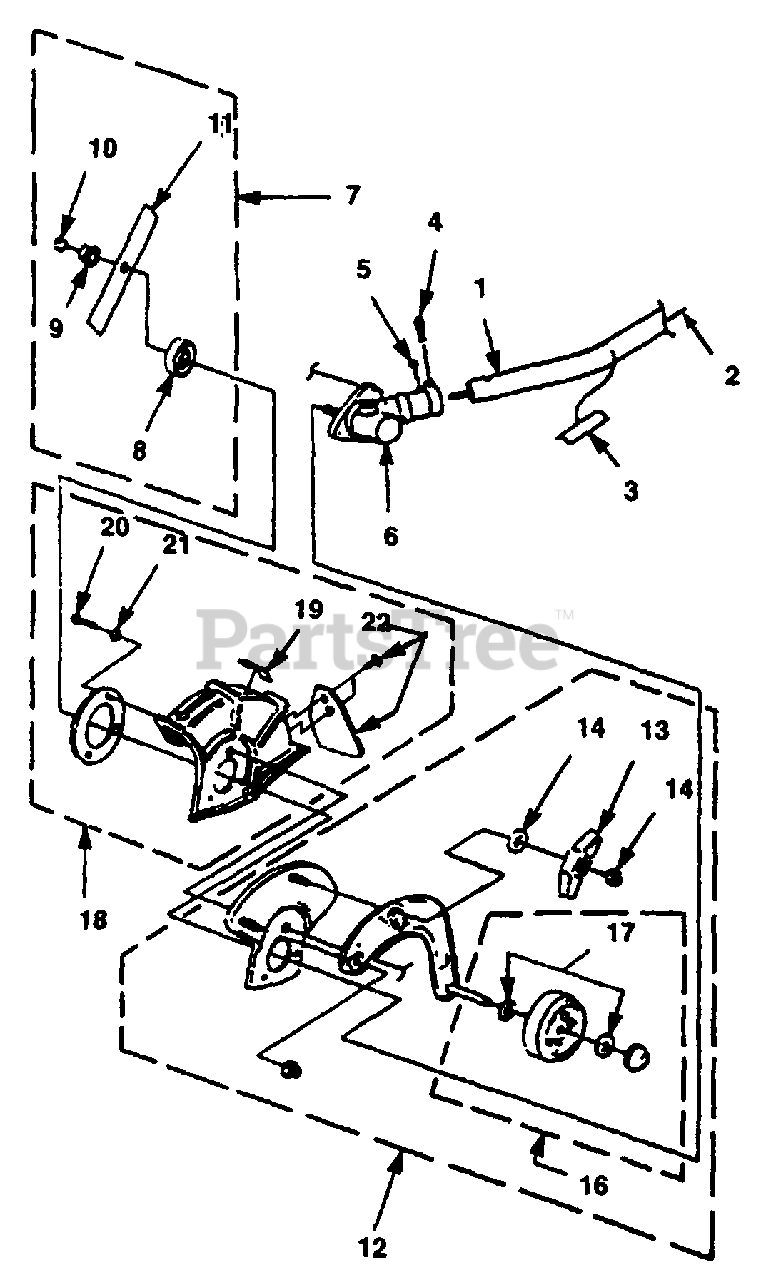

Edger Parts Diagram

  • Title

1

Homelite A07931

DRIVE SHAFT HOUSING
(Superseded to A07931A)

$

$

Not available

2

Homelite A07679

SHAFT - Flexible

$14.99

$

Usually ships in 3-7 days

0

3

Homelite 02985

DECAL - Warning
(Superseded to 983751001)

$

$

Not available

4

Homelite 82586

SCREW - Cap Socket Hd. (1/4-20 X 7/8")

$5.99

$

Usually ships in 3-7 days

0

5

Homelite 88049

SCREW - Sems Hex Hd. (10-24 X 1/2")

$

$

Not available

6

Homelite A04151

GEAR HEAD
(Superseded to UP06866A)

$129.99

$

Usually ships in 3-7 days

0

7

Homelite A06281

BLADE KIT
(Superseded to UP06879)

$28.99

$

Usually ships in 3-7 days

0

8

Homelite 04168A

WASHER - Flanged
(Superseded to 099078001005)

$12.99

$

Usually ships in 3-7 days

0

9

Homelite 04409

WASHER - Flanged

Note: Lower

$4.99

$

In Stock, only 2 left!

0

10

Homelite 04277

NUT - Lock
(Superseded to 678018001)

$

$

Not available

11

Homelite D04359

BLADE, 2" X 9"

Note: Qty.2

$

$

Currently unavailable

12

Homelite A06280

SUPPORT ARM ASSEMBLY
(Superseded to UP06881)

$75.99

$

Usually ships in 3-7 days

0

13

Homelite 06364

KNOB - Adjusting
(Superseded to UP04132)

$

$

Not available

14

Homelite 81162

NUT - Hex

$

$

Not available

?15

Homelite 84010

WASHER - Flat
(Superseded to PS84010)

$

$

Not available

16

Homelite A06279

WHEEL KIT
(Superseded to UP06882)

$

$

Not available

17

Homelite 84010

WASHER - Flat
(Superseded to PS84010)

$

$

Not available

18

Homelite A06277A

GUARD KIT
(Superseded to UP06738A)

$

$

Not available

19

Homelite 03871

DECAL - Warning
(Superseded to UP04532)

$

$

Not available

20

Homelite 82593

SCREW - Hex Hd. (10-24 X 5/8")

$5.99

$

Usually ships in 3-7 days

0

21

Homelite 83046

WASHER - Lock

Note: #10

$

$

Not available

22

Homelite A06296

FLAP KIT
(Superseded to UP06883)

$

$

Not available
