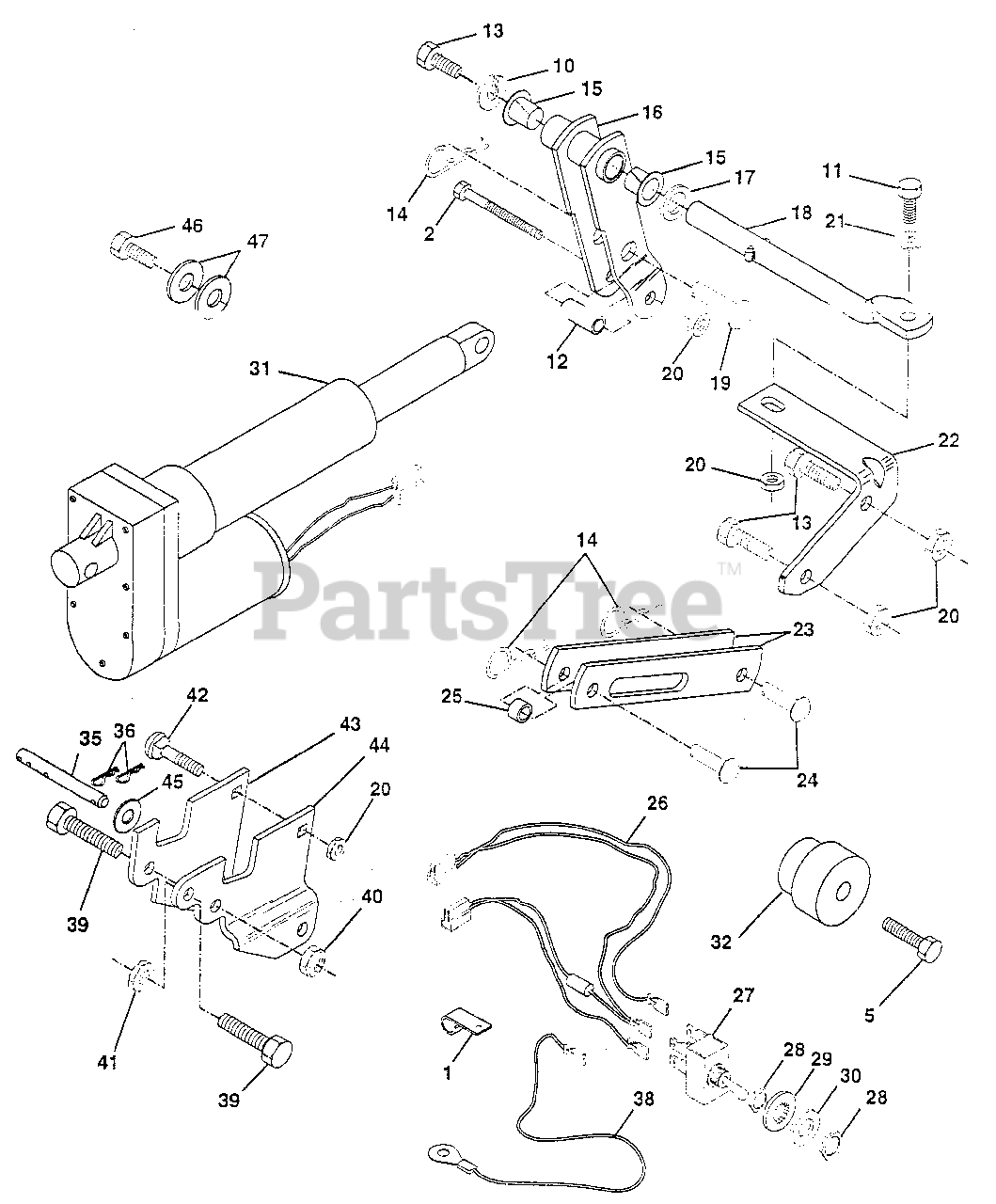

EA 20 A - Husqvarna Electric Lift Kit (1994-04) Electric Actuator - Hydrostatic Drive, Vertical Engine Type Tractor Parts Diagram

Electric Lift Kit

Electric Actuator - Hydrostatic Drive, Vertical Engine Type Tractor Parts Diagram

  • Title

1

Husqvarna 4171R

Clip, Insulated

$

$

Not available

2

Husqvarna 74520636

Bolt, Hex 3/8-16 x 2-1/4 Grade 5
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 74760622

Bolt. Hex 3/8-16 x 1-3/8
(Superseded to 874760622)

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 10040600

Washer, Lock
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 74760620

Bolt, Hex 3/8-16 x 1-1/4

$

$

Not available

12

Husqvarna 5950J

Bushing .384 x 1/2 x 1-1/4

$

$

Not available

13

Husqvarna 74760614

Bolt, Hex 3/8-16 x 7/8

$

$

Not available

14

Husqvarna 4939M

Spring, Retainer

$

$

Not available

15

Husqvarna 139276

Nyliner

$

$

Not available

16

Husqvarna 138908

Arm, Pivot
(Superseded to 532138908)

$36.99

$

Usually ships in 3-10 days

0

17

Husqvarna 19211621

Washer 21/32 x 1 x 21 Ga.
(Superseded to 819211621)

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 138914

Rod, Pivot Support

$9.99

$

Usually ships in 3-10 days

0

19

Husqvarna 138948

Pin, Pivot

$

$

Not available

20

Husqvarna 73800600

Locknut 3/8-16

$

$

Not available

21

Husqvarna 19131416

Washer 13/32 x 7/8 x 16 Ga.

$

$

Not available

22

Husqvarna 138912

Bracket, Pivot Rod

$18.99

$

Usually ships in 3-10 days

0

23

Husqvarna 138905

Link, Lift

$

$

Not available

24

Husqvarna 138947

Pin, Pivot

$

$

Not available

25

Husqvarna 138909

Spacer
(Superseded to 532138909)

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 127017X

Harness, Lift Kit

$

$

Not available

27

Husqvarna 8984R

Switch, Lift

$

$

Not available

28

Husqvarna 7320R

Nut, Switch

$

$

Not available

29

Husqvarna 7319R

Washer, Lock Int. Tooth

$

$

Not available

30

Husqvarna 19151216

Washer 15/32 x 3/4 x 16 Ga.

$

$

Not available

31

Husqvarna 124371X

Electric, Actuator

$

$

Not available

32

Husqvarna 105624X

Hub, Lever Lift
(Superseded to 532105624)

$12.99

$

Usually ships in 3-10 days

0

35

Husqvarna 140877

Pin, Actuator

$

$

Not available

36

Husqvarna 4940M

Spring, Retainer

$

$

Not available

38

Husqvarna 9698R

Wire, Ground

$

$

Not available

39

Husqvarna 74780720

Bolt, Hex 7/16-14 x 1-1/4
(Superseded to 874780720)

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 73350700

Jam Nut 7/16-14
(Superseded to 873350700)

$2.99

$

Usually ships in 3-10 days

0

41

Husqvarna 73800700

Locknut 7/16-14
(Superseded to 873800700)

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 72140610

Carriage Bolt 3/8-16 x 1-1/4

$

$

Not available

43

Husqvarna 140876

LH Actuator Bracket, Hydro

$6.49

$

Usually ships in 3-10 days

0

44

Husqvarna 140875

RH Actuator Bracket, Hydro

$8.99

$

Usually ships in 3-10 days

0

45

Husqvarna 19171216

Washer 17/32 x 3/4 x 16 Ga.

$2.99

$

Usually ships in 3-10 days

0

46

Husqvarna 74760520

Bolt, Hex 5/16-18 x 1-1/4

$2.49

$

Usually ships in 3-10 days

0

47

Husqvarna 19112410

Washer 11/32 x 1-1/2 x 10 Ga.
(Superseded to 819112410)

$6.49

$

Usually ships in 3-10 days

0
