EA-400 - Echo Earth Auger Carburetor -- WYK-152C Parts Diagram

Earth Auger

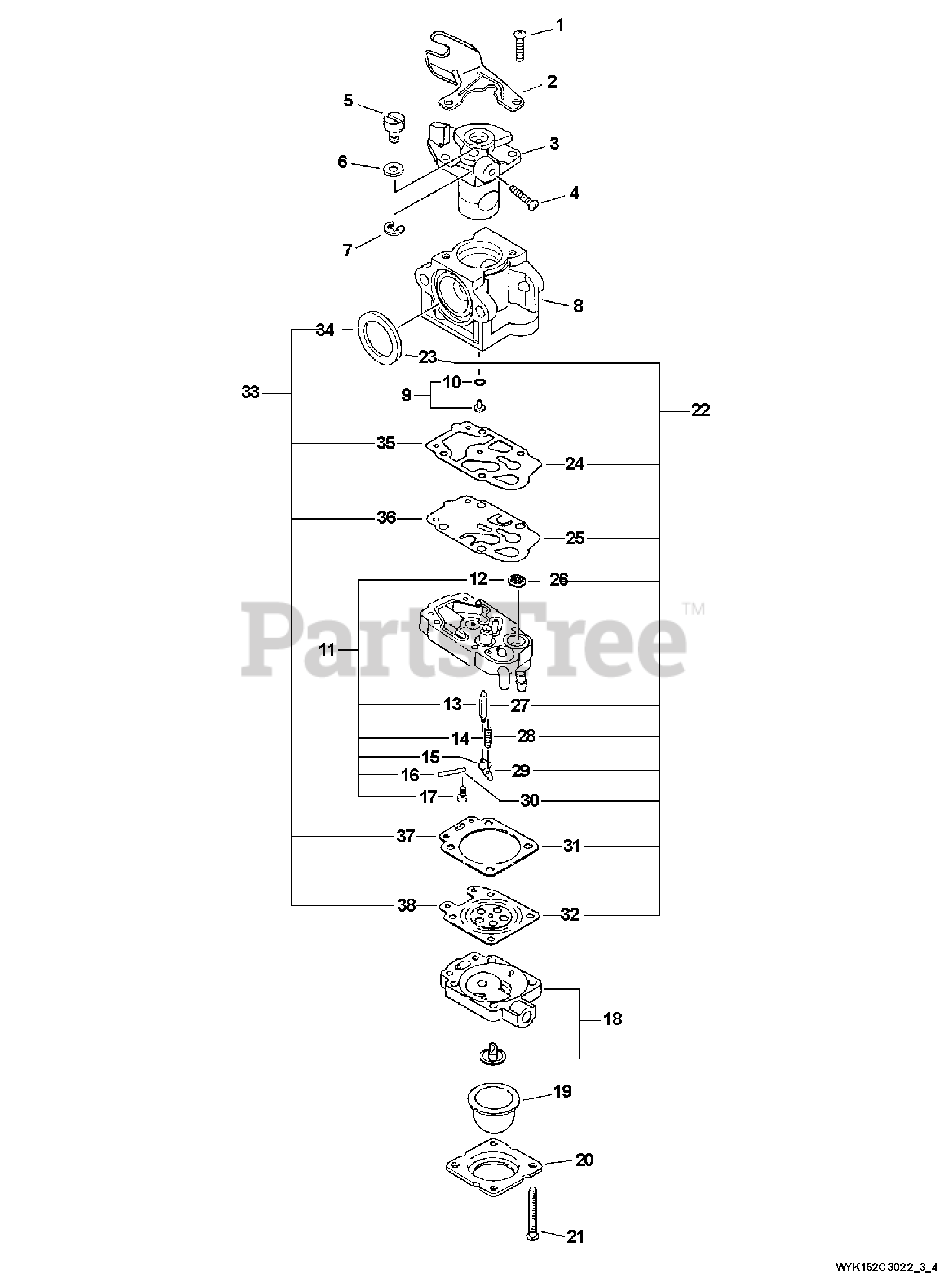

Carburetor -- WYK-152C Parts Diagram

  • Title

Echo A021000302

CARBURETOR - WYK-152C
(Superseded to Discontinued)

$

$

Not available

1

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

2

Echo P003000180

BRACKET, THROTTLE CABLE

$6.99

$

In Stock, only 2 left!

0

3

THROTTLE VALVE ASSY

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

4

Echo 12313440030

SCREW

$1.49

$

Usually ships in 2-4 days

0

5

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

6

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

7

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

8

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

9

Echo P003000690

JET KIT

Note: Includes ITEM 10

$4.49

$

Usually ships in 2-4 days

0

10

Echo 12318305960

O-RING

$19.99

$

In Stock, only 2 left!

0

11

Echo P003000510

BODY ASSY, PUMP

Note: Includes ITEMS 12-17

$17.99

$

In Stock, only 2 left!

0

12

STRAINER

$

$

Not available

13

VALVE, INLET NEEDLE

$

$

Not available

14

SPRING, METERING LEVER

$

$

Not available

15

LEVER, METERING

$

$

Not available

16

PIN, METERING LEVER

$

$

Not available

17

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

18

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

19

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

20

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 1 left!

0

21

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0

22

Echo P003000660

REPAIR KIT
(Superseded to P003001120)

Note: Includes ITEMS 23-32

$26.99

$

In Stock, Qty 20+

0

23

SEAL

$

$

Not available

24

GASKET, PUMP

$

$

Not available

25

DIAPHRAGM, PUMP

$

$

Not available

26

STRAINER

$

$

Not available

27

VALVE, INLET NEEDLE

$

$

Not available

28

SPRING, METERING LEVER

$

$

Not available

29

LEVER, METERING

$

$

Not available

30

PIN, METERING LEVER

$

$

Not available

31

GASKET, DIAPHRAGM

$

$

Not available

32

DIAPHRAGM, METERING

$

$

Not available

33

Echo P003000650

GASKET / DIAPHRAGM KIT
(Superseded to P003001120)

Note: Includes ITEMS 34-38

$26.99

$

In Stock, Qty 20+

0

34

SEAL

$

$

Not available

35

GASKET, PUMP

$

$

Not available

36

DIAPHRAGM, PUMP

$

$

Not available

37

GASKET, DIAPHRAGM

$

$

Not available

38

DIAPHRAGM, METERING

$

$

Not available
