EA-400 - Echo Earth Auger Engine, Short Block -- SB1059, Decompression Assembly Parts Diagram

Earth Auger

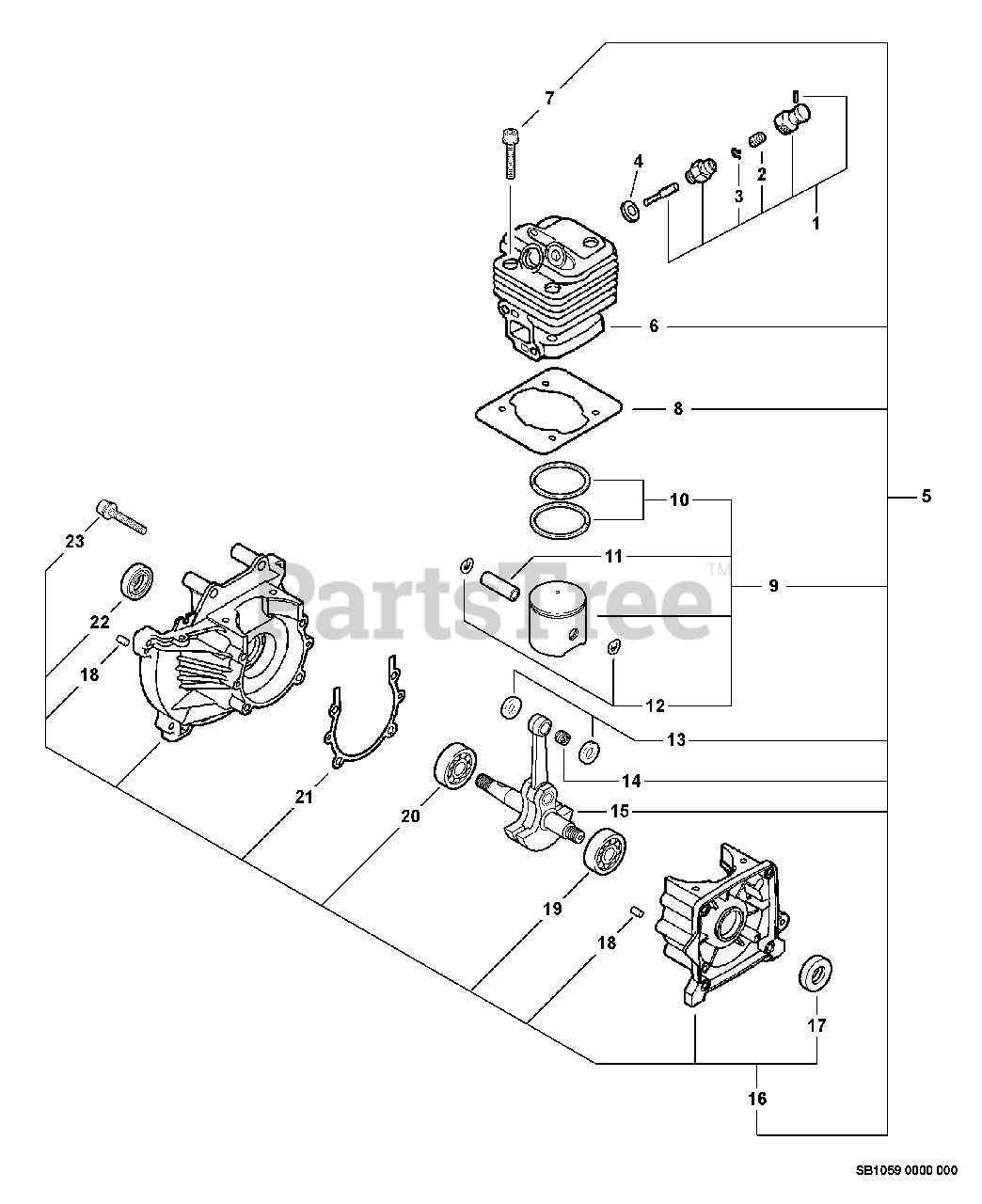

Engine, Short Block -- SB1059, Decompression Assembly Parts Diagram

  • Title

1

Echo A014000000

VALVE, DECOMPRESSION

Note: INCLUDES ITEMS 2-3

$72.99

$

In Stock, only 1 left!

0

2

Echo 10111337530

SPRING

$1.49

$

Usually ships in 2-4 days

0

3

Echo P022002110

CLIP

$1.49

$

Usually ships in 2-4 days

0

4

Echo 15902537530

GASKET
(Superseded to V109000150)

$1.99

$

Usually ships in 2-4 days

0

5

Echo SB1059

SHORT BLOCK

Note: INCLUDES ITEMS 6-23

$435.99

$

Usually ships in 2-4 days

0

6

Echo A130000230

CYLINDER

$186.99

$

Usually ships in 2-4 days

0

7

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

8

Echo V100000040

GASKET, CYLINDER

$3.99

$

In Stock, only 2 left!

0

9

Echo P021002910

PISTON KIT
(Superseded to P021002911)

Note: Includes ITEMS 10-12

$

$

Not available

10

Echo 100011-10530

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

11

Echo V608000000

PIN, PISTON 10

$6.99

$

Usually ships in 2-4 days

0

12

Echo 100015-00120

RING, SNAP 8

$0.99

$

In Stock, Qty 10

0

13

Echo V307000060

WASHER, THRUST

$7.99

$

Usually ships in 2-4 days

0

14

Echo 10001212331

BEARING, NEEDLE 10

$13.99

$

In Stock, only 2 left!

0

15

Echo A011000120

CRANKSHAFT ASSY

$260.99

$

In Stock, only 1 left!

0

16

Echo P021002471

CRANKCASE KIT

Note: Includes ITEMS 17-23

$235.99

$

Usually ships in 2-4 days

0

17

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 16

0

18

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

19

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

20

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

21

Echo V102000001

GASKET, CRANKCASE

$1.99

$

Usually ships in 2-4 days

0

22

Echo 100213-00310

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

23

Echo 90016205035

BOLT M5×35

$1.99

$

In Stock, Qty 16

0
