EA-400 - Echo Earth Auger Fuel System Parts Diagram

Earth Auger

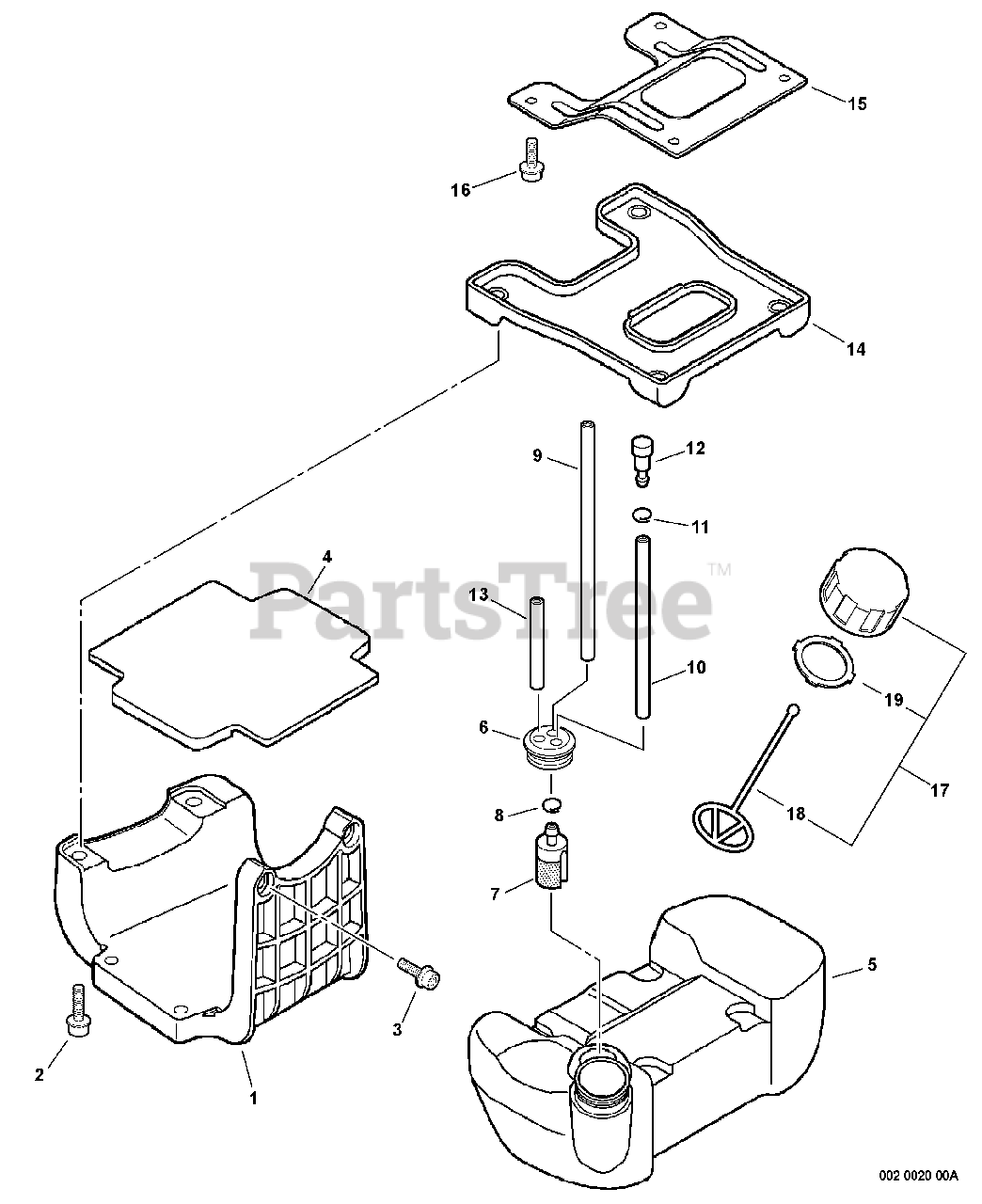

Fuel System Parts Diagram

  • Title

1

Echo A393000050

BRACKET, FUEL TANK

$28.99

$

Usually ships in 2-4 days

0

2

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 5

0

3

Echo 90010605025

SCREW - 5X25

$1.49

$

In Stock, Qty 20+

0

4

Echo A390000010

CUSHION, TANK - LOWER

$10.99

$

Usually ships in 2-4 days

0

5

Echo A350000131

TANK, FUEL

$43.99

$

Usually ships in 2-4 days

0

6

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.99

$

In Stock, Qty 20+

0

7

Echo 13120519830

FILTER, FUEL
(Superseded to 13120519831)

$9.99

$

In Stock, Qty 20+

0

8

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

9

Echo 13201053630

PIPE - 3X6X180 -- BLACK
(Superseded to 13201053631)

Note: RePower BULK OPTION: 90015

$3.49

$

In Stock, only 2 left!

0

10

Echo 13201202960

PIPE - 3X6X120 -- BLACK
(Superseded to 13201202961)

Note: RePower BULK OPTION: 90015

$4.49

$

Usually ships in 2-4 days

0

11

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

12

Echo A356000031

VENT, FUEL TANK

$9.49

$

In Stock, Qty 20+

0

13

Echo 43721520760

PIPE - 3X6X60 -- CLEAR

$2.49

$

In Stock, only 2 left!

0

14

Echo A390000000

CUSHION, TANK - UPPER

$13.99

$

Usually ships in 2-4 days

0

15

Echo A393000030

BRACKET, FUEL TANK

$11.99

$

Usually ships in 2-4 days

0

16

Echo 90010605012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

17

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 18-19

$7.49

$

In Stock, Qty 20+

0

18

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, only 4 left!

0

19

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 19

0
