EA-410 - Echo Earth Auger (SN: E01904001001 - E01904999999) Intake Parts Diagram

Earth Auger

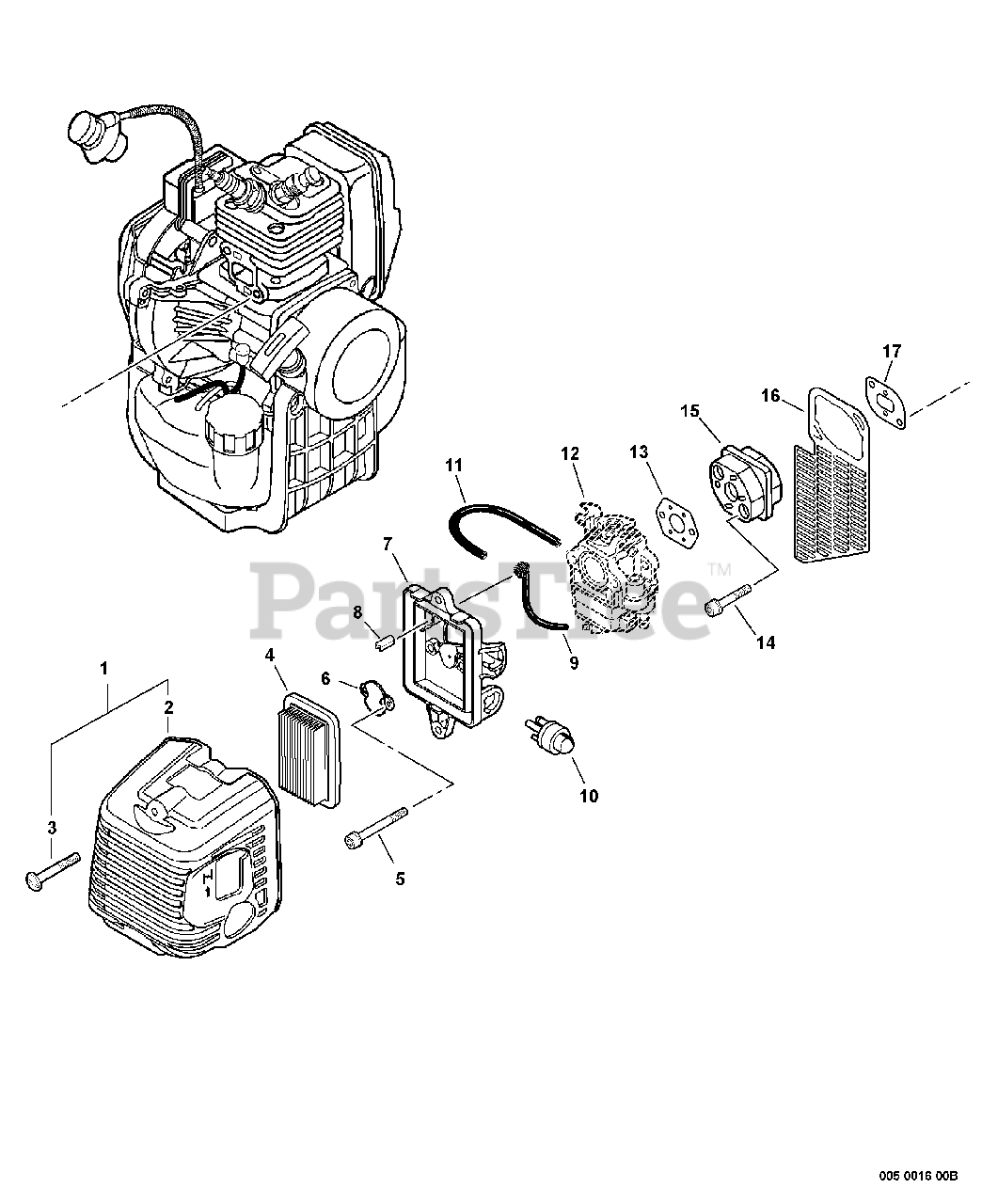

Intake Parts Diagram

  • Title

1

Echo P021012110

COVER ASSY, AIR FILTER

Note: Includes ITEMS 2-3

$22.99

$

In Stock, only 2 left!

0

2

Echo A232000390

COVER, AIR FILTER

$17.99

$

Usually ships in 2-4 days

0

3

Echo V253000100

SCREW 5×20

$2.49

$

Usually ships in 2-4 days

0

4

Echo A226000360

FILTER, AIR
(Superseded to A226000361)

$27.99

$

In Stock, Qty 5

0

5

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

6

Echo A244000010

PLATE, PREVENT

$3.49

$

In Stock, only 2 left!

0

7

Echo P021009590

CASE, AIR FILTER

$15.99

$

In Stock, only 2 left!

0

8

Echo A239000050

PIPE, INTAKE

$3.49

$

Usually ships in 2-4 days

0

9

Echo 13201239331

GROMMET, W/VENT PIPE 3×6×105
(Superseded to 13201239332)

$15.99

$

In Stock, only 3 left!

0

10

Echo 12318139130

BULB, PURGE

$8.49

$

In Stock, Qty 20+

0

11

Echo V471001560

PIPE, FUEL 2.4×5×80 BLACK
(Superseded to V471001561)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 6

0

12

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

13

Echo V103000080

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

In Stock, Qty 20+

0

14

Echo 900106-05025

BOLT 5×25
(Superseded to 90010605025)

$1.49

$

In Stock, Qty 20+

0

15

Echo A200000060

INSULATOR, INTAKE

$17.99

$

In Stock, only 2 left!

0

16

Echo A128000060

SHIELD, DEBRIS

$7.49

$

Usually ships in 2-4 days

0

17

Echo V103000070

GASKET, INTAKE

Note: Included In GASKET KIT

$1.99

$

Usually ships in 2-4 days

0
