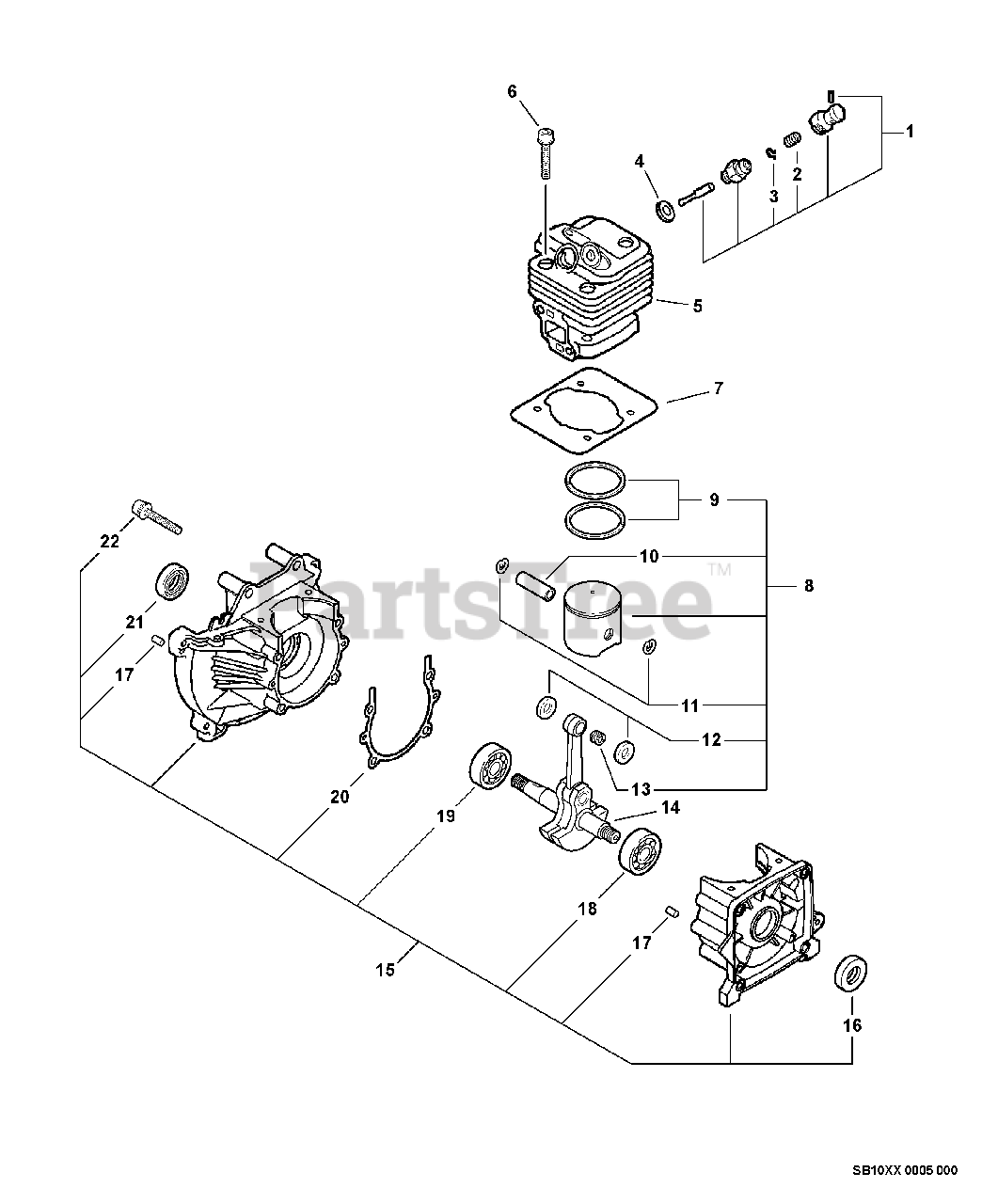

EA-500 - Echo Earth Auger (SN: E03004001001 - E03004999999) Engine, Decompression Assembly S/N: 04001001 - 04001146 Parts Diagram

Earth Auger

Engine, Decompression Assembly S/N: 04001001 - 04001146 Parts Diagram

  • Title

1

Echo A014000000

DECOMPRESSION ASSY

Note: INCLUDES ITEMS 2-3

$60.99

$

In Stock, only 3 left!

0

2

Echo 10111337530

SPRING

$1.49

$

Usually ships in 2-4 days

0

3

Echo P022002110

CLIP

$1.49

$

Usually ships in 2-4 days

0

4

Echo 15902537530

WASHER
(Superseded to V109000150)

$1.99

$

Usually ships in 2-4 days

0

5

Echo A130000451

CYLINDER
(Superseded to P021009692)

$

$

Not available

6

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

7

Echo V100000040

GASKET, CYLINDER

$3.49

$

In Stock, only 2 left!

0

8

Echo P021005000

PISTON KIT
(Superseded to P021005001)

Note: INCLUDES ITEMS 9-13

$

$

Not available

9

Echo 10001110530

RING, PISTON

$7.49

$

In Stock, Qty 16

0

10

Echo V608000000

PIN, PISTON

$5.99

$

Usually ships in 2-4 days

0

11

Echo 10001500120

RING, RETAINING - 8

$0.99

$

In Stock, Qty 12

0

12

Echo V307000060

WASHER - 10

$6.49

$

Usually ships in 2-4 days

0

13

Echo 10001212331

BEARING, NEEDLE

$10.99

$

In Stock, Qty 11

0

14

Echo A011000120

CRANKSHAFT ASSY

$217.99

$

In Stock, only 1 left!

0

15

Echo P021002471

CRANKCASE KIT

Note: Includes ITEMS 16-22

$196.99

$

Usually ships in 2-4 days

0

16

Echo 10021305530

SEAL, OIL

$6.49

$

In Stock, Qty 9

0

17

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 9

0

18

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 14

0

19

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

20

Echo V102000001

GASKET, CRANKCASE

$1.49

$

Usually ships in 2-4 days

0

21

Echo 10021300310

SEAL, OIL

$5.49

$

In Stock, Qty 12

0

22

Echo 90016205035

SCREW - 5X35

$1.49

$

In Stock, Qty 16

0
