EAV 20 A - Husqvarna Electric Lift Kit for Gear Drive Tractors (2001-05) Actuator Breakdown Parts Diagram

Electric Lift Kit for Gear Drive Tractors

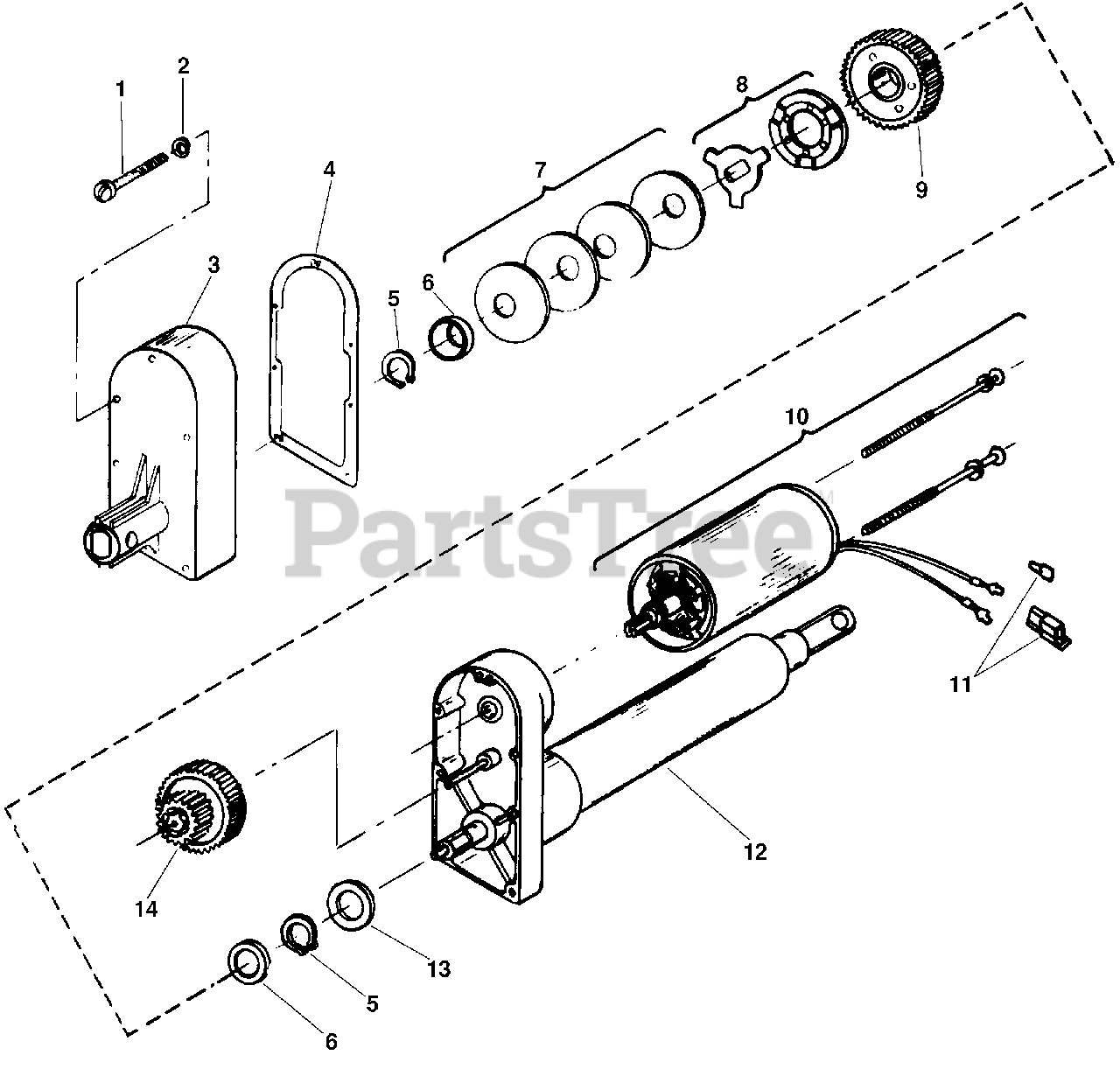

Actuator Breakdown Parts Diagram

  • Title

1

Husqvarna 1862J

Screw - Sl. Fil. Hd. Mach. No. 10-32 x 1-5/8

$

$

Not available

2

Husqvarna 1863J

Lockwasher - No. 10

$

$

Not available

3

Husqvarna 8331J

Housing Cover

$

$

Not available

4

Husqvarna 1857J

Cover Gasket

$

$

Not available

5

Husqvarna 1865J

Snap Ring

$

$

Not available

6

Husqvarna 1864J

Retaining Ring

$

$

Not available

7

Husqvarna 677A149

Spring Washer
(Superseded to 532677149)

Note: (Use 3 or 4 as req'd.)

$

$

Not available

8

Husqvarna 674A281

Pawl & Ramp Washer
(Superseded to 532674281)

$

$

Not available

9

Husqvarna 1859J

Out put Gear

$

$

Not available

10

Husqvarna 1861J

Motor - 12V

$

$

Not available

11

Husqvarna 673A218

Connector Body Kit
(Superseded to 532673218)

$

$

Not available

12

Not Serviced Separately Order complete actuator Part# 124371X

$

$

Not available

13

Husqvarna 1860J

Thrust Washer

$

$

Not available

14

Husqvarna 1858J

Intermediate Gear

$

$

Not available

Husqvarna 124371X

Electric, Actuator

$

$

Not available
