EB 200 - Weed Eater Blower, Electric Electric Blower Assembly Parts Diagram

Blower, Electric

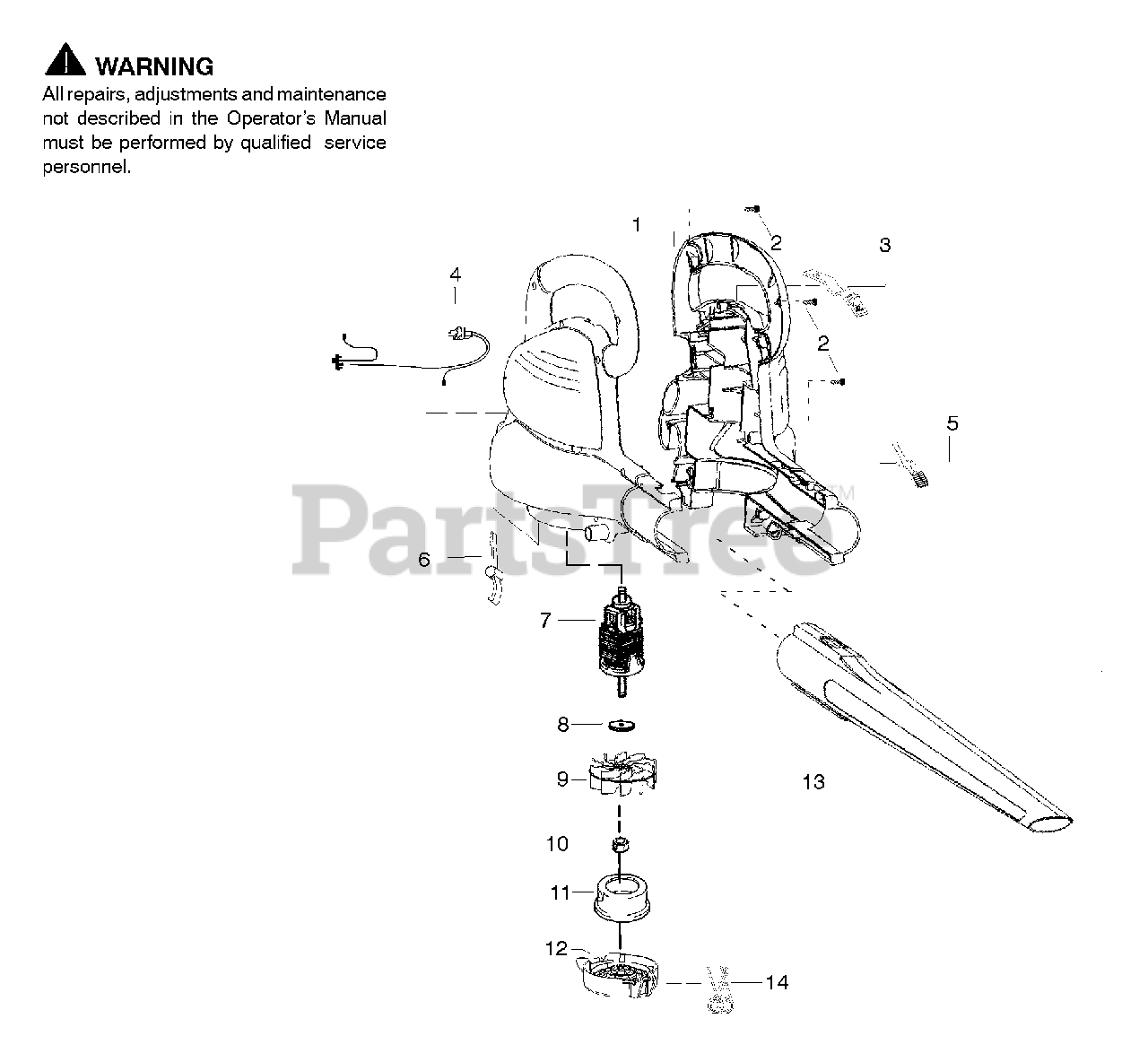

Electric Blower Assembly Parts Diagram

  • Title

1

Poulan 530403785

Housing Set

Note: (Incl. #5)

$

$

Not available

2

Poulan 530016120

Screw

$3.49

$

In Stock, Qty 10

0

3

Poulan 530403764

Cover - Switch

$

$

Not available

4

Poulan 530403778

Assy. Wiring Harness
(Superseded to 545124301)

Note: (Incl. switch)

$

$

Not available

5

Poulan 530403775

Button - Tube Latch
(Superseded to 530404367)

$

$

Not available

6

Poulan 545028801

Button - Door Latch

$

$

Not available

7

Poulan 530403770

Assy. Motor

$

$

Not available

8

Poulan 530403834

Washer

$

$

Not available

9

Poulan 530403771

Impeller

$

$

Not available

10

Poulan 545006201

Nut - Impeller
(Superseded to 545162101)

$

$

Not available

11

Poulan 530403791

Restrictor - Inlet

$

$

Not available

12

Poulan 530403788

Door - Vacuum Inlet

$

$

Not available

13

Poulan 530404358

Tube - Blower
(Superseded to 530403765)

$62.99

$

In Stock, only 2 left!

0

14

Poulan 530403833

Spring - Door

$3.49

$

In Stock, only 1 left!

0

Poulan 545117533

Manual - Operator's

Note: Not Shown

$

$

Not available

Poulan 545141604

Decal - Warning

Note: Not Shown

$

$

Not available
