EB 212 - Shindaiwa Handheld Blower (SN: P02411001001 - P02411999999) FUEL SYSTEM Parts Diagram

Handheld Blower

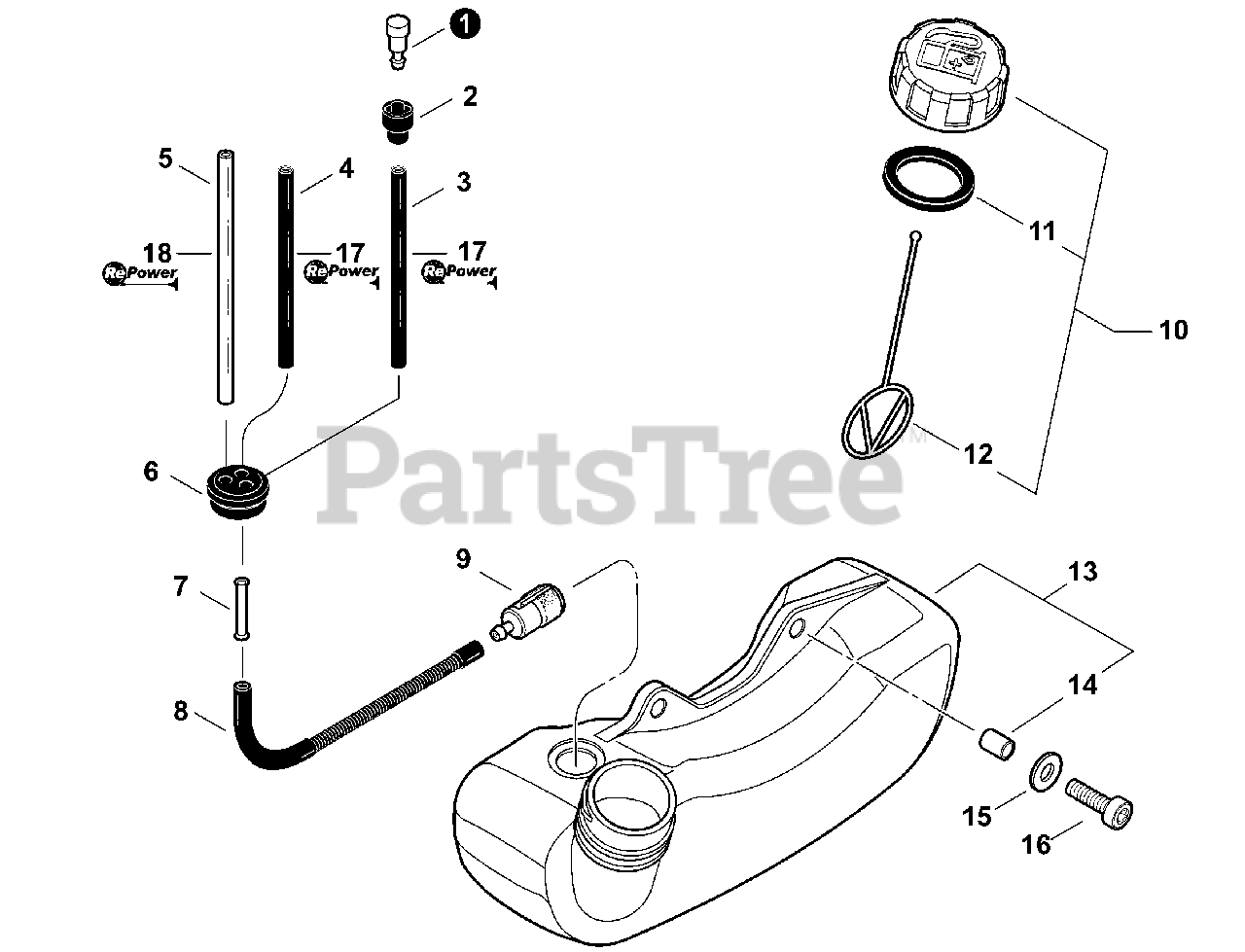

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

2

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

3

Echo V471001200

PIPE, FUEL 3×5×70 BLACK
(Superseded to V471001201)

$2.49

$

In Stock, Qty 20+

0

4

Echo V471001210

PIPE, FUEL 3×5×90 BLACK
(Superseded to V471001211)

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201056330

PIPE, FUEL RETURN 3×6×90mm

$3.49

$

In Stock, Qty 20+

0

6

Echo 13211546730

GROMMET, FUEL 5

$2.49

$

In Stock, Qty 20+

0

7

Echo 13201103360

CONNECTOR, PIPE

$3.49

$

In Stock, Qty 7

0

8

Echo 13201212361

PIPE
(Superseded to 13201212362)

$4.49

$

In Stock, Qty 19

0

9

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

10

Echo P021014060

CAP ASSY, FUEL
(Superseded to P021014061)

Note: Includes Items 11-12

$11.99

$

In Stock, only 2 left!

0

11

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

12

Echo 13105156030

CONNECTOR, CAP L= 100mm

$1.49

$

In Stock, only 4 left!

0

13

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes Item 14

$29.99

$

In Stock, only 2 left!

0

14

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

15

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

16

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

17

Echo 90014

PIPE, BULK - REPOWER 3×5mm BLACK

$50.99

$

In Stock, Qty 10

0

18

Echo 90017

PIPE, BULK - REPOWER 3×6mm CLEAR

$69.99

$

In Stock, only 3 left!

0
