EB 212 - Shindaiwa Handheld Blower (SN: P37212001001 - P37212999999) FUEL SYSTEM Parts Diagram

Handheld Blower

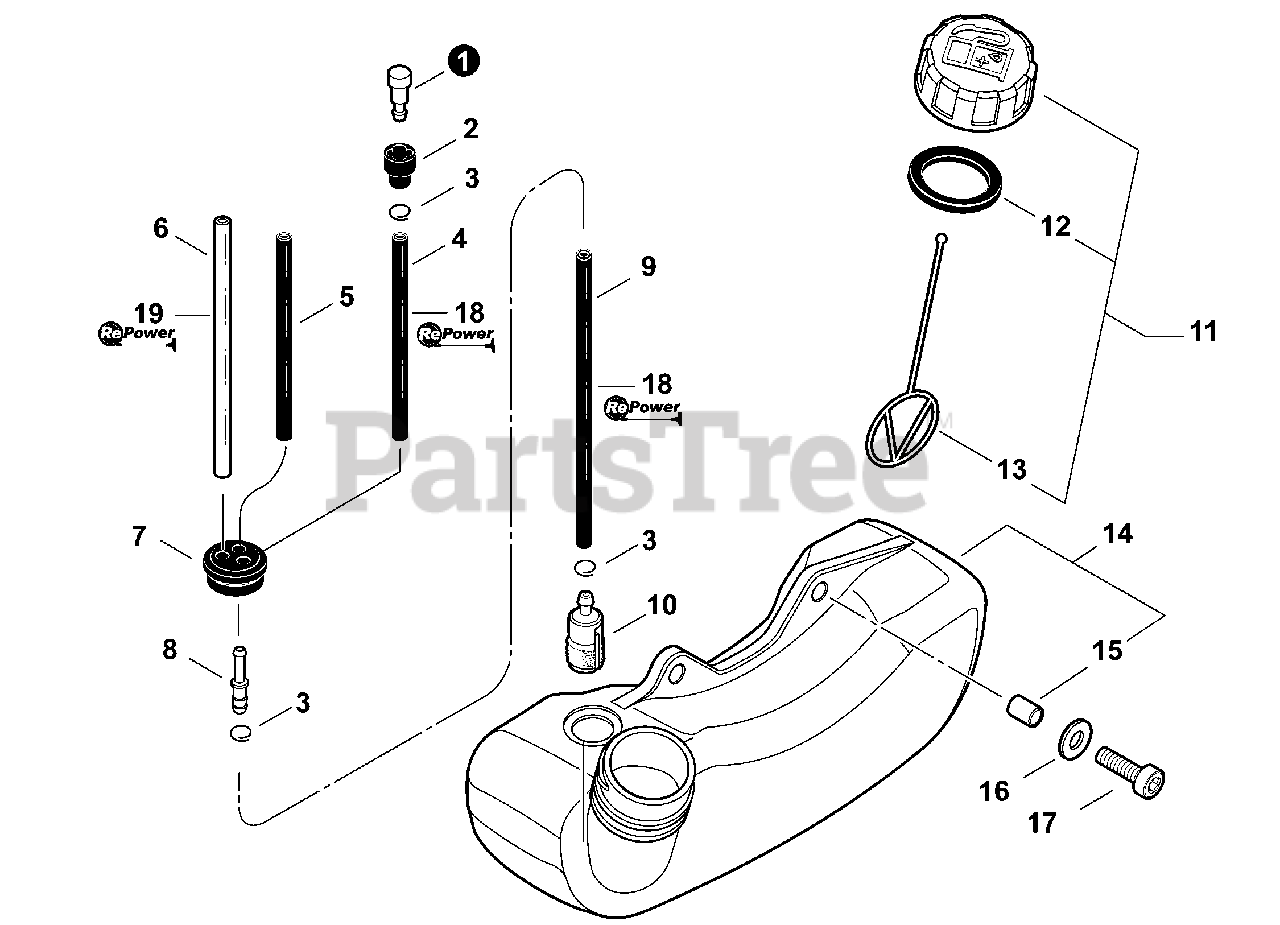

FUEL SYSTEM Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

2

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

3

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 9

0

4

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

5

Echo V471003600

PIPE, FUEL 3×5×87 BLACK
(Superseded to V471005660)

$4.49

$

In Stock, only 3 left!

0

6

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 11

0

7

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

8

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

9

Echo V471003700

PIPE, FUEL 3×5×130 BLACK

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, only 4 left!

0

10

Echo A369000480

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

11

Echo P021040480

CAP ASSY, FUEL

Note: Includes Items 12-13

$5.49

$

In Stock, only 3 left!

0

12

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, only 3 left!

0

13

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

14

Echo A350000640

TANK ASSY, FUEL
(Superseded to A350002540)

Note: Includes Item 15

$29.99

$

In Stock, only 2 left!

0

15

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

16

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 90016205016

BOLT 5×16

$1.49

$

In Stock, Qty 20+

0

18

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

Note: RePower BULK OPTION

$50.99

$

Usually ships in 2-4 days

0

19

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: RePower BULK OPTION

$69.99

$

In Stock, only 1 left!

0
