EB 2510 - Shindaiwa Handheld Blower Carburetor Parts Diagram

Handheld Blower

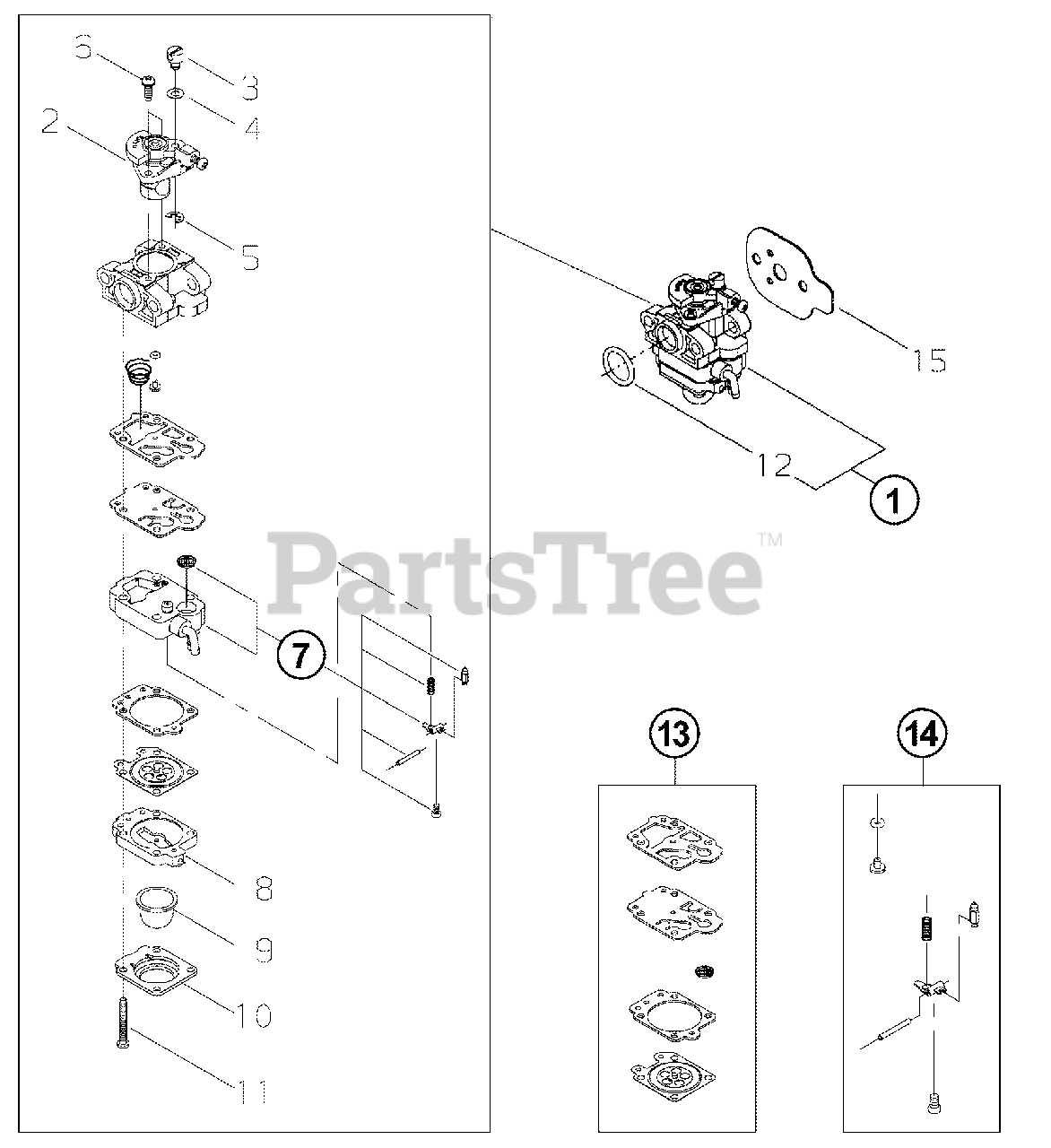

Carburetor Parts Diagram

  • Title

1

Echo 68902-81010

CARBURETOR
(Superseded to A021001960)

$90.99

$

Usually ships in 2-4 days

0

2

Echo 68902-81310

THROTTLE VALVE ASSY

$43.99

$

Usually ships in 2-4 days

0

3

Echo 72933-81450

SWIVEL
(Superseded to 12317245130)

$1.99

$

Usually ships in 2-4 days

0

4

Echo 20089-81185

WASHER
(Superseded to 12314954230)

$0.99

$

Usually ships in 2-4 days

0

5

Echo 20036-81195

RING, RETAINING
(Superseded to 12317307930)

$1.49

$

In Stock, only 1 left!

0

6

Echo 70064-81290

SCREW
(Superseded to 12311444330)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 37076-81320

PUMP BODY ASSY

$

$

Not available

8

Echo 20016-81420

BASE, PURGE
(Superseded to 12318005560)

$8.49

$

In Stock, Qty 8

0

9

Echo 20036-81670

BULB, PURGE
(Superseded to 12318140630)

$5.99

$

In Stock, Qty 20+

0

10

Echo 20016-81510

RETAINER, PURGE BULB
(Superseded to 12314205560)

$4.99

$

In Stock, Qty 8

0

11

Echo 20016-81140

SCREW, PUMP COVER
(Superseded to 12311005560)

$2.49

$

In Stock, Qty 20+

0

12

Echo 20016-81250

O-RING - 15
(Superseded to 90072000015)

$1.99

$

In Stock, Qty 15

0

13

Echo 60902-98030

DIAPHRAGM/GASKET KIT
(Superseded to P050008580)

$39.99

$

In Stock, only 2 left!

0

14

Echo 68902-98310

INLET NEEDLE VALVE KIT

$42.99

$

Usually ships in 2-4 days

0

15

Echo 62901-81211

GASKET
(Superseded to V103001140)

$3.49

$

In Stock, only 2 left!

0
