EB 2510 - Shindaiwa Handheld Blower Throttle Lever Parts Diagram

Handheld Blower

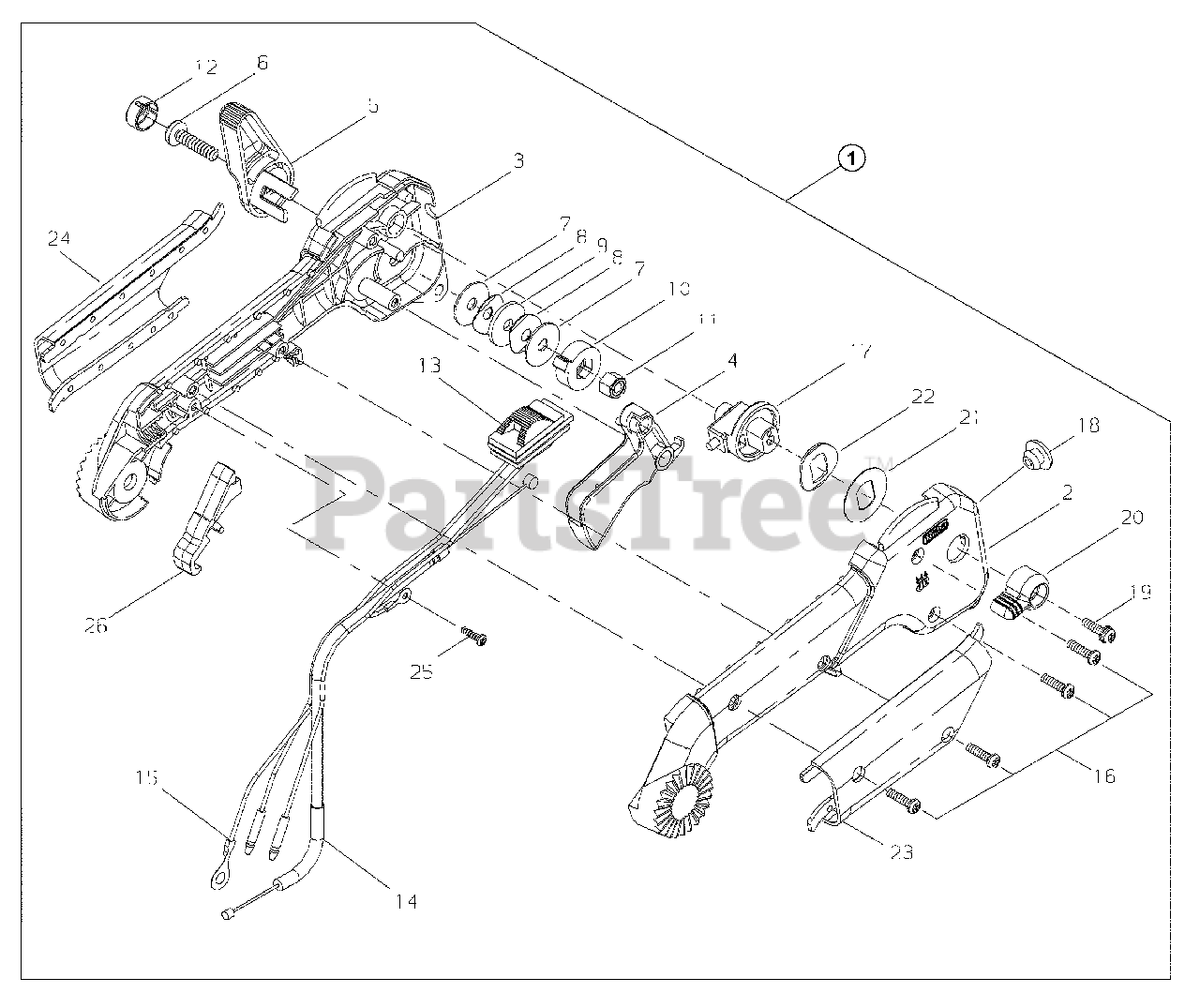

Throttle Lever Parts Diagram

  • Title

1

Echo 68902-84011

THROTTLE LEVER ASSY

$94.99

$

Usually ships in 2-4 days

0

2

Echo 68209-84321

HANDLE, CONTROL - RIGHT
(Superseded to C400000570)

$13.99

$

Usually ships in 2-4 days

0

3

Echo 68209-84331

HANDLE, CONTROL - LEFT
(Superseded to C400000580)

$13.99

$

Usually ships in 2-4 days

0

4

Echo 68209-84340

TRIGGER, THROTTLE
(Superseded to C450000450)

$3.99

$

In Stock, Qty 6

0

5

Echo 68209-84350

LEVER, LOCK
(Superseded to C453000320)

$3.49

$

Usually ships in 2-4 days

0

6

Echo 68209-84360

ADJUSTABLE BOLT
(Superseded to V204000260)

$1.49

$

Usually ships in 2-4 days

0

7

Echo 68209-84370

WASHER - 6
(Superseded to V304000110)

$1.49

$

In Stock, only 1 left!

0

8

Echo 68209-84380

LOCKWASHER
(Superseded to V453000110)

$1.99

$

In Stock, only 1 left!

0

9

Echo 68209-84390

WASHER - 6
(Superseded to V304000120)

$1.49

$

In Stock, only 1 left!

0

10

Echo 68209-84400

PLATE
(Superseded to C472000070)

$2.49

$

In Stock, Qty 5

0

11

Echo 68209-84410

NUT - 6 -- NYLON
(Superseded to V264000080)

$1.49

$

In Stock, only 1 left!

0

12

Echo 68209-84420

CRUISE CONTROL BOLT CAP
(Superseded to V162000330)

$1.99

$

In Stock, only 2 left!

0

13

Echo 68902-84310

SWITCH, IGNITION
(Superseded to A440001330)

$20.99

$

Usually ships in 2-4 days

0

14

Echo 68902-84320

CABLE, THROTTLE

$18.99

$

Usually ships in 2-4 days

0

15

Echo 68902-84330

LEAD - GROUND
(Superseded to V485001270)

$13.99

$

Usually ships in 2-4 days

0

16

Echo 68209-84440

SCREW
(Superseded to V252000070)

$1.49

$

In Stock, Qty 20+

0

17

Echo 68209-84480

ADJUSTER ASSY
(Superseded to C457000010)

$1.49

$

In Stock, only 1 left!

0

18

Echo 68209-84490

PLUG
(Superseded to V162000340)

$1.99

$

In Stock, only 1 left!

0

19

Echo 68209-84500

SCREW, METERING LEVER PIN
(Superseded to V252000080)

$0.99

$

In Stock, only 2 left!

0

20

Echo 68209-84510

SCREW, METERING LEVER PIN
(Superseded to C453000330)

$3.49

$

Usually ships in 2-4 days

0

21

Echo 68209-84520

WASHER
(Superseded to V345000010)

$1.99

$

Usually ships in 2-4 days

0

22

Echo 68209-84530

WASHER - SPRING
(Superseded to V453000120)

$2.49

$

In Stock, only 2 left!

0

23

Echo 68209-84541

GRIP - RIGHT
(Superseded to C412000240)

$17.99

$

Usually ships in 2-4 days

0

24

Echo 68209-84551

GRIP - LEFT
(Superseded to C412000250)

$17.99

$

Usually ships in 2-4 days

0

25

Echo 68209-84561

SCREW - 3
(Superseded to V251000030)

$1.49

$

Usually ships in 2-4 days

0

26

Echo 68902-84340

COVER, HANDLE
(Superseded to C411000100)

$3.99

$

Usually ships in 2-4 days

0
