EB 254 - Shindaiwa Handheld Blower (SN: T10911001001 - T10911999999) Fan Cover Parts Diagram

Handheld Blower

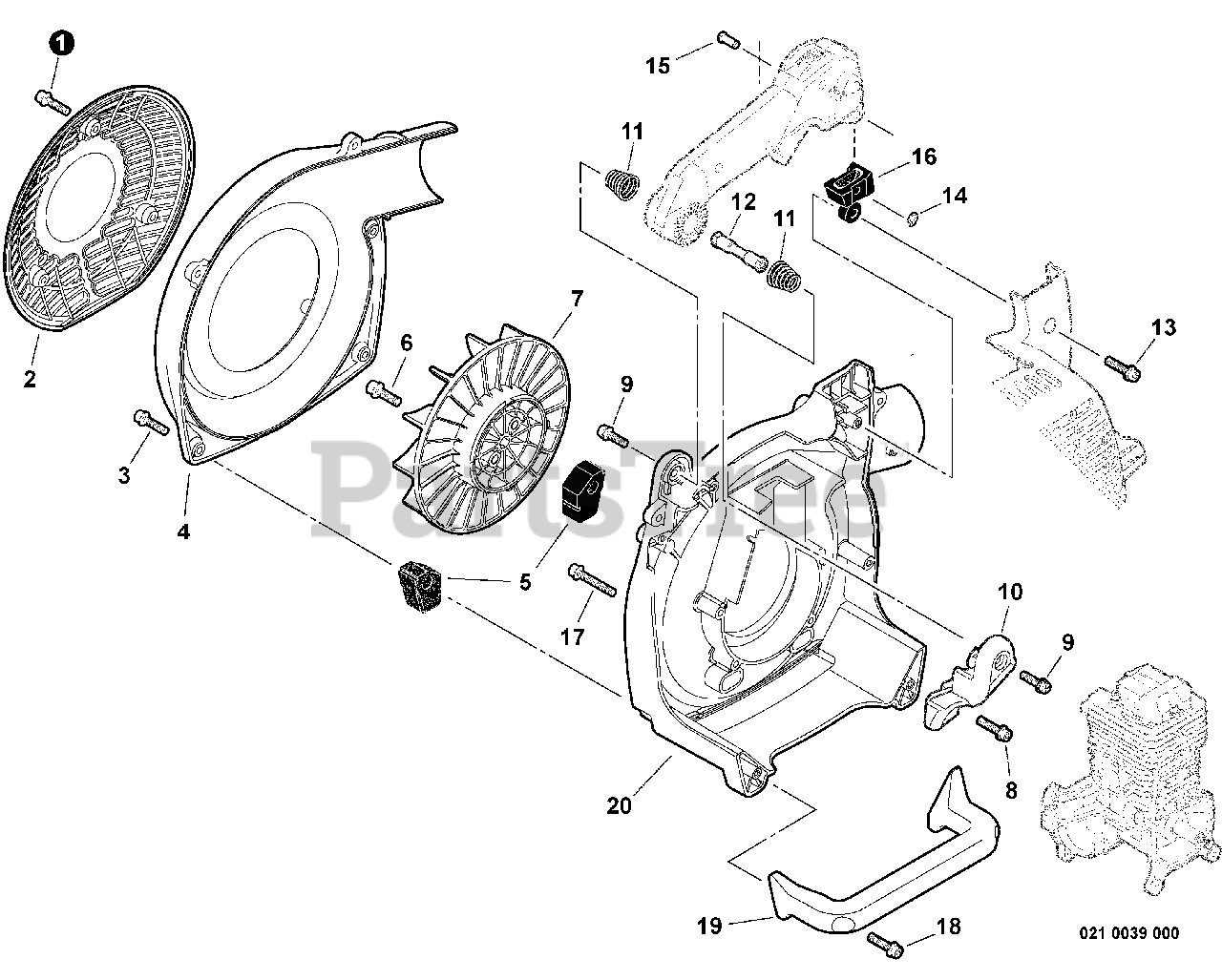

Fan Cover Parts Diagram

  • Title

1

Echo V203000450

BOLT M5×20

$1.99

$

In Stock, Qty 5

0

2

Echo E104000150

COVER, INTAKE

$12.99

$

Usually ships in 2-4 days

0

3

Echo V203000450

BOLT M5×20

$1.99

$

In Stock, Qty 5

0

4

Echo E103000790

COVER, FAN

$42.99

$

Usually ships in 2-4 days

0

5

Echo V420002140

CUSHION

$2.99

$

Usually ships in 2-4 days

0

6

Echo V204000270

BOLT M6×20

$1.99

$

Usually ships in 2-4 days

0

7

Echo E100000120

FAN Ø176.5

$41.99

$

Usually ships in 2-4 days

0

8

Echo V253000450

SCREW 5×20

$

$

Currently unavailable

9

Echo V253000250

SCREW, ADHESIVE M5×16

$1.99

$

Usually ships in 2-4 days

0

10

Echo C411000150

MOUNT, HANDLE

$8.99

$

Usually ships in 2-4 days

0

11

Echo V450000820

SPRING, COIL Ø18×Ø14

$2.99

$

Usually ships in 2-4 days

0

12

Echo V263000100

NUT, HANDLE 5

$13.99

$

Usually ships in 2-4 days

0

13

Echo V203000450

BOLT M5×20

$1.99

$

In Stock, Qty 5

0

14

Echo 9242308000

RING, SNAP 8 MM

$1.49

$

In Stock, only 1 left!

0

15

Echo C226000050

PIN, LOCK

$3.99

$

Usually ships in 2-4 days

0

16

Echo V420002150

CUSHION, AV

$5.49

$

Usually ships in 2-4 days

0

17

Echo V203000530

BOLT M5×40

$1.99

$

Usually ships in 2-4 days

0

18

Echo V203000450

BOLT M5×20

$1.99

$

In Stock, Qty 5

0

19

Echo C410000620

HANDLE, SIDE

$23.99

$

Usually ships in 2-4 days

0

20

Echo E103000960

CASE, FAN

$81.99

$

Usually ships in 2-4 days

0
