EB 254 - Shindaiwa Handheld Blower (SN: T11013001001 - T11013999999) Intake Parts Diagram

Handheld Blower

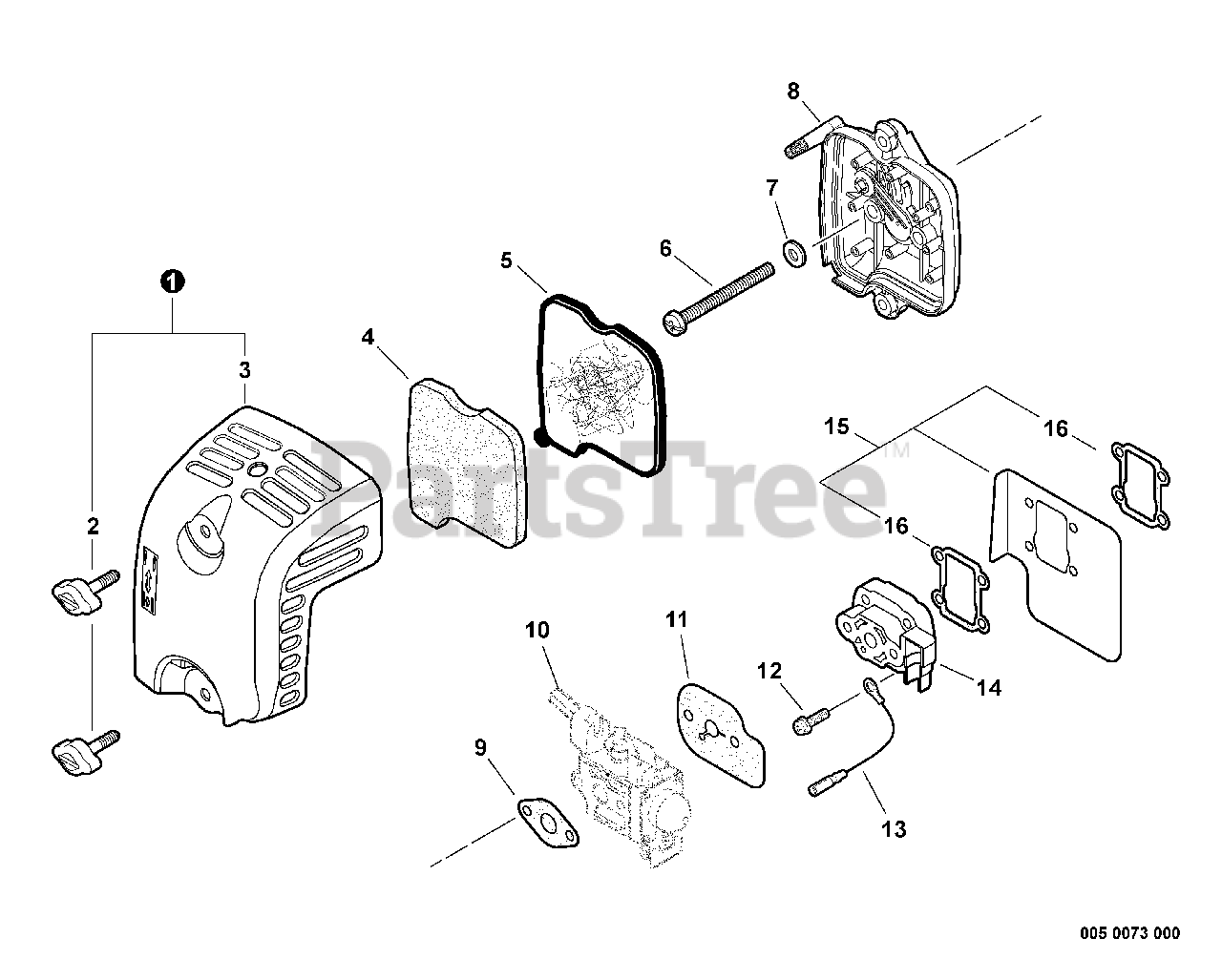

Intake Parts Diagram

  • Title

1

Echo P021028561

AIR FILTER COVER ASSY
(Superseded to P021028562)

Note: Includes ITEMS 2-3

$23.99

$

In Stock, only 2 left!

0

2

Echo V299000400

THUMBSCREW
(Superseded to V299000570)

$7.49

$

In Stock, Qty 9

0

3

Echo A232000911

COVER, AIR FILTER
(Superseded to A232000912)

$8.49

$

Usually ships in 2-4 days

0

4

Echo A226000700

PRE-FILTER -- FOAM

$2.99

$

In Stock, Qty 20+

0

5

Echo A226000690

FILTER, AIR

$19.99

$

In Stock, Qty 7

0

6

Echo 9158105060

SCREW - 5X60

$1.99

$

In Stock, Qty 11

0

7

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

8

Echo A023000271

AIR FILTER CASE ASSY

$10.99

$

Usually ships in 2-4 days

0

9

Echo V103001291

GASKET, INTAKE

$3.49

$

In Stock, Qty 8

0

10

------------------

CARBURETOR

Note: See Carburetor Diagram For Details

$

$

Not available

11

Echo V103001280

GASKET, INTAKE

$2.99

$

In Stock, Qty 19

0

12

Echo 9158205022

SCREW - 5X22

$1.49

$

Usually ships in 2-4 days

0

13

Echo V485001260

LEAD - GROUND

$4.49

$

Usually ships in 2-4 days

0

14

Echo A024000050

INSULATOR ASSY

$51.99

$

Usually ships in 2-4 days

0

15

Echo A209000190

INTAKE SHIELD KIT

Note: Includes ITEM 16

$11.99

$

Usually ships in 2-4 days

0

16

Echo V103001130

GASKET, INTAKE

$1.99

$

In Stock, Qty 8

0
