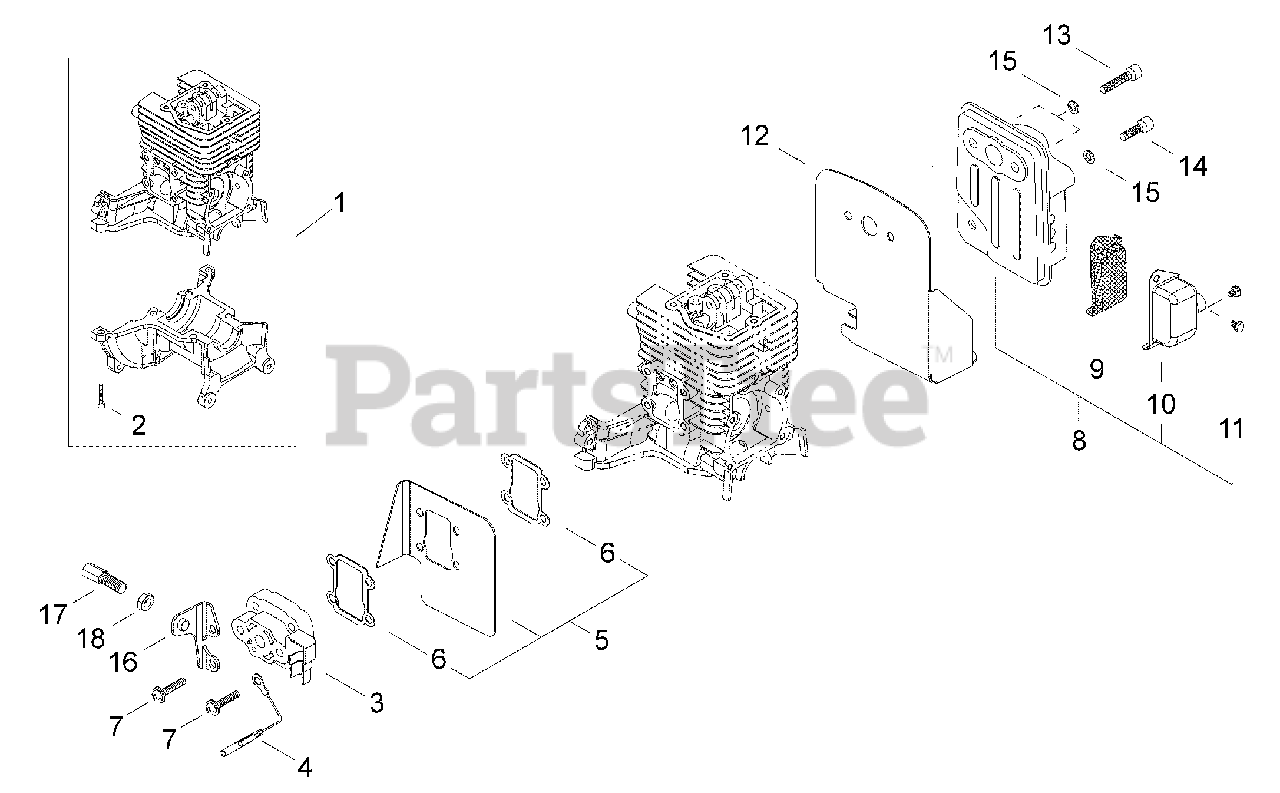

EB 3410 - Shindaiwa Handheld Blower Cylinder, Muffler Parts Diagram

Handheld Blower

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 60907-98330

CYLINDER & CRANKCASE ASSY
(Superseded to P021027540)

$153.99

$

Usually ships in 2-4 days

0

2

Echo 01020-05160

BOLT 5×16
(Superseded to 90010505016)

$1.49

$

Usually ships in 2-4 days

0

3

Echo 62907-12311

INSULATOR WITH REED VALVE
(Superseded to A024000020)

$56.99

$

Usually ships in 2-4 days

0

4

Echo 14350-01101

LEAD - GROUND L= 110 MM
(Superseded to V485001260)

$4.49

$

Usually ships in 2-4 days

0

5

Echo 68906-12310

SHIELD ASSY, INTAKE HEAT
(Superseded to A209000200)

$11.99

$

Usually ships in 2-4 days

0

6

Echo 62901-12220

GASKET, EXHAUST
(Superseded to V103001130)

$1.99

$

In Stock, Qty 8

0

7

Echo 11206-05255

SCREW M5×25
(Superseded to 9158205025)

$1.49

$

Usually ships in 2-4 days

0

8

Echo 68902-15010

MUFFLER ASSY
(Superseded to A030000041)

$114.99

$

Usually ships in 2-4 days

0

9

Echo 62902-15131

SCREEN, SPARK ARRESTER
(Superseded to A310000390)

$3.99

$

Usually ships in 2-4 days

0

10

Echo 68902-15140

GUIDE, EXHAUST
(Superseded to A313001141)

$13.99

$

Usually ships in 2-4 days

0

11

Echo 11204-04060

SCREW M4×6
(Superseded to 9157204006)

$1.49

$

Usually ships in 2-4 days

0

12

Echo 68902-15210

HEAT SHIELD, EXHAUST
(Superseded to V104001001)

$25.99

$

Usually ships in 2-4 days

0

13

Echo 62901-15310

BOLT M5×25
(Superseded to V203001000)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 01020-05160

BOLT 5×16
(Superseded to 90010505016)

$1.49

$

Usually ships in 2-4 days

0

15

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 68902-83310

BRACKET, THROTTLE CABLE
(Superseded to C487000200)

$2.49

$

Usually ships in 2-4 days

0

17

Echo 68902-83320

ADJUSTER, THROTTLE CABLE
(Superseded to C486000010)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 01501-06048

NUT, ADJUSTER LOCK M6
(Superseded to 9201806000)

$1.49

$

Usually ships in 2-4 days

0
