EB 344 - Shindaiwa Handheld Blower (SN: T15813001001 - T15813999999) THROTTLE CONTROL Parts Diagram

Handheld Blower

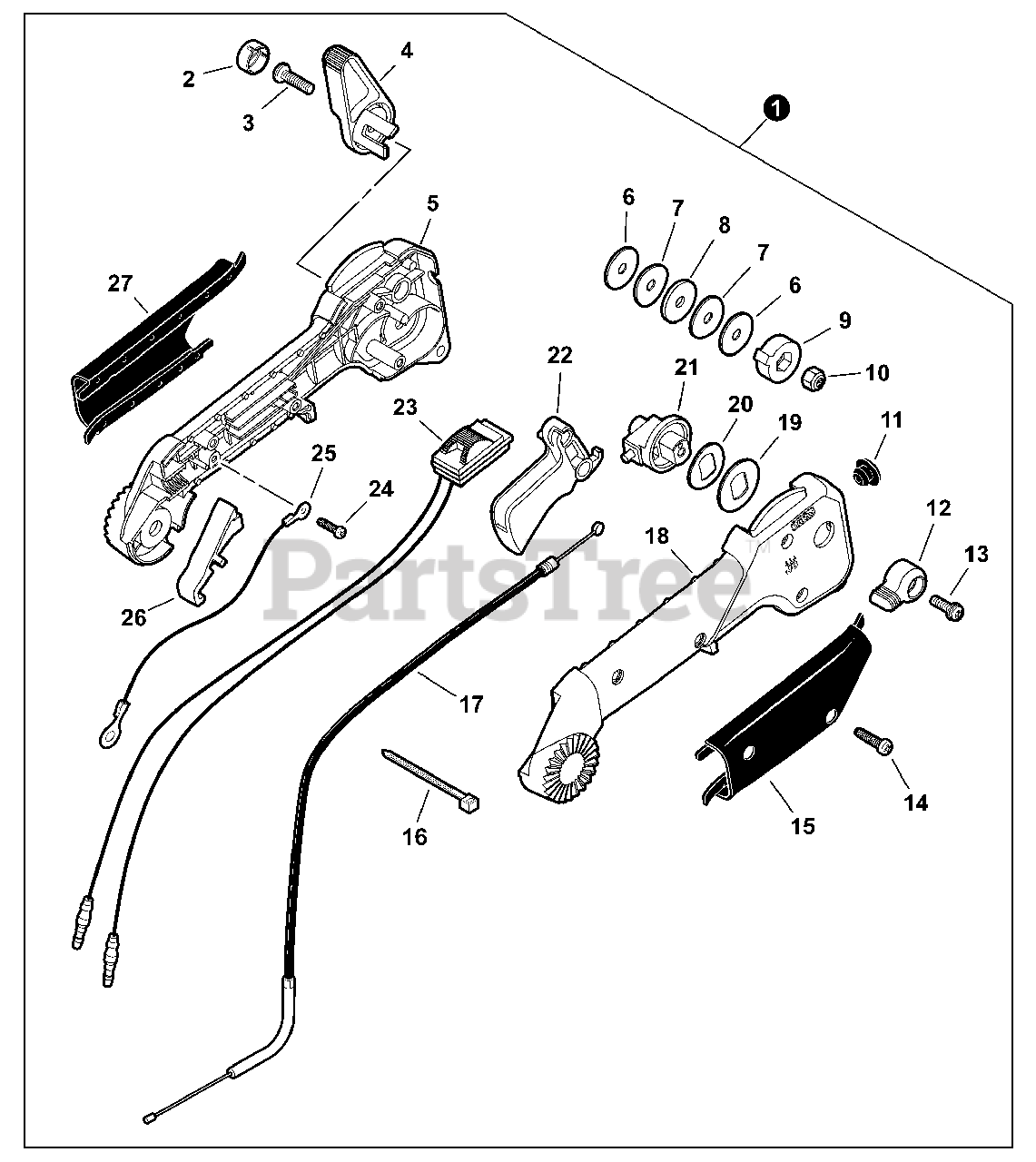

THROTTLE CONTROL Parts Diagram

  • Title

1

Echo C044001210

THROTTLE CONTROL ASSY
(Superseded to C044001212)

Note: Includes Items 2-27

$66.99

$

Usually ships in 2-4 days

0

2

Echo V162000330

CAP, BOLT

$1.99

$

Usually ships in 2-4 days

0

3

Echo V204000260

BOLT, ADJUSTING M6

$1.49

$

Usually ships in 2-4 days

0

4

Echo C453000320

CONTROL, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

5

Echo C400000581

CONTROL HANDLE - LEFT

$12.99

$

Usually ships in 2-4 days

0

6

Echo V304000110

WASHER M6

$0.99

$

Usually ships in 2-4 days

0

7

Echo V453000110

WASHER, SPRING

$1.99

$

Usually ships in 2-4 days

0

8

Echo V304000120

WASHER M6

$0.99

$

Usually ships in 2-4 days

0

9

Echo C472000070

LEVER, THROTTLE

$1.99

$

In Stock, Qty 5

0

10

Echo V264000080

NUT, NYLON M6

$0.99

$

Usually ships in 2-4 days

0

11

Echo V162000340

PLUG, THROTTLE LIMITER

$1.99

$

Usually ships in 2-4 days

0

12

Echo C453000330

LEVER, THROTTLE LIMITER

$2.99

$

Usually ships in 2-4 days

0

13

Echo V252000080

SCREW M4
(Superseded to P022019940)

$0.99

$

Usually ships in 2-4 days

0

14

Echo V252000070

SCREW, HANDLE M4

$0.99

$

In Stock, Qty 20+

0

15

Echo C412000240

GRIP, RIGHT

$15.99

$

Usually ships in 2-4 days

0

16

Echo V495001210

BAND

$0.99

$

Usually ships in 2-4 days

0

17

Echo V430003440

CABLE, THROTTLE

$9.99

$

Usually ships in 2-4 days

0

18

Echo C400000571

CONTROL HANDLE - RIGHT

$12.99

$

Usually ships in 2-4 days

0

19

Echo V345000010

WASHER

$1.99

$

Usually ships in 2-4 days

0

20

Echo V453000120

WASHER, WAVE

$2.49

$

Usually ships in 2-4 days

0

21

Echo C457000010

LIMITER ASSY, THROTTLE

$1.49

$

Usually ships in 2-4 days

0

22

Echo C450000450

TRIGGER, THROTTLE

$3.49

$

In Stock, Qty 9

0

23

Echo A440001330

SWITCH, ON-OFF

$18.99

$

Usually ships in 2-4 days

0

24

Echo V251000030

SCREW M3

$0.99

$

Usually ships in 2-4 days

0

25

Echo V485001270

LEAD - GROUND

$11.99

$

Usually ships in 2-4 days

0

26

Echo C411000100

COVER, HANDLE REAR

$3.49

$

Usually ships in 2-4 days

0

27

Echo C412000250

GRIP, LEFT

$15.99

$

Usually ships in 2-4 days

0
