EB 45 - Shindaiwa Backpack Blower Carburetor Parts Diagram

Backpack Blower

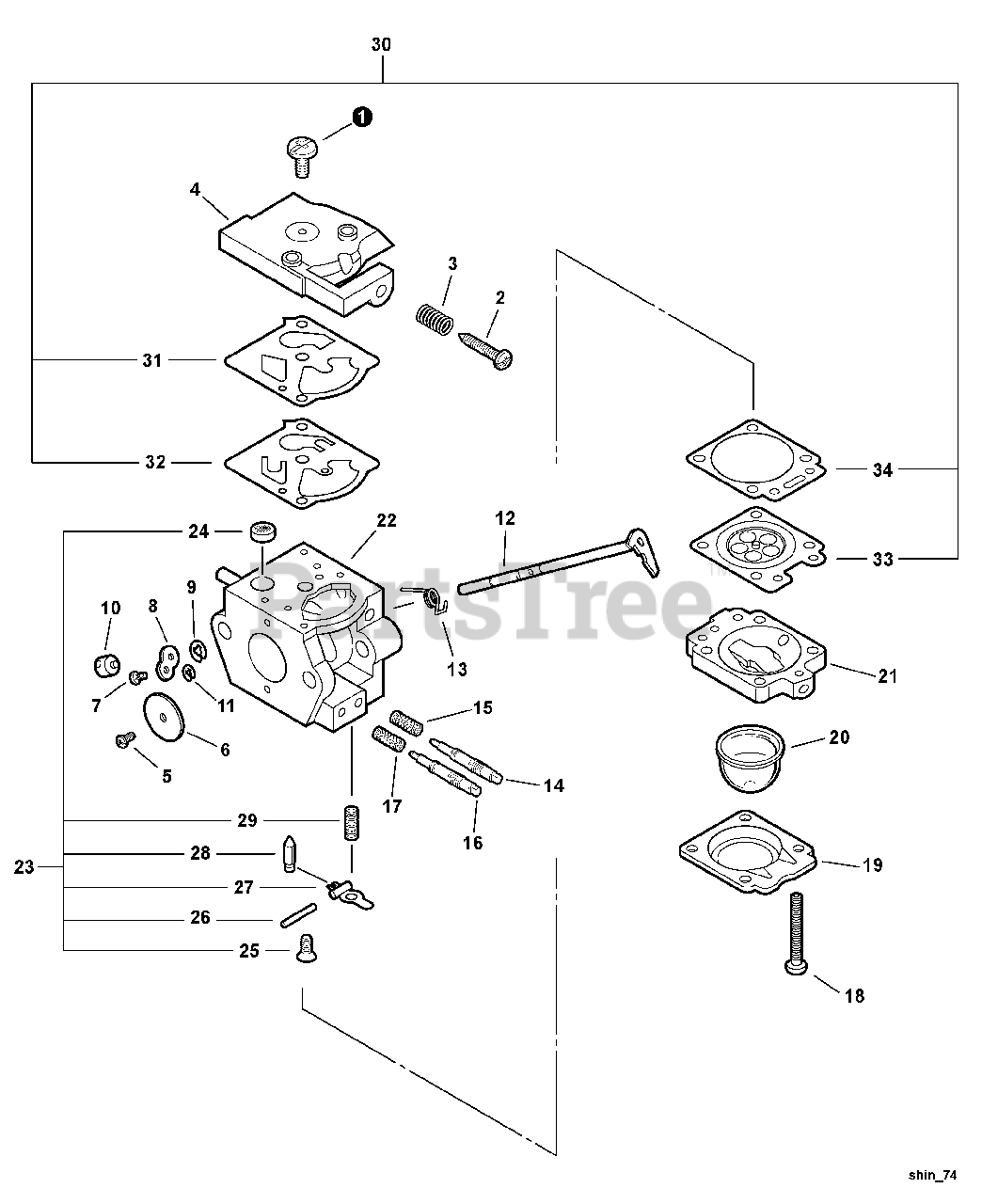

Carburetor Parts Diagram

  • Title

Echo 70029-81000

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

1

Echo 22100-81130

SCREW, PUMP COVER
(Superseded to 12311003930)

$0.99

$

In Stock, only 2 left!

0

2

Echo 70029-83210

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

3

Echo 70029-83220

SPRING, IDLE ADJUST
(Superseded to 12313306320)

$1.99

$

In Stock, only 1 left!

0

4

Echo 70029-81120

PUMP COVER ASSY
(Superseded to 12312424430)

$5.49

$

In Stock, only 1 left!

0

5

Echo 22100-81360

SCREW
(Superseded to 12311403930)

$1.49

$

In Stock, Qty 17

0

6

Echo 22100-81340

VALVE, THROTTLE
(Superseded to 12311603930)

$1.99

$

In Stock, only 4 left!

0

7

Echo 70029-81370

SCREW

$3.99

$

Usually ships in 2-4 days

0

8

Echo 70029-81420

LEVER, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

9

Echo 70029-81460

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

10

Echo 70029-81450

SWIVEL
(Superseded to 12317226030)

$1.99

$

Usually ships in 2-4 days

0

11

Echo 70030-81390

RING, RETAINING
(Superseded to 12312715030)

$0.99

$

In Stock, Qty 10

0

12

Echo 70029-81370

SCREW

$3.99

$

Usually ships in 2-4 days

0

13

Echo 22100-81410

SPRING, RETURN

$0.99

$

In Stock, only 1 left!

0

14

Echo 70029-81170

NEEDLE - LOW SPEED
(Superseded to Discontinued)

$

$

Not available

15

Echo 22100-81160

SPRING
(Superseded to 12312103930)

$1.49

$

Usually ships in 2-4 days

0

16

Echo 70029-81330

NEEDLE - HIGH SPEED
(Superseded to Discontinued)

$

$

Not available

17

Echo 22100-81320

SPRING
(Superseded to 12311903930)

$1.49

$

In Stock, Qty 6

0

18

Echo 22135-81530

SCREW

$1.49

$

Usually ships in 2-4 days

0

19

Echo 22135-81510

RETAINER, PURGE BULB

$3.49

$

Usually ships in 2-4 days

0

20

Echo 70029-81480

BULB, PURGE
(Superseded to 20036-81670)

$5.49

$

In Stock, Qty 20+

0

21

Echo 70029-81470

PURGE BASE ASSY
(Superseded to Discontinued)

$

$

Not available

22

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

23

Echo 99909-140

REPAIR KIT

$7.49

$

Usually ships in 2-4 days

0

24

Echo 70030-81380

STRAINER
(Superseded to 12312610631)

$1.49

$

In Stock, Qty 20+

0

25

Echo 22100-81240

SCREW, METERING LEVER PIN
(Superseded to 12313903930)

$1.49

$

In Stock, only 1 left!

0

26

Echo 22100-81250

PIN, METERING LEVER
(Superseded to 12313803930)

$5.99

$

In Stock, only 4 left!

0

27

Echo 22100-81230

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 2 left!

0

28

Echo 22100-81310

VALVE, INLET NEEDLE
(Superseded to 12313704260)

$3.99

$

Usually ships in 2-4 days

0

29

Echo 22100-81270

SPRING, METERING LEVER
(Superseded to 12312203930)

$

$

Not available

30

Echo 99909-137

DIAPHRAGM/GASKET KIT

$10.99

$

In Stock, Qty 5

0

31

Echo 22128-81150

DIAPHRAGM, PUMP
(Superseded to 12311215030)

$5.99

$

In Stock, Qty 9

0

32

Echo 22128-81140

GASKET, PUMP
(Superseded to 12312515030)

$2.49

$

In Stock, Qty 17

0

33

Echo 22100-81260

DIAPHRAGM, METERING
(Superseded to 12314103930)

$13.99

$

In Stock, Qty 20+

0

34

Echo 22135-81290

GASKET, METERING

$2.99

$

Usually ships in 2-4 days

0
